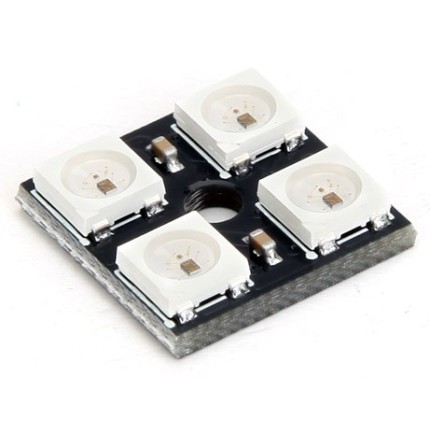

LED Matrix RGB LED 2*2 4-Bit WS2812 Driver Module Board

LED Matrix RGB LED 2*2 4-Bit WS2812 Driver Module Board

The WS2812B RGB LED Development Module is a high-performance, easy-to-use solution for creating full-color lighting projects. Each module integrates an intelligent control IC and RGB LEDs, allowing precise color control, high refresh rates, and reliable operation in a compact form factor.

Package Includes:

  • 1 × WS2812B RGB LED Development Module (15 × 15 mm)

9.45 AED 9.45 AED Tax Included
9.45 AED Tax Included

Not Available For Sale

This combination does not exist.

LED RGB WS2812
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Intelligent reverse polarity protection to prevent IC damage.
  • IC control circuit and LEDs share the same power source.
  • Built-in power-on reset and power-down reset circuit.
  • Each pixel supports 256 brightness levels, achieving 16,777,216 colors with scanning frequency ≥ 400Hz/s.
  • Serial cascade interface allows data reception and decoding through a single signal line.
  • No additional circuitry needed for distances under 5 meters.
  • Supports cascading up to 1024 points at 30 frames/sec refresh rate.
  • Data transmission speed up to 800 Kbps.
  • Highly consistent color, cost-effective.
  • Module size: 15 × 15 mm.

Applications:

  • Full-color LED character string lights, modules, and bar strips.
  • LED guardrails, spotlights, pixel screens, and shaped displays.
  • Various electronic products and electrical equipment marquees.
