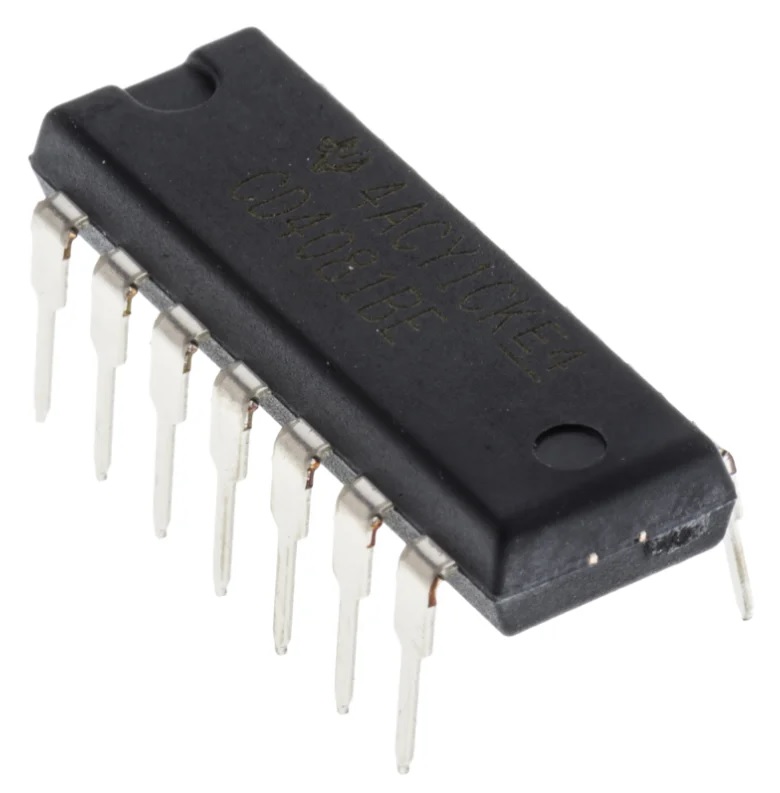

IC Logic Gate CD4081BE Quad 2-Input And Gate

IC Logic Gate CD4081BE Quad 2-Input And Gate

The CD4081 is a CMOS-based logic IC that contains four independent 2-input AND gates. Each gate outputs HIGH only when all its inputs are HIGH, making it ideal for digital logic circuit design. Belonging to the CD4000 series, the CD4081 features low power consumption, wide voltage operation, and high noise immunity.

Package Includes:

  • 1 x CD4081BE Quad 2-Input AND Gate IC

6.30 AED 6.30 AED Tax Included
6.30 AED Tax Included

Not Available For Sale

This combination does not exist.

AND Logic Gate
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications:

  • Technology: CMOS with N- and P-channel enhancement transistors
  • Operating Voltage: +3V to +15V
  • Fan-out: 2 driving 74L or 1 driving 74LS
  • Symmetrical Output: Equal source and sink currents
  • Maximum Input Leakage: 1 μA at 15V (full temperature range)
  • Built-in Protection: Clamping diodes for input static protection
  • Package: DIP-14 (through-hole)

Pinout of CD4081BE:

Pin Name Pin # Type Description
VDD 14 Power Supply Voltage (+3V to +15V)
GND 7 Power Ground (0V)
A1–A4 1, 5, 8, 12 Input Inputs A of the four AND gates
B1–B4 2, 6, 9, 13 Input Inputs B of the four AND gates
Q1–Q4 3, 4, 10, 11 Output Outputs from the four AND gates

How AND Gate Works:

An AND gate outputs HIGH only when all of its inputs are HIGH. Below is the truth table of a 2-input AND gate:

Input A Input B Output Q
0 0 0
1 0 0
0 1 0
1 1 1

Datasheets:

  • CD4081B (Texas Instruments)
  • HEF4081B (Nexperia)
