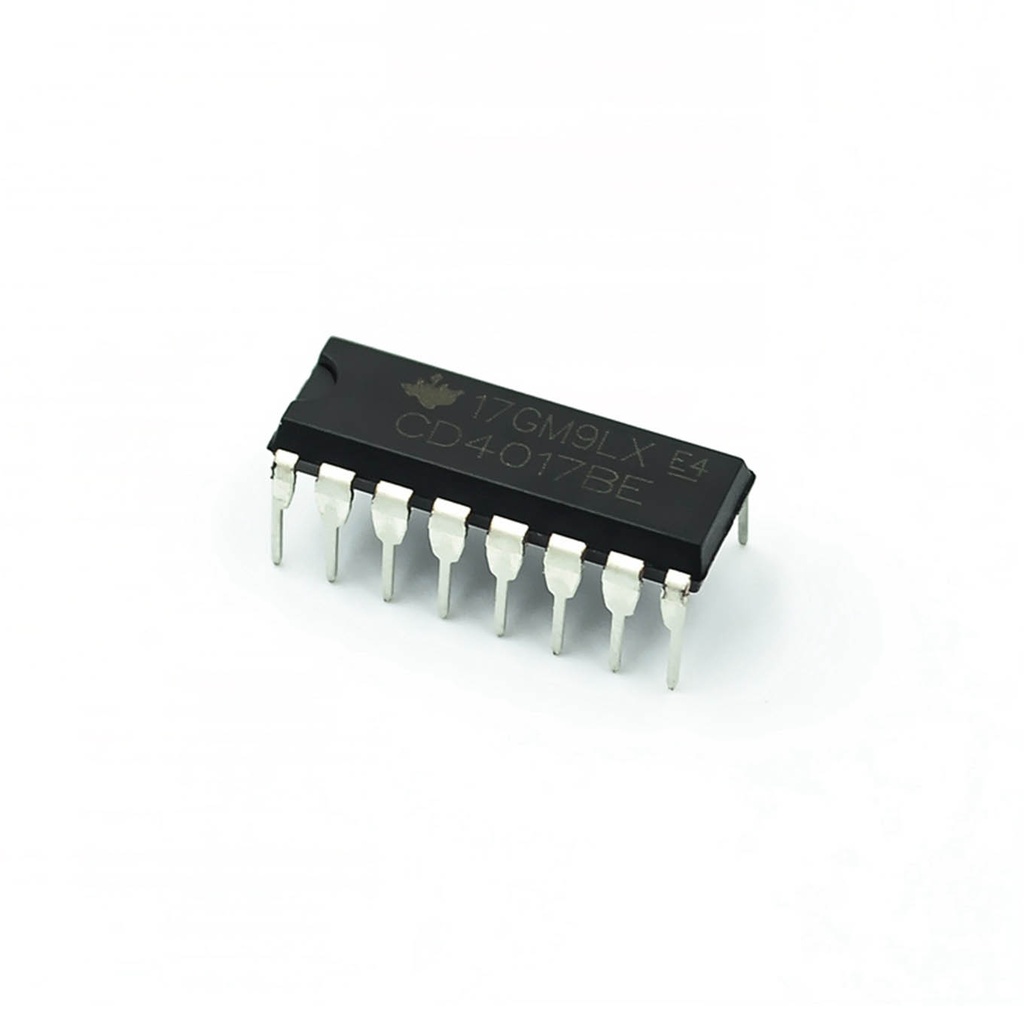

IC Decade Counter CD4017BE DIP-16

IC Decade Counter CD4017BE DIP-16

The CD4017 is a CMOS Decade counter IC ideal for low-range counting applications, counting from 0 to 10. Utilizing this IC simplifies circuit design, saving both board space and design time. With high-speed operation, a wide supply voltage range, and TTL compatibility, it offers versatility in various electronic projects.

Package Includes:

  • 1 x CD4017 CMOS Decade counter IC.

5.25 AED 5.25 AED Tax Included
5.25 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  1. High-speed 16-pin CMOS Decade counter.
  2. Supports 10 decoded outputs for precise counting.
  3. Wide supply voltage range from 3V to 15V, typically operating at +5V.
  4. TTL compatibility ensures seamless integration with other logic circuits.
  5. Maximum Clock Frequency: 5.5MHz, enabling rapid counting operations.
  6. Operating Temperature Range: -55°C to 125°C, suitable for diverse environmental conditions.

Specifications:

  • Supply Voltage Min: 3V
  • Supply Voltage Max: 18V
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C

Pinout:

Pin Number Pin Name Description
1 to 7, 9-11 Output pins Q0 to Q9 These 10 output pins are where the counting occurs.
8 Vss or Ground Connected to the Ground of the circuit.
12 Carry Out (CO) Goes high after the IC counts from 1 to 10, used for carrying while counting.
13 Clock Enable (EN) Input is held high to maintain the current count state.
14 Clock Counting occurs when this clock pulse goes high, often connected to an external timer.
15 Resets Resets the count back to 1 when activated.
16 Vdd / Vcc Connects to the supply voltage, typically +5V.

Applications:

  • LED matrix, LED chaser, and other LED projects.
  • Binary counter or Binary decoder.
  • Dividing by N and counting.
  • Remote metering, automotive, medical electronics.
