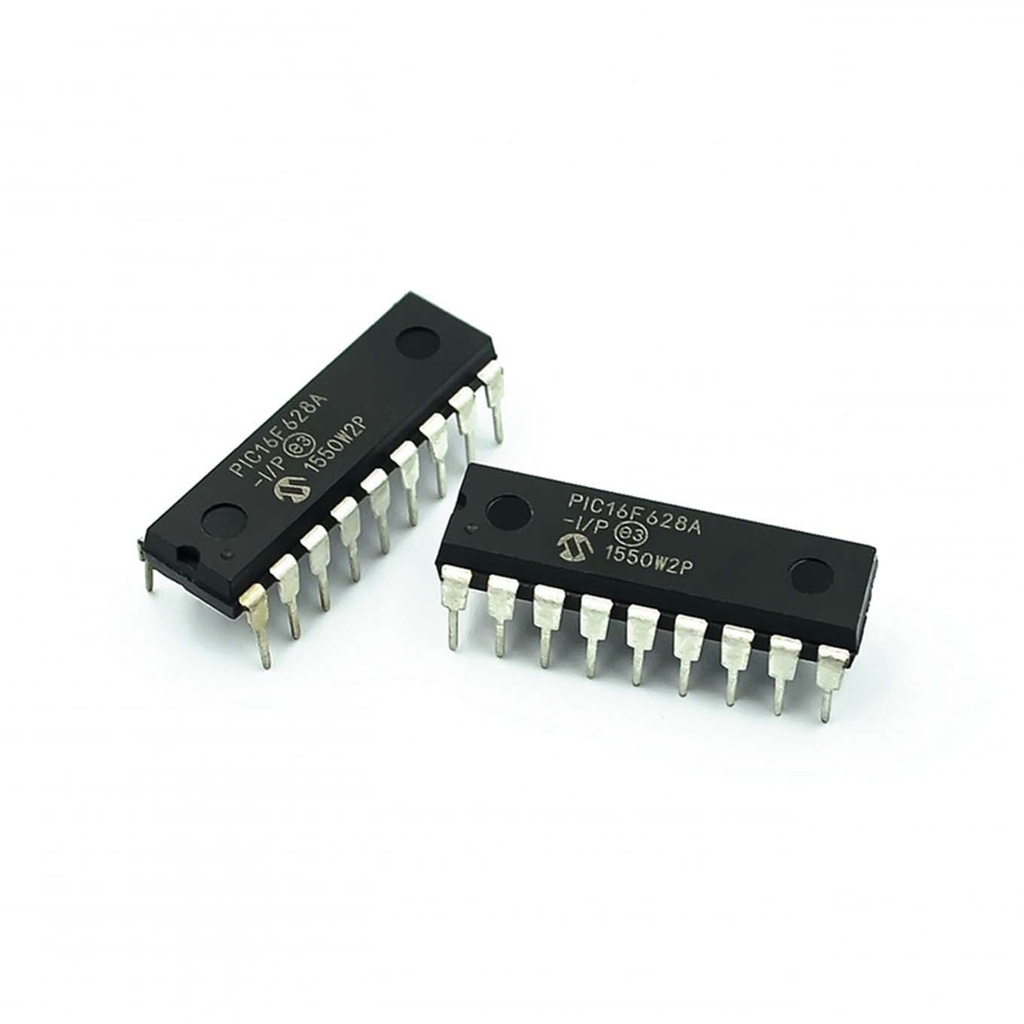

Microcontroller PIC16F628A I/P

Microcontroller PIC16F628A I/P

The PIC16F628A microcontroller, crafted by Microchip, stands out for its blend of power and ease of programming. Operating with remarkable speed (200-nanosecond instruction execution), it is compatible with PIC16F628, PIC16C62XA, PIC16C5X, and PIC12CXXX devices. Featuring a 4MHz internal oscillator, 128 bytes of EEPROM, and a suite of peripherals including a USART, comparators, and a programmable voltage reference, it's well-suited for diverse applications in automotive, industrial, and consumer electronics.

Package Includes:

  • 1 x PIC16F628A microcontroller

12.00 AED 12.00 AED Tax Included
12.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  1. Low Voltage Programming: Enables programming with low voltage, ensuring flexibility and compatibility with various systems.
  2. Low-Speed Clock Mode: Facilitates operations in low-speed clock environments, enhancing adaptability to different working conditions.
  3. Programmable BOR (Brown-out Reset): Ensures system reliability by protecting brown-out conditions.
  4. 4MHz Internal Oscillator: Offers a stable and reliable clock source for precise timing operations.
  5. Programmable VREF (Voltage Reference): Allows customization of voltage references, ensuring accuracy in analog applications.
  6. 128 Bytes of EEPROM: Provides non-volatile memory for data storage, essential for applications requiring persistent data storage.
  7. Data Memory ICD (Integrated Development Environment): Supports integrated development environments, facilitating efficient programming and debugging.
  8. Flash Program Memory: Utilizes flash memory technology for program storage, enabling easy and efficient reprogramming.
  9. Program Memory Size (KB): Offers a generous 3.5 KB of program memory for storing code and instructions.
  10. CPU Speed (MIPS/DMIPS): Operates at a brisk 5 MIPS/DMIPS, ensuring swift execution of instructions.
  11. SRAM (Bytes): Provides 224 bytes of SRAM for temporary data storage, enhancing computational capabilities.
  12. Digital Communication Peripherals: Includes 1 UART for serial communication, enabling interfacing with other devices.
  13. Capture/Compare/PWM Peripherals: Features 1 Input Capture and 1 CCP module, facilitating advanced timing and control functions.
  14. Timers: Equipped with 2 x 8-bit and 1 x 16-bit timers for precise timing and event management.
  15. Number of Comparators: Integrates 2 comparators for analog signal comparison, enabling precise control in analog applications.
  16. Temperature Range (°C): Operates reliably in temperatures ranging from -40°C to 125°C, suitable for harsh environments.
  17. Operating Voltage Range (V): Functions seamlessly within an operating voltage range of 2V to 5.5V, ensuring compatibility with various power sources.
  18. Pin Count: Features 18 pins.

Specifications:

  • Program Memory Type: Flash
  • Digital Communication Peripherals: 1 UART
  • Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP
  • Timers: 2 x 8-bit, 1 x 16-bit
  • Number of Comparators: 2
  • Temperature Range: -40°C to 125°C
  • Operating Voltage Range: 2V to 5.5V
  • Pin Count: 18





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
