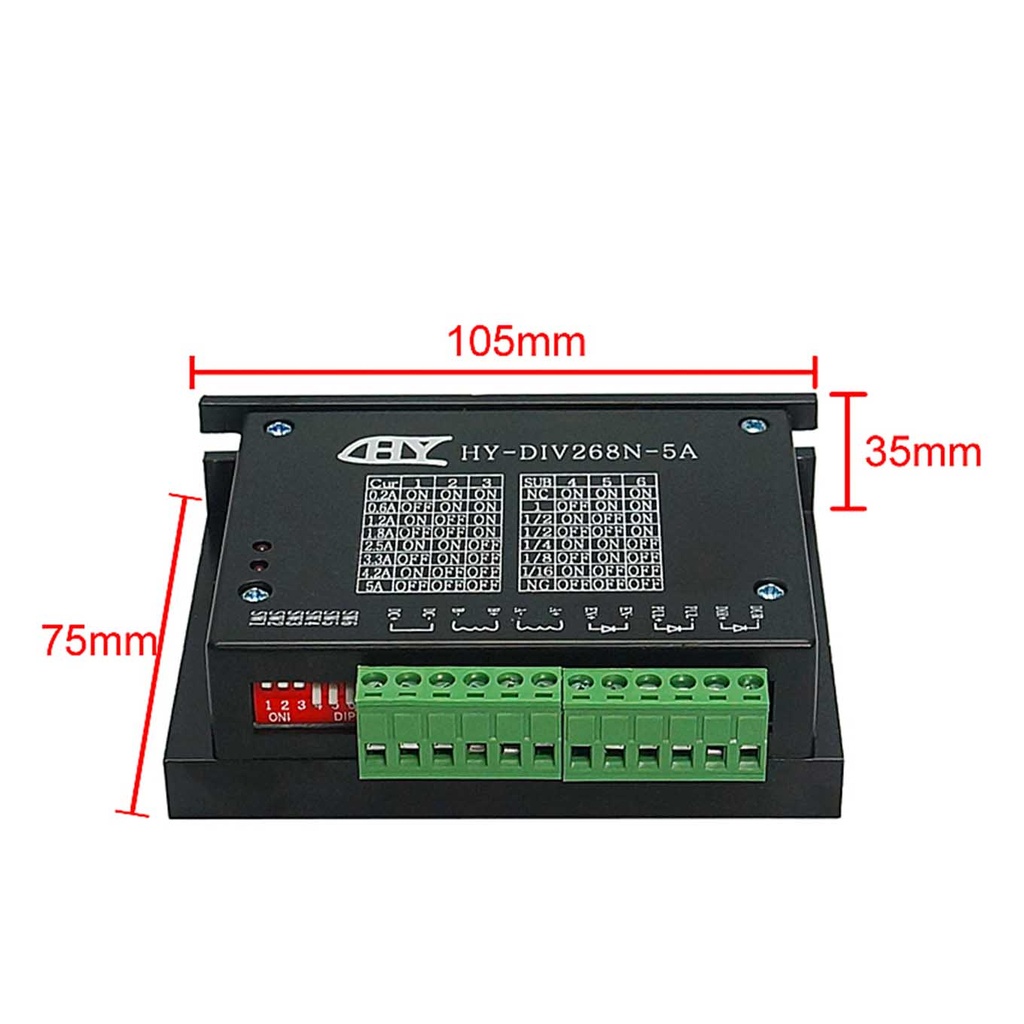

Stepper Motor Driver HY-DIV268N-5A Subdivision Type Two-Phase Hybrid
The HY-DIV268N-5A is a professional two-phase hybrid stepper motor driver featuring the new original imported TB6600 chip. It offers high-speed optocoupler isolation for the interface, automatic half-current reduction to minimize heat generation, and robust protection against overheating, overcurrent, and short circuits. With an output current range of 0.2A to 5A and five selectable subdivision options (1/2/4/8/16), it supports various 28–60mm OD 4-wire, 6-wire, and 8-wire stepper motors with a phase current of 5.0A or below. Ideal for small and medium-sized automation equipment and instruments such as engraving machines, marking machines, and CNC machine tools, it ensures excellent performance in low-cost, low-noise, and low to medium-speed operations. The driver can be cooled through natural or forced air cooling and is suitable for environments with humidity ranging from 40% to 90% RH and preservation temperatures between -20°C to 65°C. Weighing only 0.2 kg, it is designed to withstand vibrations and is suitable for use in various industrial settings.
Package Includes:
- 1 x TB6600 Motor Driver
Features:
- TB6600 Chip: Ensures reliable and efficient performance, providing precise control over stepper motors.
- High-Speed Optocoupler Isolation for Interface: Offers fast and secure signal transmission, preventing signal interference.
- Automatic Half-Current Reduction: Reduces heat generation and improves lifespan during standby.
- Strong Anti-Frequency Interference: Maintains stable operation in diverse environments.
- Input Voltage Anti-Reverse Protection: Prevents damage from reverse polarity voltage input.
- Overheating, Overcurrent, Short Circuit Protection: Comprehensive protection mechanisms ensure safety and longevity.
- Output Current Range: 0.2A to 5A to accommodate a variety of motor setups.
- Selectable Subdivision: 1/2/4/8/16 step options for customized control precision.
- Driving Voltage: DC 12–48V input (recommended 12–36VDC), supports 2.2NM and smaller 57/42 stepper motors.
Specifications:
- Product Model: HY-DIV268N-5A
- Phase Current Compatibility: Up to 5.0A, supports 4-wire, 6-wire, 8-wire motors, 28–60mm OD
- Application: Engraving machines, CNC, marking, cutting, laser phototypesetting, plotters
- Cooling Method: Natural or forced air cooling
- Environment Suitability: Humidity 40–90% RH, storage temperature -20°C to 65°C
- Weight: 0.2 kg
- Vibration Resistance: 10–55Hz/0.15mm

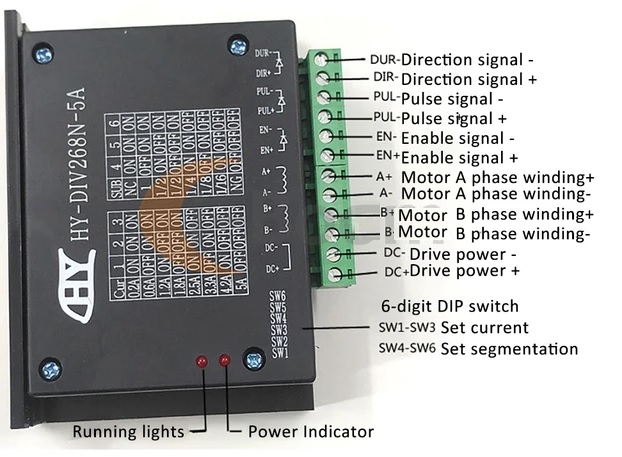

Pinout:
Features:
- TB6600 Chip: Ensures reliable and efficient performance, providing precise control over stepper motors.
- High-Speed Optocoupler Isolation for Interface: Offers fast and secure signal transmission, preventing signal interference.
- Automatic Half-Current Reduction: Reduces heat generation and improves lifespan during standby.
- Strong Anti-Frequency Interference: Maintains stable operation in diverse environments.
- Input Voltage Anti-Reverse Protection: Prevents damage from reverse polarity voltage input.
- Overheating, Overcurrent, Short Circuit Protection: Comprehensive protection mechanisms ensure safety and longevity.
- Output Current Range: 0.2A to 5A to accommodate a variety of motor setups.
- Selectable Subdivision: 1/2/4/8/16 step options for customized control precision.
- Driving Voltage: DC 12–48V input (recommended 12–36VDC), supports 2.2NM and smaller 57/42 stepper motors.
Specifications:
- Product Model: HY-DIV268N-5A
- Phase Current Compatibility: Up to 5.0A, supports 4-wire, 6-wire, 8-wire motors, 28–60mm OD
- Application: Engraving machines, CNC, marking, cutting, laser phototypesetting, plotters
- Cooling Method: Natural or forced air cooling
- Environment Suitability: Humidity 40–90% RH, storage temperature -20°C to 65°C
- Weight: 0.2 kg
- Vibration Resistance: 10–55Hz/0.15mm
Pinout:
