Connector for Motor Driver Parallel Splitting Module

Connector for Motor Driver Parallel Splitting Module

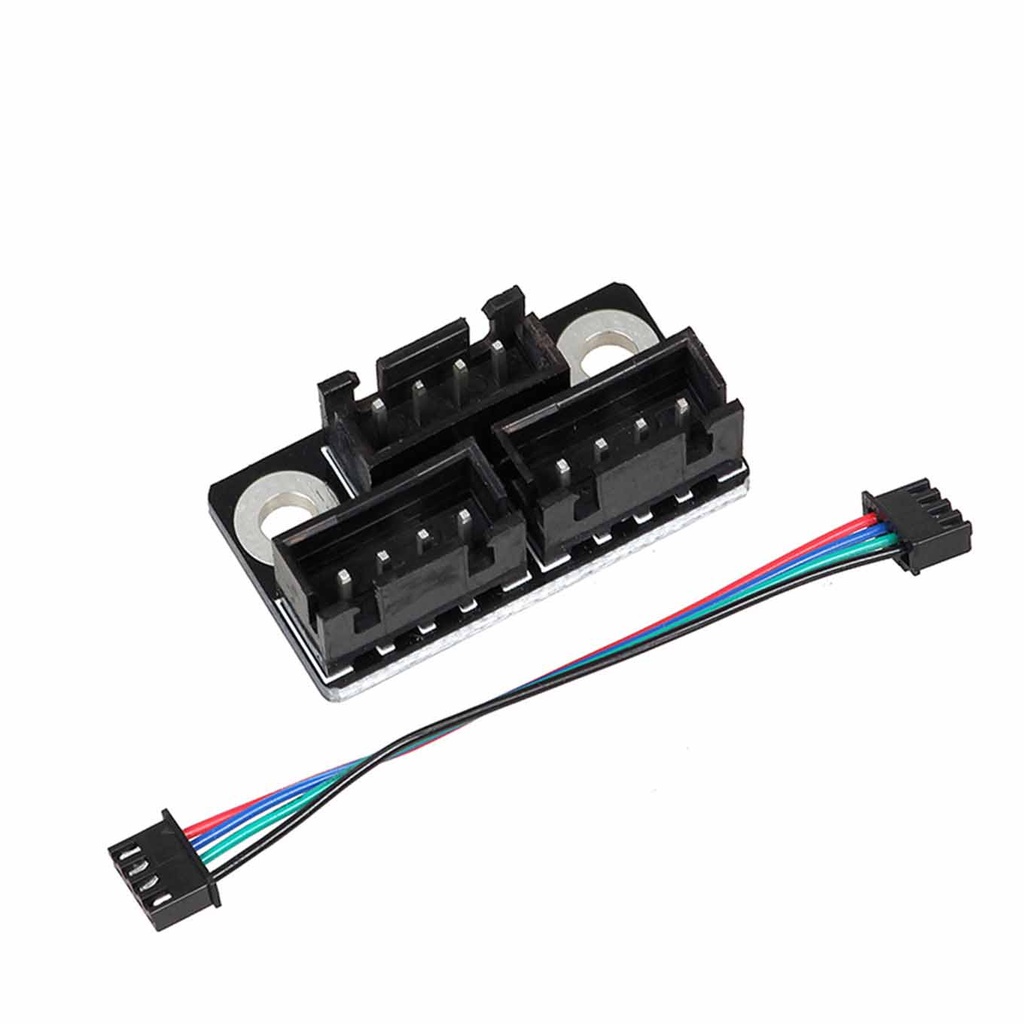

This module is designed for stepper motors and allows one driver to control two motors simultaneously. It's ideal for mini printers and low current motors, using parallel wiring. The adapter is compatible with EZBoard, Creality Boards, MKS Gen L, SKR, and many others that use a standard 4-pin JST connection.

Package Includes:

  • 1 x Module
  • 1 x Cable

11.55 AED 11.55 AED Tax Included
11.55 AED Tax Included

Not Available For Sale

This combination does not exist.

Stepper Driver Only
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Run 2 motors off 1 stepper driver
  • Parallel wiring for dual motor control
  • Compatible with standard 4-pin JST connector boards
  • Suitable for mini printers and low current motors

Installation:

  1. Plug one end of the included cable into your printer's Z motor connection.
  2. Connect the other end to any of the three 4-pin plugs on the adapter board.
  3. Plug your two motors into the remaining two motor posts on the adapter board.
  4. Check if the axis moves smoothly. If not, increase the VREF by 0.1V until motion is smooth.
  5. Secure the board to prevent short circuits. Wrap it with electrical tape or print a case.

Printable Case:

  • Printable Case for the board: Click Here
  • Online viewer for the case: Just Click Here
