Programmer Atmega16/32 Minimum Programming Socket System

Programmer Atmega16/32 Minimum Programming Socket System

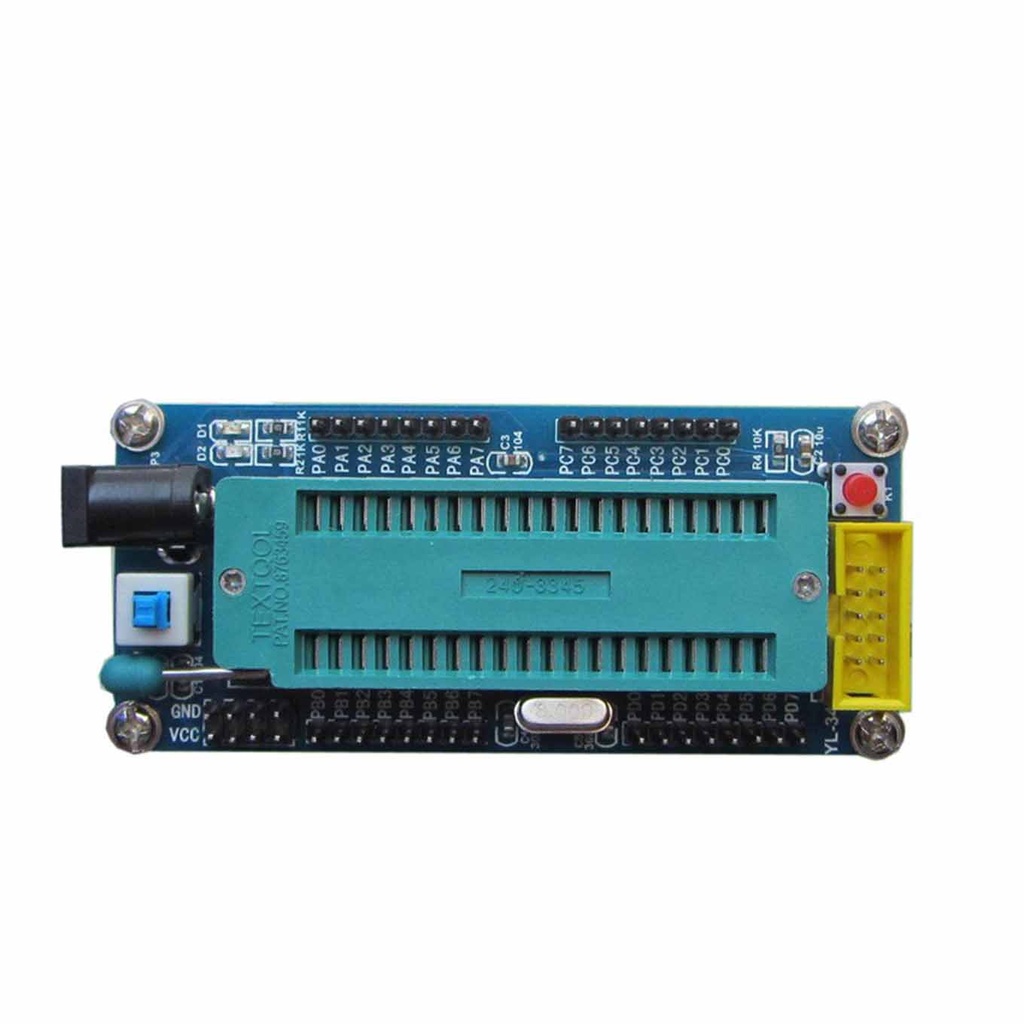

This socket board is an invaluable resource for those delving into the world of Atmega16 and Atmega32 microcontrollers. It serves as a substantial time-saving tool, sparing users the repetitive task of constructing the fundamental circuit for these microcontrollers. Instead, with the simple insertion of the microcontroller chip into the socket, you're poised to employ any USBasp programmer for MCU programming. The board thoughtfully integrates critical components, including the crystal, a reset button, power line capacitors, and two LEDs. These LEDs, identified as the Power indicator (D1) and Program Run indicator (D2), come pre-connected to the MCU. Please bear in mind that the Atmega16/32 microcontroller is not provided with the board.
31.50 AED 31.50 AED Tax Included
31.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Effortless Integration: This socket board eliminates the need for repetitious assembly of the basic circuit for Atmega16 and Atmega32 microcontrollers, streamlining the process.
  • Integrated Components: The board comes complete with crucial components, simplifying your projects. Notably, it features a Power indicator (D1) and Program Run indicator (D2).
  • ISP Interface: A standard ISP pin header interface facilitates effortless connection to any USBasp Programmer.
  • MCU Compatibility: Compatible with ATmega16, ATmega32, or any pin-compatible microcontroller.
  • Power Supply Options: The board supports power supply through a power adapter or an external expansion pin, although it does not accommodate ISP download interface power supply.
  • Reset Functionality: The readily accessible reset button is a practical feature for MCU resets when necessary.
  • LED Indicators: Featuring a Power indicator (D1) and a Program Run indicator (D2), these LEDs provide visual feedback on the board's operational status.

Specifications:

  • I/O Pin Headers: It boasts 32 I/O pin headers, prepped for use without necessitating a breadboard.
  • Crystal Versatility: The board is equipped with an 8MHz crystal, offering flexibility for users to desolder and replace it with a 16MHz or 12MHz crystal to meet specific requirements.
  • Power Connector: A DC-005 Power Connector with a 5.5*2.1mm plug ensures efficient power input.
  • VCC and GND Pin Headers: Four VCC and GND pin headers simplify power distribution.



Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.
