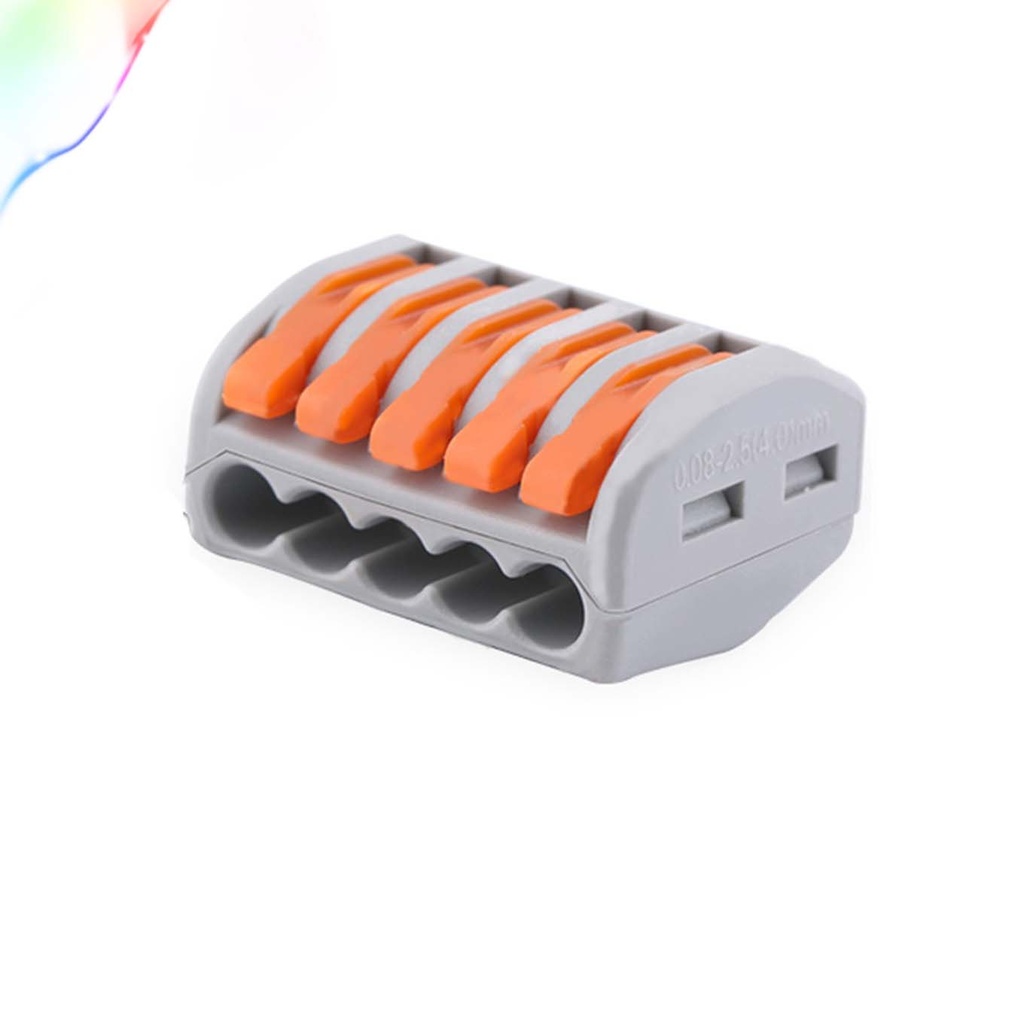

Connector PCT-215 Wire Conductor 5 Terminals Block

Connector PCT-215 Wire Conductor 5 Terminals Block

The PCT215 is a compact splicing connector equipped with levers that redefines simplicity, security, and reliability in wire connections. Say goodbye to the hazards of loose wires and tape embrittlement, as this connector ensures safety with transparent visibility and the ability to measure voltage without the need to remove any tape. The direct plug feature allows for easy connection, and in case of a wrong plug, it can be effortlessly pulled out and reconnected. With independent contact shrapnel for different wire diameters, this connector guarantees safety against shorting.

Package Includes:

  • 1 x PCT215 5 Pole Universal Wire Connector

6.00 AED 6.00 AED Tax Included
6.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Model: PCT215
  • Rated Voltage: 400V
  • Rated Impulse Voltage: 4KV
  • Product Name: 5 Pole Universal Wire Connector
  • Model Number: 222-415
  • Material of Insulation: Modified Nylon (PA66)
  • Contact Material: Phosphor Copper
  • Wire Cross Section: 0.08–2.5mm² (Single Hard Wire), 0.08–4mm² (Multi Soft Wire)
  • Color: Grey + Orange
  • Rated Current: 32A
  • Rated Power: 7KW
  • Gauge: 28~12 AWG
  • Strip Length: 9 - 10mm

How to Use:

  1. Lift the lever to open the connector.
  2. Insert the stripped wire ends into the corresponding slots based on wire diameter.
  3. Close the lever to secure the connection.
  4. To measure voltage, simply use a testing tool without the need to remove any tape.
  5. In case of a wrong connection, pull out the plug and reinsert it correctly.





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
