Connector PCT-215 Wire Conductor 5 Terminals Block

Connector PCT-215 Wire Conductor 5 Terminals Block

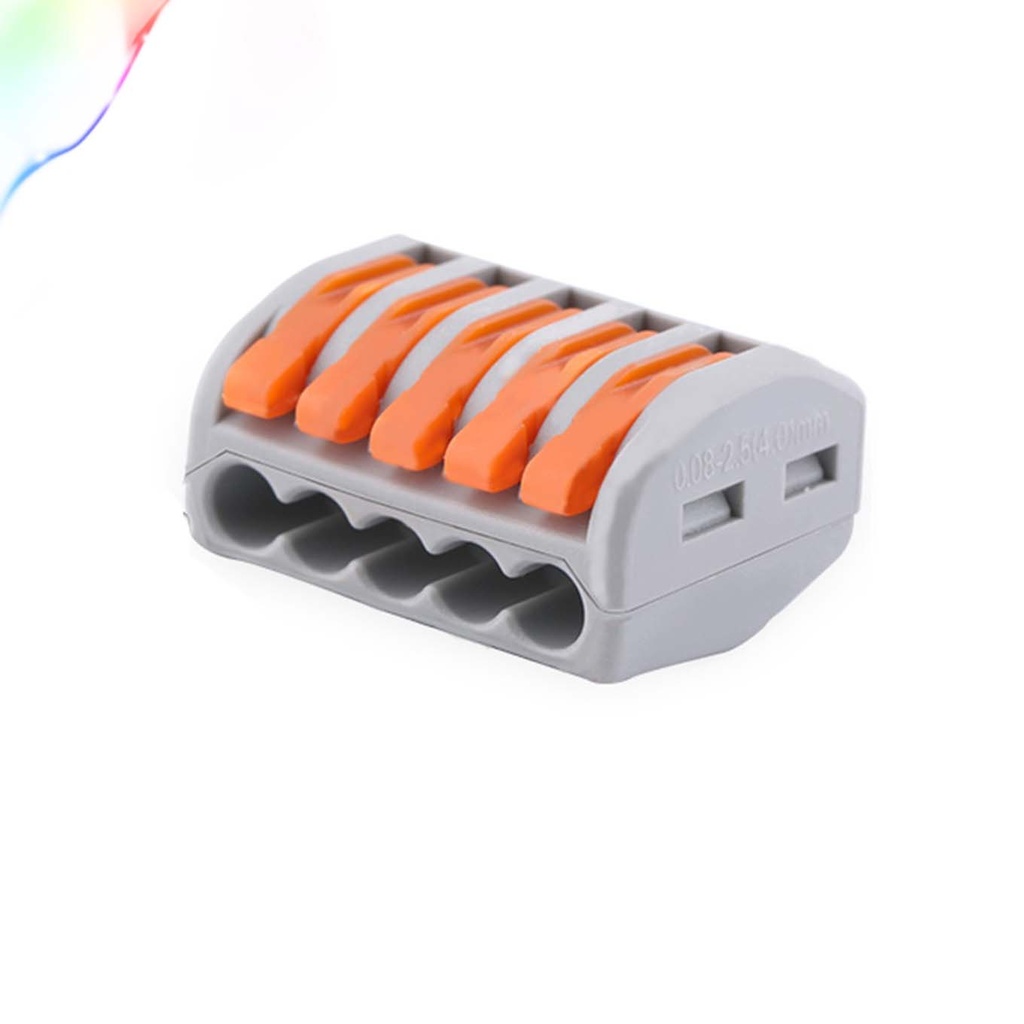

The PCT215 is a compact splicing connector equipped with levers that redefines simplicity, security, and reliability in wire connections. Say goodbye to the hazards of loose wires and tape embrittlement, as this connector ensures safety with transparent visibility and the ability to measure voltage without the need to remove any tape. The direct plug feature allows for easy connection, and in case of a wrong plug, it can be effortlessly pulled out and reconnected. With independent contact shrapnel for different wire diameters, this connector guarantees safety against shorting.

Package Includes:

  • 1 x PCT215 5 Pole Universal Wire Connector

6.00 AED 6.00 AED Tax Included
6.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Model: PCT215
  • Rated Voltage: 400V
  • Rated Impulse Voltage: 4KV
  • Product Name: 5 Pole Universal Wire Connector
  • Model Number: 222-415
  • Material of Insulation: Modified Nylon (PA66)
  • Contact Material: Phosphor Copper
  • Wire Cross Section: 0.08–2.5mm² (Single Hard Wire), 0.08–4mm² (Multi Soft Wire)
  • Color: Grey + Orange
  • Rated Current: 32A
  • Rated Power: 7KW
  • Gauge: 28~12 AWG
  • Strip Length: 9 - 10mm

How to Use:

  1. Lift the lever to open the connector.
  2. Insert the stripped wire ends into the corresponding slots based on wire diameter.
  3. Close the lever to secure the connection.
  4. To measure voltage, simply use a testing tool without the need to remove any tape.
  5. In case of a wrong connection, pull out the plug and reinsert it correctly.
