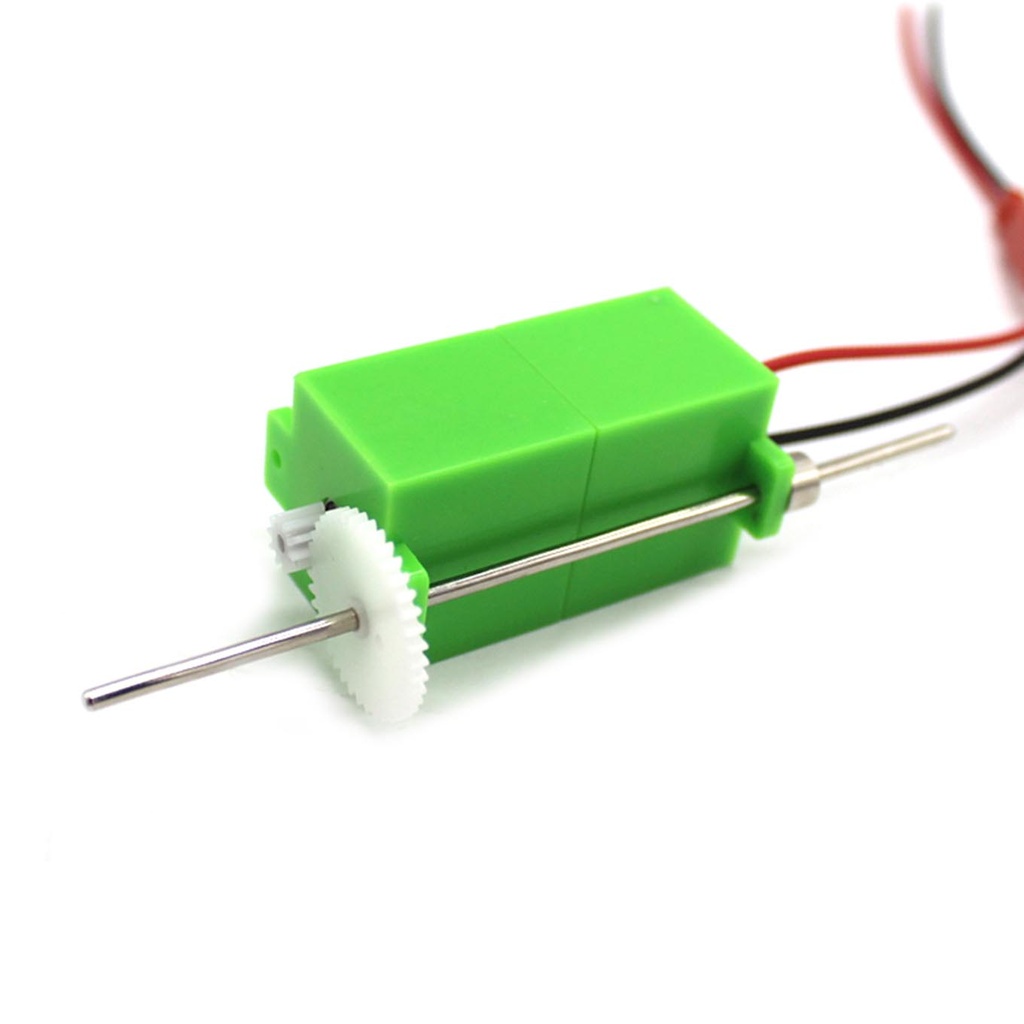

Motor Dc Green Box 180 Reducer Gear Motor



This double shaft reducer motor uses the 180 carbon brush motor model and features a 2mm diameter axle on both ends. Designed with an ABS plastic shell and JST terminal wiring, it is ideal for small DIY robotic and mechanical projects requiring bidirectional output. It operates in a voltage range of 3V to 7V (6V recommended) and offers good speed-torque characteristics for lightweight applications.

Package Includes:

  • 1 x Double Shaft Reducer Motor with JST Terminal

19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

  • Motor Type: 180 Carbon Brush Motor
  • Voltage Range: 3V – 7V (Recommended: 6V)
  • Double Shaft: 2mm diameter, axial length 100mm
  • Current & Speed (3V): 0.45A, 2000 RPM
  • Stall Current (3V): 1.25A
  • Current & Speed (6V): 0.82A, 4000 RPM
  • Stall Current (6V): 2.01A
  • Terminal Type: JST Terminal Wire
  • Shell Size: 45 × 19 × 24 mm
  • Material: ABS Plastic (RoHS Compliant)
