Heatsink Thermal Conductive Paste

Features:

• Excellent thermal conductivity: Enables efficient heat transfer from the heat source to the heat sink.
• Wide temperature range: Operates between -60°C to 200°C, with short-term resistance up to 300°C.
• Short curing time: Quick surface curing and strong adhesion make it convenient for use.
• Elastic bonding: Provides reliable heat dissipation and insulation.
• Non-toxic & solvent-free: Safe for users and the environment.
• Long shelf life: Can be stored for up to 12 months without degrading.
• Versatile usage: Applicable in electronics, electrical appliances, instruments, and more.

Specifications:

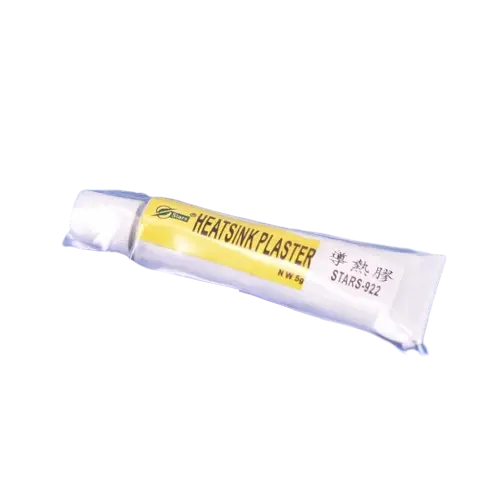

• Product Name: Heatsink Thermal Conductive Plaster Star 922
• Composition: One-component silica gel
• Thermal Conductivity: 2.2 W/mK
• Thermal Resistance: < 0.15°C-in²/W
• Operating Temperature: -60°C to 200°C
• Short-term Heat Resistance: Up to 300°C
• Surface Curing Time: 5–10 minutes
• Adhesion Strength: 1.5 – 2.5 MPa
• Dielectric Strength: 20 kV/mm
• Volume Resistivity: 3 × 10¹³ Ω·cm
• Shelf Life: 12 months
• Package: 1 tube (30g)

Applications:

• Electronics: Bonding heatsinks to CPUs, GPUs, and power transistors for thermal management.
• Electrical appliances: Used in devices like refrigerators and air conditioners to enhance cooling efficiency.
• Instruments: Improves heat dissipation in amplifiers and audio equipment, ensuring better performance.

How to Use:

1. Clean the surface of the heatsink using alcohol.
2. Extrude a small amount of the plaster and apply it evenly onto the surface.
3. Recommended application thickness: 0.1–0.5mm for optimal performance.
4. Seal the tube immediately after use to prevent contamination.
5. Curing time may vary based on humidity and temperature.
