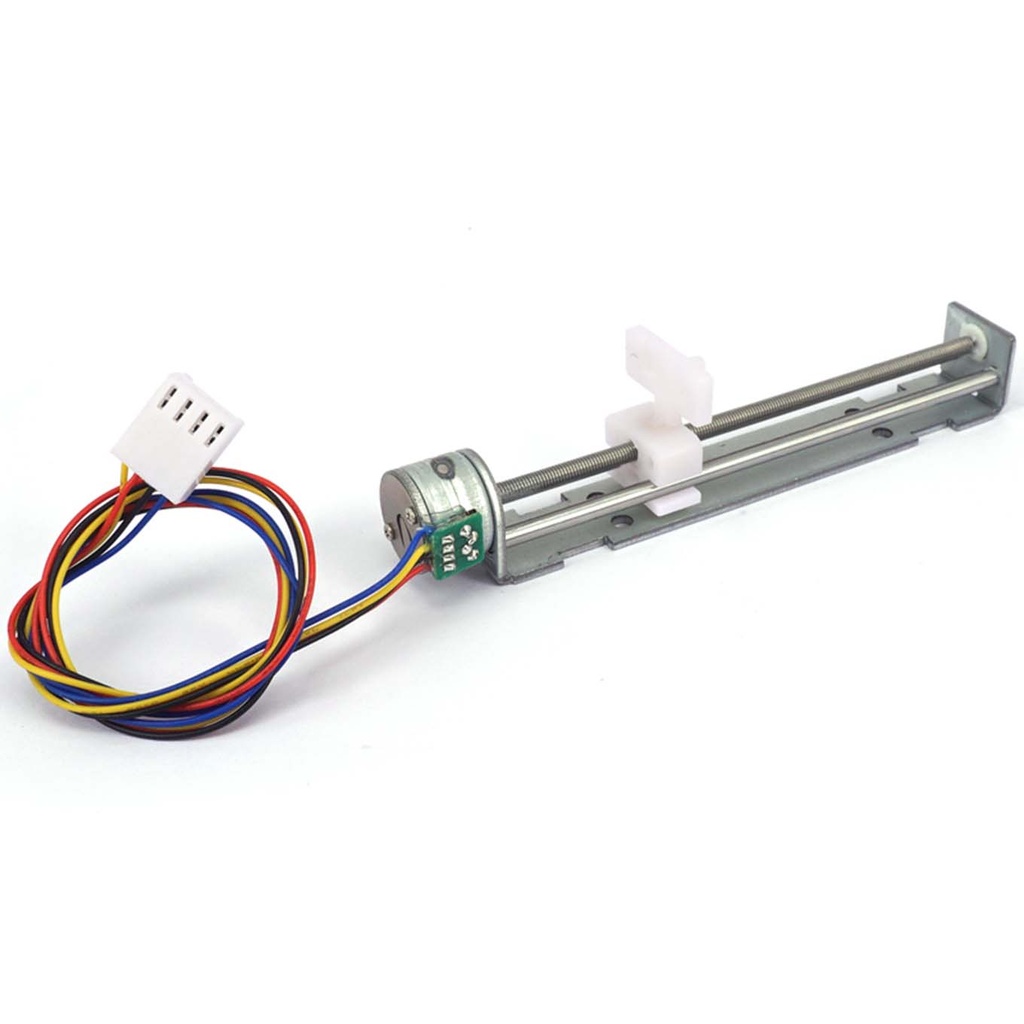

Stepper Motor Micro 2Phase 4Wires With Slider For 3D Printer

Stepper Motor Micro 2Phase 4Wires With Slider For 3D Printer

This is a DC 2-phase 4-wire step angle 18 degrees micro stepper motor screw rod slider designed for DIY engraving machines with a driving voltage of 4-9V.

Package Includes:

1 x Stepper Motor Micro 2-phase 4-wire with Slide Table for 3D Printer

129.15 AED 129.15 AED Tax Included
129.15 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Motor type: 2-phase 4-wire system
  • Drive voltage: 4-9V / 100–500mA (higher voltage increases force and heat)
  • Screw length: 90mm
  • Slider stroke: 80mm
  • Motor diameter: 15mm
  • Screw diameter: 3mm
  • Screw pitch: 0.5mm
  • Step angle: 18 degrees
  • Phase resistance: 15.5 ohms
  • Size: 15 × 105 mm

Pinout of the Motor:

Blue A+, Black A-, Red B+, Yellow B-
