Switch With Light Boat Power Switch 15*21 Rocker 2 Block 3 Foot

Switch With Light Boat Power Switch 15*21 Rocker 2 Block 3 Foot

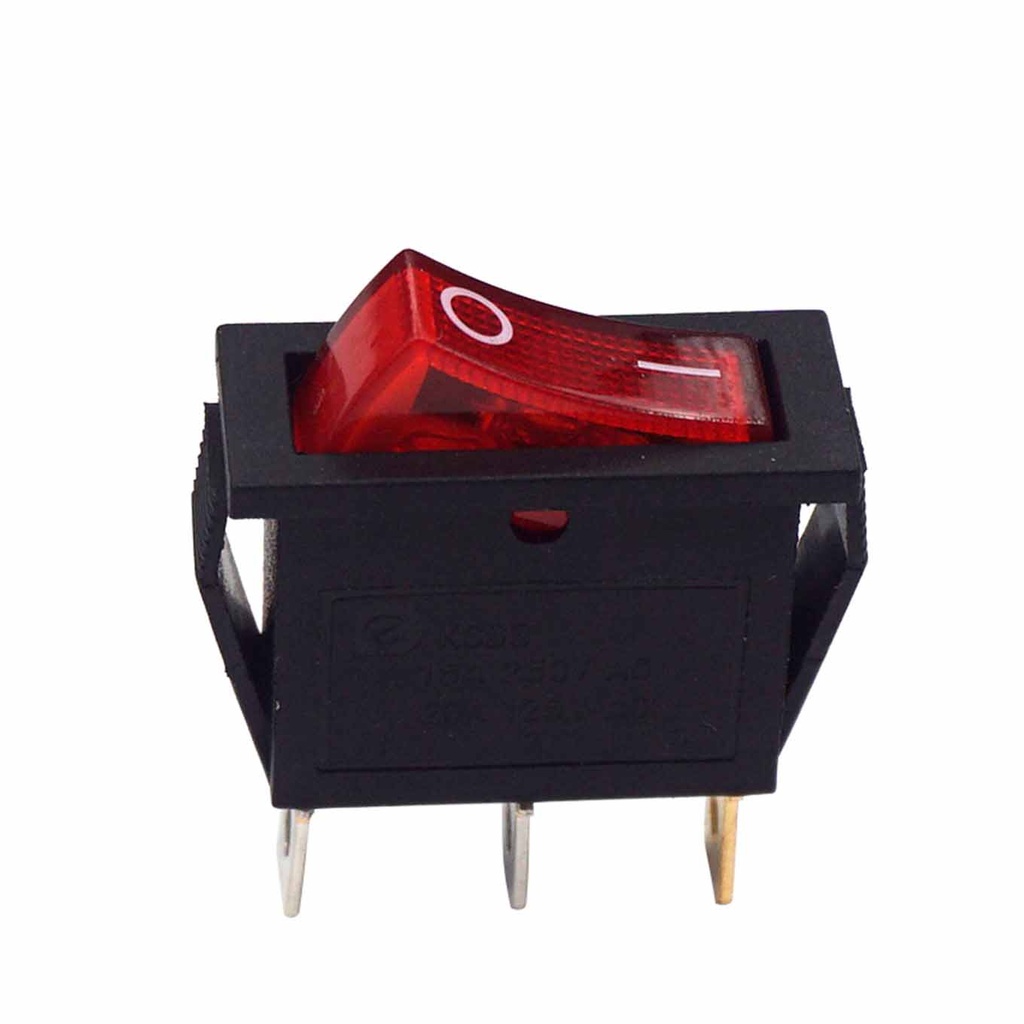

The Boat Type Rocker Power Switch (Model: KCD3-101-3P) is a reliable and durable switch designed for easy ON/OFF operation. It features a compact size of 30 x 13.5 mm with a cut-out size of 28 x 10.5 mm, making it suitable for various panel installations. Rated for 16A at 250V AC and 20A at 125V AC, this switch operates safely up to 85°C. It has two positions (ON/OFF), a green illuminated button for clear status indication, and uses sturdy 3-pin copper terminals to ensure secure electrical connections.
11.55 AED 11.55 AED Tax Included
11.55 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications:

  • Model: KCD3-101-3P
  • Size: 30 x 13.5 mm
  • Cut-Size: 28 x 10.5 mm
  • Voltage and Current: 16A 250V AC / 20A 125V AC
  • Operating Temperature: 85°C
  • Positions: 2 (ON / OFF)
  • Color: Green Button with Light
  • Terminals: 3-Pin Copper Contact
