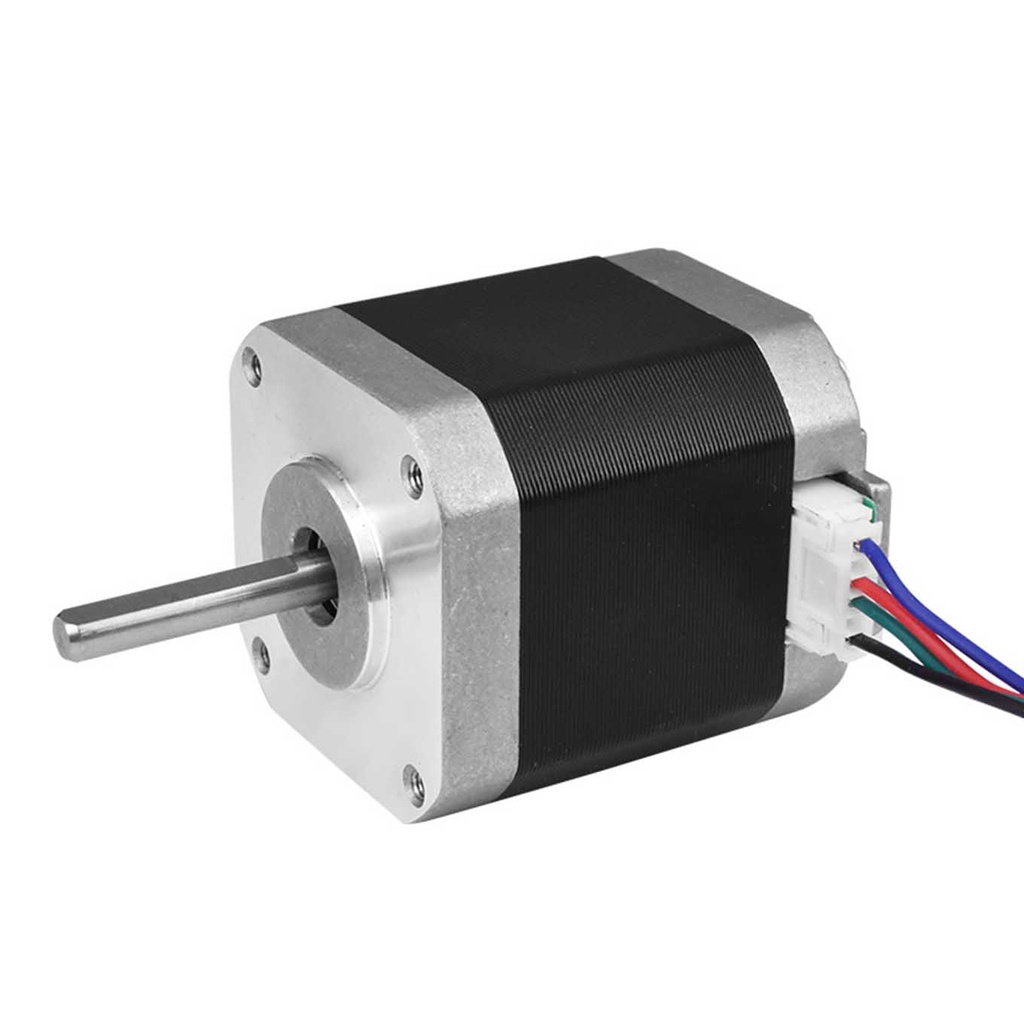

Stepper Motor Nema17 17hs8401 For 3D Printer With Cable

Stepper Motor Nema17 17hs8401 For 3D Printer With Cable

The 17HS8401 is a 48mm Nema 17 stepper motor (42 motors) rated at 1.8A with a holding torque of 52N. It features a 4-lead connection, making it suitable for CNC machines and 3D printers. Certifications include CE, ROSH, ISO, and FCC.

Package Includes:

  • 1 x 17HS8401 Stepper Motor with 1 m Dupont Line

93.45 AED 93.45 AED Tax Included
93.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Parameters:

Model 17HS8401
Phases 2
Angle of rotation 1.8°
Engine Dimensions 42 x 48 mm
Shaft "D" Shaft 21 x f5 mm
Exit Way Plug line "4"
Motor guides Dupont line (1 m)
Car adapter Two-phase stepper drive
Scope of application 3D printers, monitoring equipment, medical equipment, textile equipment, packaging equipment, stage lighting, laser engraving, automation equipment, non-standard equipment, placement machines, etc.

Electrical Specifications:

Model No. Angle of rotation (°) Engine Length (mm) Rated Current (A) Resistance / Phase (Ω) Inductance / Phase (mH) Holding torque (N.cm) Couple relaxing (N.cm) Inertia rotor (g.cm²) Lead-free
17HS8401 1.8 48 1.8 1.8 3.2 52 2.6 68 4

Common Parameters:

  • Refinements pitch angle: ±5% (full step, no charge)
  • Resistance accuracy: ±10%
  • Inductance refinements: ±20%
  • Temperature rise: 80°C (rated current, 2 phases)
  • Ambient temperature: -20 °C to +50 °C
  • Insulation resistance: 100 MΩ Min, 500 VDC
  • Insulation Strength: 500 VAC for 1 minute

Features:

  1. Low noise
  2. Low heat
  3. Smooth work
  4. Good acceleration performance
