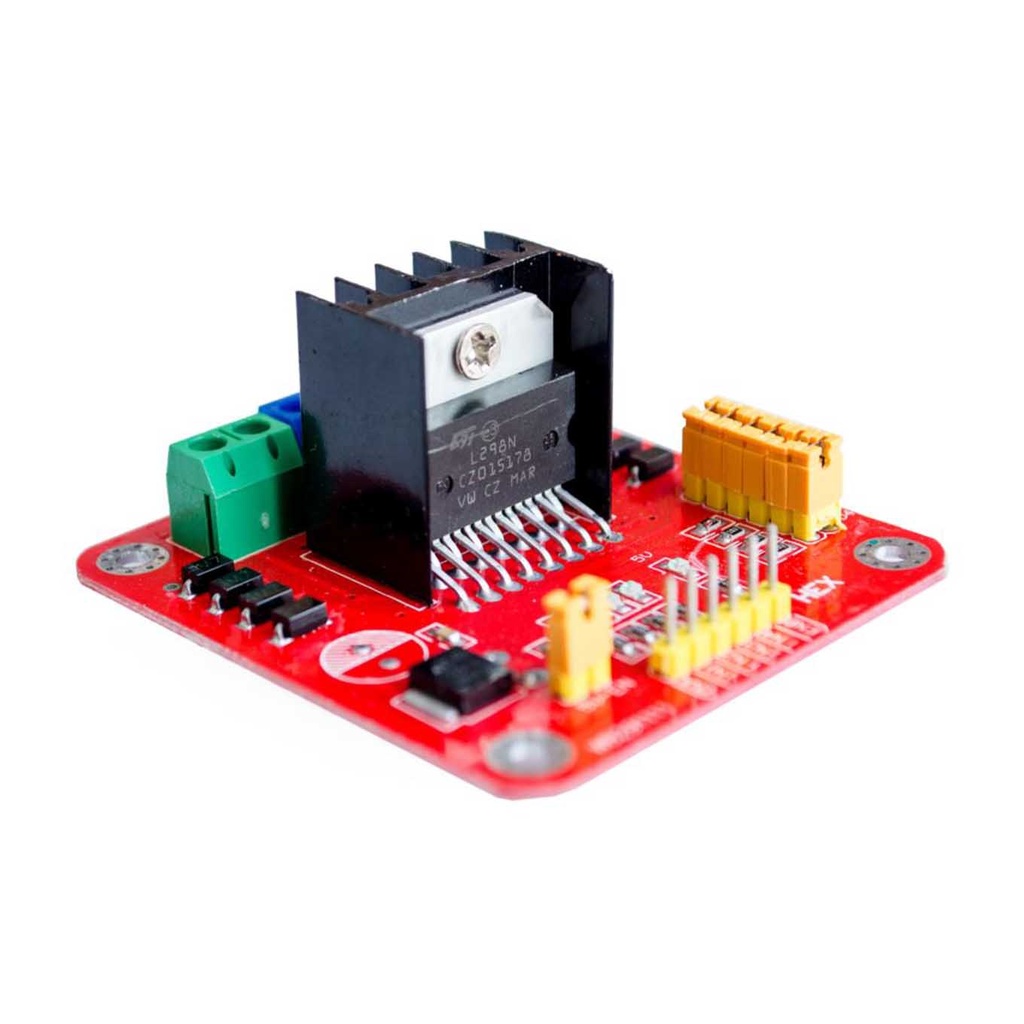

Motor Driver Board Module L298n Dual H-Bridge DC Stepper Control Advanced Version

Motor Driver Board Module L298n Dual H-Bridge DC Stepper Control Advanced Version

The L298N Motor Driver Module is a high-power motor driver based on the L298N dual H-Bridge IC. It is capable of controlling two DC motors or one stepper motor simultaneously, making it ideal for robotics, CNC machines, and automation projects. It supports both 3.3V and 5V logic microcontrollers like Arduino and Raspberry Pi and features a built-in 5V regulator and heat sink for enhanced stability and performance.

Package Includes:

  • 1 x L298N Dual H-Bridge Motor Driver Module

25.00 AED 25.00 AED Tax Included
25.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Simple Motor Driver
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Dual Motor Control: Supports 2 DC motors or 1 stepper motor
  • Wide Voltage Range: Operates between 5V and 35V
  • Current Capacity: Up to 2A per channel
  • Onboard 5V Regulator: Provides 5V output for external use
  • PWM Speed Control: Enable pins for motor speed adjustments
  • Built-in Heat Sink: Effective thermal dissipation
  • Reverse Polarity Protection: Safe motor control
  • Logic Level Support: Compatible with 3.3V and 5V systems

Specifications:

Parameter Value
Operating Voltage 5V – 35V
Output Peak Current 2A per channel
Logic Voltage 4.5V – 5.5V
Logic Current 0 – 36mA
PWM Control Yes (Enable A & B)
Max Power 20W
Operating Temperature -25°C to 130°C
Module Size 55 x 60 x 30 mm

Pinout:

L298N Motor Driver Pinout

Pin Label Description
VMS Motor Power Supply (5V–35V)
GND Ground
5V 5V Output from onboard regulator
IN1, IN2 Motor A control inputs
IN3, IN4 Motor B control inputs
ENA, ENB PWM speed control for Motor A & B
OUT1, OUT2 Motor A outputs
OUT3, OUT4 Motor B outputs

Wiring Guide:

Example connections between L298N, Arduino, and a stepper motor:

L298N Pin Arduino Pin Stepper Motor
ENA 5V or PWM pin -
IN1 D8 Coil 1A
IN2 D9 Coil 1B
IN3 D10 Coil 2A
IN4 D11 Coil 2B
ENB 5V or PWM pin -
VMS 12V External -
GND GND -

Wiring Diagram:

Stepper Motor Wiring with L298N

Example Arduino Code:

// Define control pins
#define IN1 8
#define IN2 9
#define IN3 10
#define IN4 11
#define ENA 5
#define ENB 6

void setup() {
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(IN3, OUTPUT);
  pinMode(IN4, OUTPUT);
  pinMode(ENA, OUTPUT);
  pinMode(ENB, OUTPUT);

  digitalWrite(ENA, HIGH); // Enable Motor A
  digitalWrite(ENB, HIGH); // Enable Motor B
}

void loop() {
  // Rotate clockwise
  stepMotor(1);
  delay(1000);

  // Rotate counterclockwise
  stepMotor(2);
  delay(1000);
}

void stepMotor(int direction) {
  if (direction == 1) {
    digitalWrite(IN1, HIGH);
    digitalWrite(IN2, LOW);
    digitalWrite(IN3, HIGH);
    digitalWrite(IN4, LOW);
  } else if (direction == 2) {
    digitalWrite(IN1, LOW);
    digitalWrite(IN2, HIGH);
    digitalWrite(IN3, LOW);
    digitalWrite(IN4, HIGH);
  }
}

Applications:

  • Robotics
  • Stepper Motor Control
  • Automated Machinery
  • CNC Projects
  • DIY Electronics Projects
