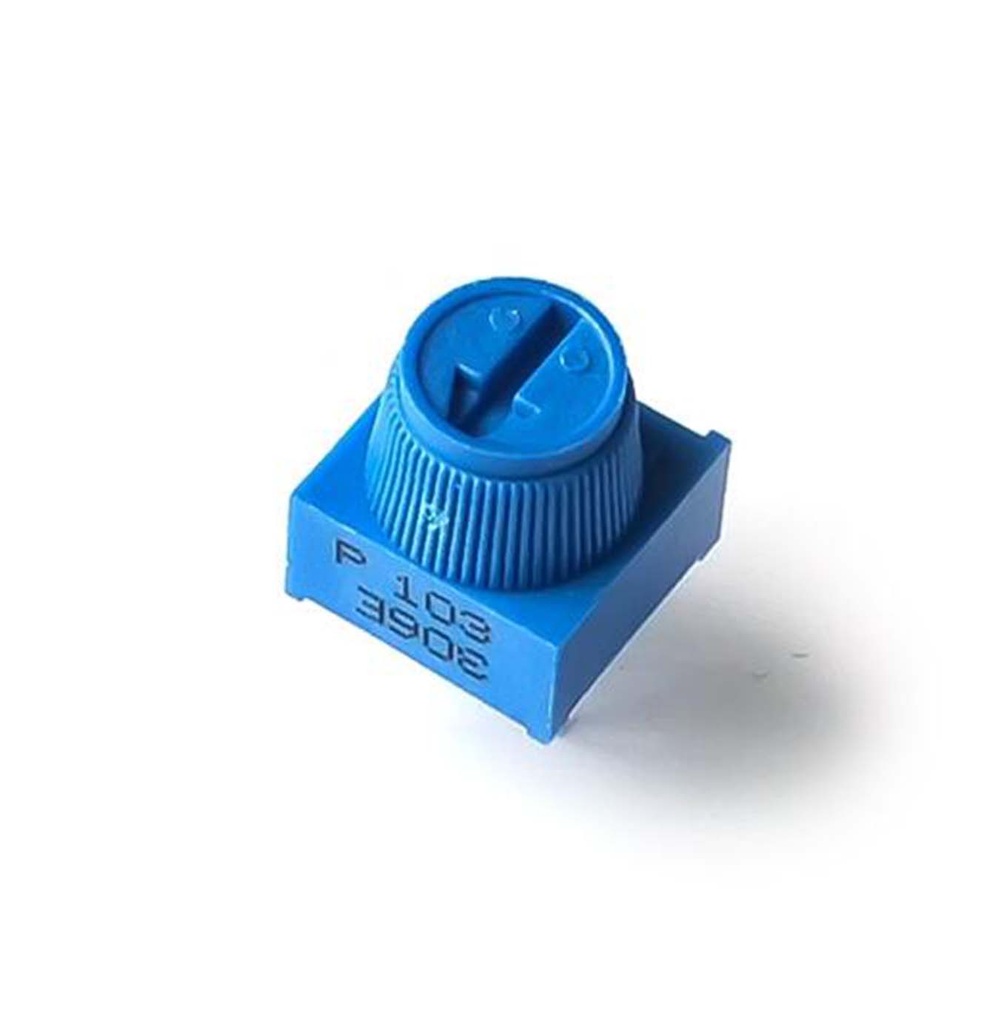

Potentiometer With Knob 3386P-103 10k Ohm Single Turn Blue

Potentiometer With Knob 3386P-103 10k Ohm Single Turn Blue

This 10K Ohm 0.5W potentiometer (model 3386P-103) is designed for reliable and easy manual adjustment with a built-in knob. It’s ideal for fine-tuning resistance in electronic circuits and features a compact form factor that fits well in breadboards, universal boards, and DIY projects, especially with Arduino. Built to last, it offers high mechanical endurance and stable electrical performance.

Package Includes:

  • 1 x 3386P-103 Trimpot 10K Ohms High Precision Trim

4.20 AED 4.20 AED Tax Included
4.20 AED Tax Included

Not Available For Sale

This combination does not exist.

Rotary Potentiometer Resistor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Easy to Operate: Knob-based design allows for smooth and precise resistance adjustment.
  • Breadboard Friendly: 3-pin design makes it easy to insert into breadboards or universal boards.
  • High Durability: Rated for up to 10,000 rotation cycles.
  • High Precision: Total resistance tolerance of ±20% with cermet resistive material.
  • Robust Construction: Can withstand 300V AC for 1 minute without damage.
  • Stable Performance: Temperature coefficient of ±100ppm/°C ensures minimal drift.
  • Versatile: Ideal for Arduino, sensor calibration, analog tuning, and electronic project adjustments.

Specifications:

  • Resistance: 10 kΩ
  • Power Rating: 0.5W (1/2 Watt)
  • Total Resistance Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Rotation Angle: 300° ±10°
  • Rotational Life: 10,000 cycles
  • Gyroscopic Moment: 10–200 gf·cm
  • Rotational Stopper Strength: 3 Kgf·cm
  • Push-Pull Strength: 8 Kgf max
  • Shaft Wobble: 0.6 x L / 20 mm p-p max
  • Voltage Withstand: 300V AC for 1 minute
  • Number of Turns: Single-turn
  • Adjustment Type: Top Adjustment
  • Resistive Material: Cermet
  • Mounting Type: Through Hole
  • Termination Style: PC Pins
  • Body Dimensions: 9.53mm x 9.53mm x 4.83mm (0.375" x 0.375" x 0.190")
  • Part Status: Active

Applications:

  • Arduino and Raspberry Pi projects
  • Sensor calibration and tuning
  • Analog signal adjustments
  • Power supply voltage trimming
  • Custom electronics and prototyping
