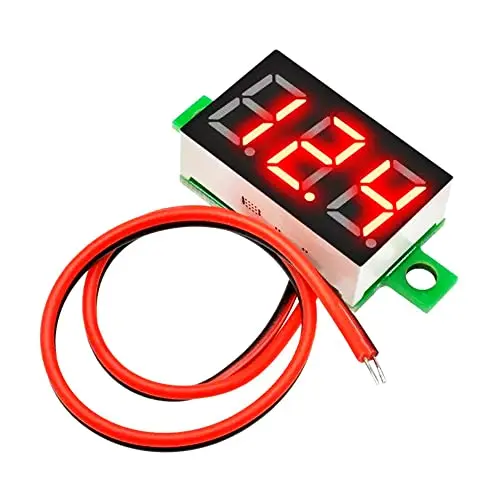

Digital Voltmeter Voltage Display Module 0.28 inch Dc 0-100v Red

Digital Voltmeter Voltage Display Module 0.28 inch Dc 0-100v Red

This compact voltage display module features three 0.28-inch 7-segment LED digits, ideal for real-time voltage monitoring. It requires no separate power supply, as it uses the measured voltage itself for power.
15.75 AED 15.75 AED Tax Included
15.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Voltage Display Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Display Mode: Three 0.28" LED 7-segment digits
  • Update Rate: Approximately every 500 ms
  • Physical Size: 30 x 12 x 8.5 mm (L × W × H, including mounting ears)
  • Power Supply: None needed; powered directly by the test voltage
  • Lead Wire Length: 10 cm
  • Input Voltage Range: 0 V (minimum) to 100 V (maximum DC)
  • Measurement Range: DC 0–100 V
  • Operating Temperature: -10°C to 65°C
  • Measurement Accuracy: ±(1% + 2 digits)
  • Mounting Holes Distance: 26 mm

Wiring:

  • Red Wire: Power Supply + and Measure Voltage + (0–100 V DC)
  • Black Wire: Power Supply - and Measure Voltage -
