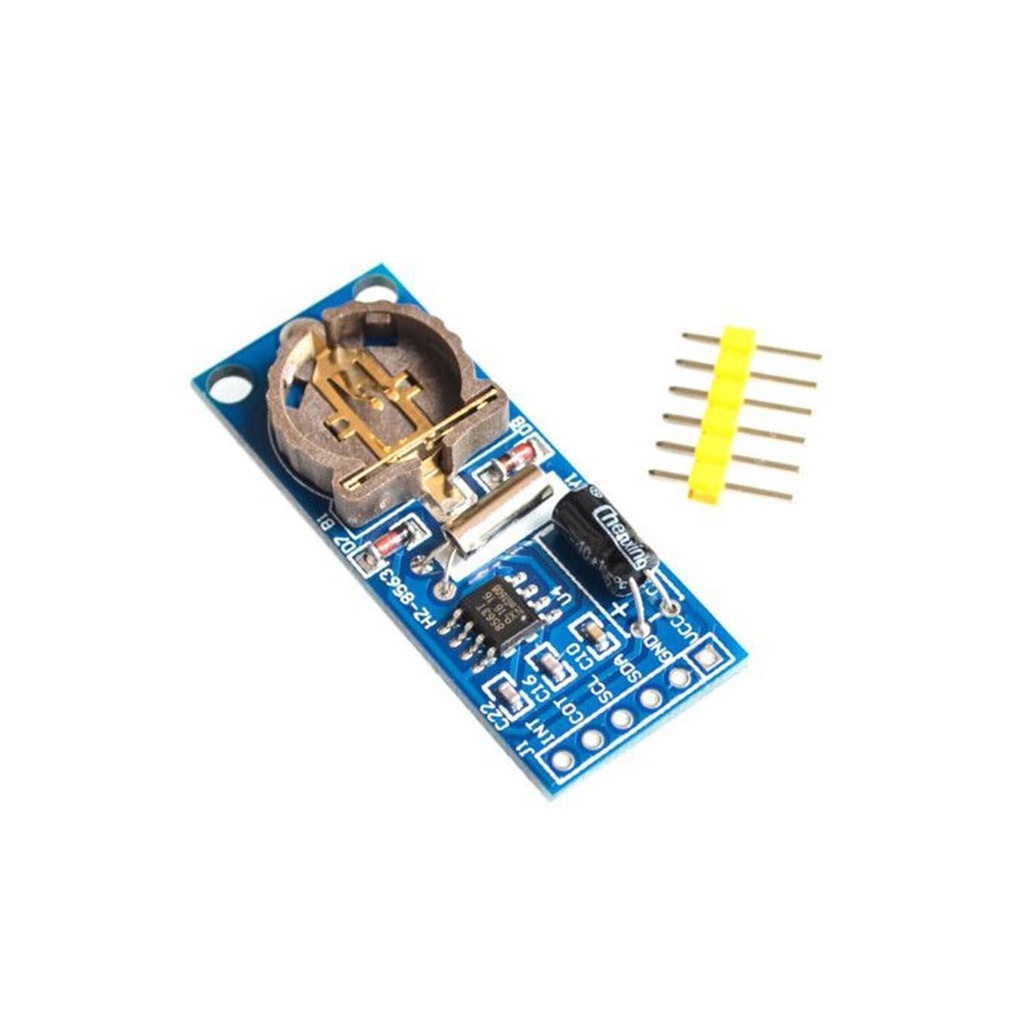

Real Time Clock RTC Module PCF8563T

Features

• Low Power Consumption: Optimized for minimal power use, suitable for battery-operated devices.
• Accurate Timekeeping: Provides year, month, day, weekday, hours, minutes, and seconds.
• I²C Communication: Uses a two-line bidirectional I²C bus for data transfer, max speed 400 kbit/s.
• Programmable Outputs: Includes a programmable clock output and interrupt output.
• Voltage-Low Detector: Monitors voltage levels to ensure reliable operation.
• Compact Design: Integrated oscillator capacitor and internal Power-On Reset (POR).

Specifications

• Battery Model: CR1220 3V (Not Included)
• Clock Operating Voltage: 1.0 V to 5.5 V at room temperature
• Backup Current: Typical 0.25 µA at VDD = 3.0 V and Tamb = 25°C
• I²C Bus Interface: 400 kHz two-wire interface (at VDD = 1.8 V to 5.5 V)
• Programmable Clock Output: 32.768 kHz, 1.024 kHz, 32 Hz, and 1 Hz
• Alarm and Timer Functions: Built-in for versatile applications
• Internal Power-On Reset (POR)
• I²C Bus Slave Address: Read A3h and write A2h
• Interrupt Pin: Open-drain

Resources

• PCF8563 Datasheet

Arduino Code for PCF8563 RTC Module (No Library Needed)

#include <Wire.h>

#define PCF8563address 0x51

byte second, minute, hour, dayOfWeek, dayOfMonth, month, year;
String days[] = {"Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday"};

byte bcdToDec(byte value) {
  return ((value / 16) * 10 + value % 16);
}

byte decToBcd(byte value){
  return (value / 10 * 16 + value % 10);
}

void setPCF8563() {
  Wire.beginTransmission(PCF8563address);
  Wire.write(0x02);
  Wire.write(decToBcd(second));
  Wire.write(decToBcd(minute));
  Wire.write(decToBcd(hour));
  Wire.write(decToBcd(dayOfMonth));
  Wire.write(decToBcd(dayOfWeek));
  Wire.write(decToBcd(month));
  Wire.write(decToBcd(year));
  Wire.endTransmission();
}

void readPCF8563() {
  Wire.beginTransmission(PCF8563address);
  Wire.write(0x02);
  Wire.endTransmission();

  Wire.requestFrom(PCF8563address, 7);
  second = bcdToDec(Wire.read() & B01111111);  // remove VL error bit
  minute = bcdToDec(Wire.read() & B01111111);
  hour = bcdToDec(Wire.read() & B00111111);
  dayOfMonth = bcdToDec(Wire.read() & B00111111);
  dayOfWeek = bcdToDec(Wire.read() & B00000111);
  month = bcdToDec(Wire.read() & B00011111);  // remove century bit
  year = bcdToDec(Wire.read());
}

void setup() {
  Wire.begin();
  Serial.begin(9600);

  // Set initial time here (change as needed)
  second = 0;
  minute = 28;
  hour = 9;
  dayOfWeek = 2;
  dayOfMonth = 13;
  month = 8;
  year = 13;  // year 2013

  // Comment the next line after setting the time once
  setPCF8563();
}

void loop() {
  readPCF8563();

  Serial.print(days[dayOfWeek]);
  Serial.print(" ");
  Serial.print(dayOfMonth, DEC);
  Serial.print("/");
  Serial.print(month, DEC);
  Serial.print("/20");
  Serial.print(year, DEC);
  Serial.print(" - ");
  Serial.print(hour, DEC);
  Serial.print(":");
  if (minute < 10) Serial.print("0");
  Serial.print(minute, DEC);
  Serial.print(":");
  if (second < 10) Serial.print("0");
  Serial.println(second, DEC);

  delay(1000);
}
