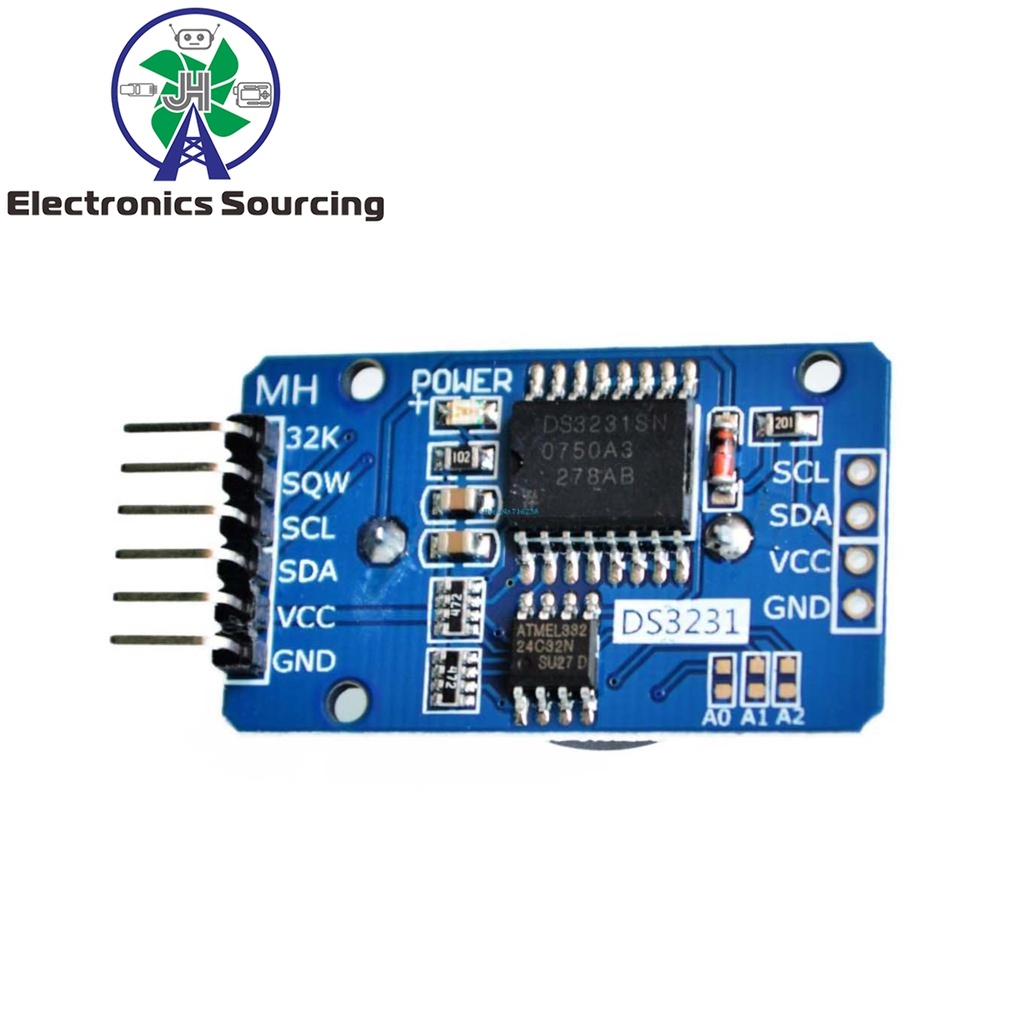

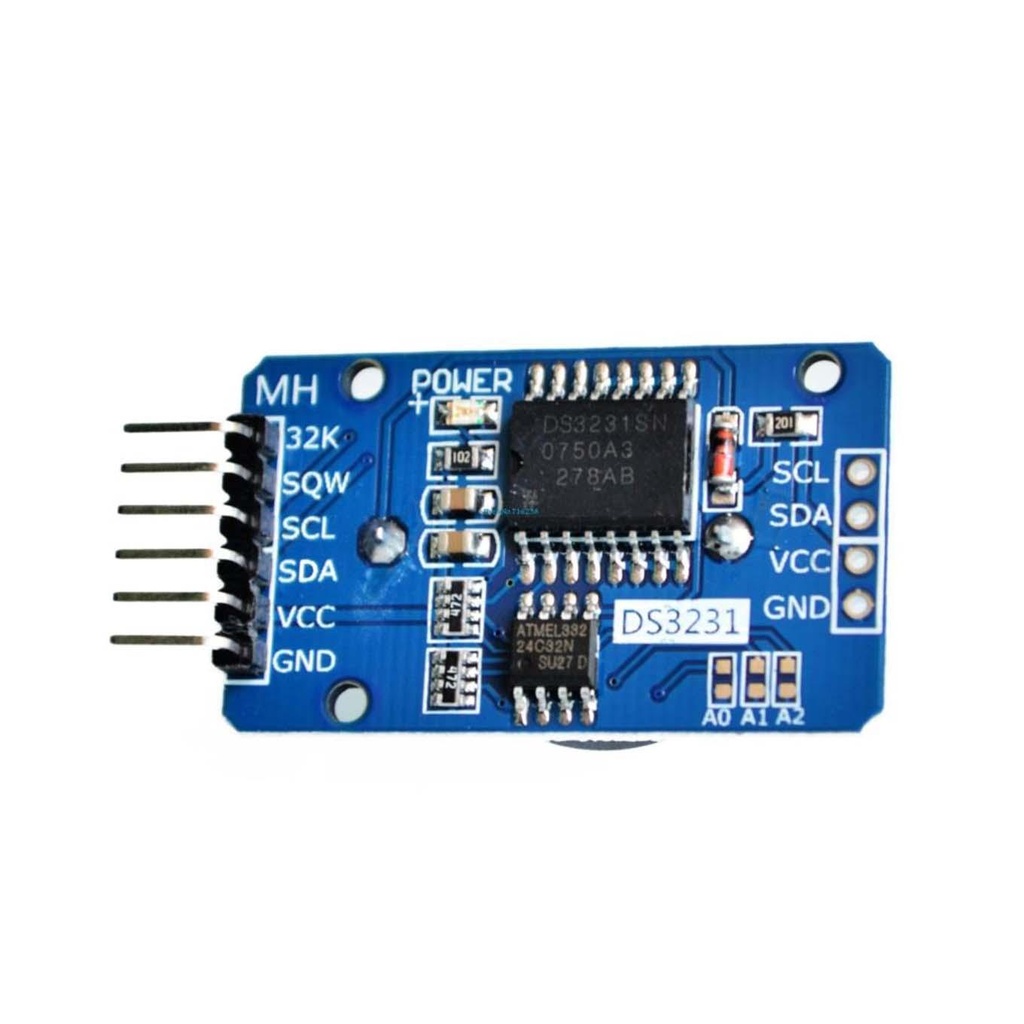

Real Time Clock RTC Module AT24C32 Ds3231

Features:

• Compact Size: Measures 38mm x 22mm x 14mm, suitable for applications with limited space.
• Lightweight: Weighs only 8g, adding minimal burden to projects.
• Wide Operating Voltage Range: Operates from 3.3V to 5.5V, compatible with many devices.
• High-Precision Clock Chip: Uses the DS3231 chip for accurate timekeeping.
• Clock Accuracy: ±2 ppm between 0–40°C (about 1-minute error per year).
• Dual Calendar Alarm Clock: Supports two independent programmable alarms.
• Programmable Square-Wave Output: Useful for generating periodic signals or synchronization.
• Real-Time Clock Generator: Tracks seconds, minutes, hours, days, dates, months, and years; leap year correction up to 2100.
• Built-in Temperature Sensor: Measures temperature with ±3°C accuracy.
• Ample Memory Storage: Includes AT24C32 EEPROM with 32K memory.
• IIC Bus Interface: Supports I²C for easy communication with microcontrollers.
• Cascading Capability: Can be connected with other I²C devices; default 24C32 address: 0x57 (modifiable).

Principle of Work:

The DS3231 RTC module is built around the DS3231 chip from Maxim Integrated. It integrates a high-accuracy clock and a temperature sensor, and uses an I²C interface to communicate with microcontrollers. The on-chip TCXO ensures the oscillator remains accurate regardless of environmental changes.

The module can keep time continuously with the help of a coin cell battery, updating registers for seconds, minutes, hours, days, months, and years automatically — including leap year adjustments. The included EEPROM allows users to store additional non-volatile data directly on the module.

DS3231 Internal Components and Working with MCU

Internal Components of DS3231 IC:

1. Crystal Oscillator: The DS3231 has a built-in temperature-compensated crystal oscillator (TCXO). The crystal generates precise clock pulses as the timekeeping base. The TCXO compensates for temperature variations, ensuring accuracy across temperature ranges.
2. RTC Counter and Registers: Contains counters and registers to keep track of time (hours, minutes, seconds, day, date, month, year), continuously updated by the oscillator.
3. Temperature Sensor: Built-in sensor to measure ambient temperature, accessible by the connected microcontroller (MCU).
4. Control Logic: Manages alarms, output signals, and MCU communication.
5. I2C Interface: Enables bi-directional serial communication with MCU using the I2C protocol. MCU reads/writes data to control functions and retrieve time & temperature.

How the Module Works with MCU:

1. Initialization: MCU configures the DS3231 settings (set time, enable alarms, adjust parameters).
2. Timekeeping: DS3231 updates internal time registers continuously; MCU reads current time.
3. Temperature Monitoring: MCU reads temperature data for monitoring or compensation.
4. Alarms: Two programmable alarms can be set by MCU for scheduled actions.
5. Communication: MCU (master) sends commands via I2C; DS3231 (slave) responds.
6. Battery Backup: Maintains time during power loss; MCU can monitor battery status.

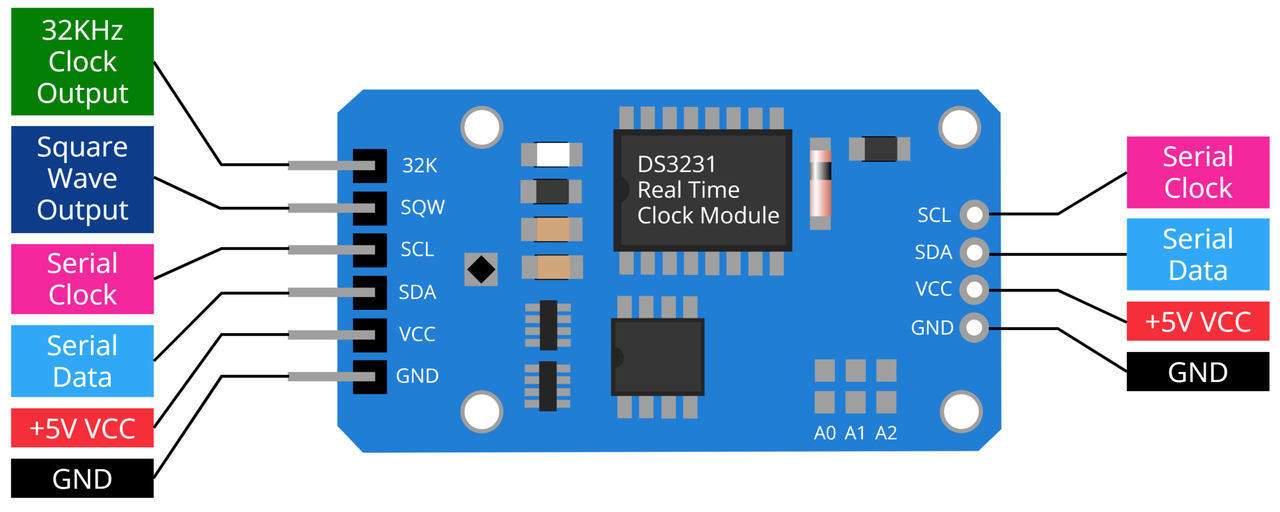

Pinout of the Module:

• VCC: Power supply voltage (3.3V to 5.5V)
• GND: Ground
• SDA: I2C data line
• SCL: I2C clock line
• SQW/OUT: Programmable square wave or output pin
• 32kHz: 32.768 kHz clock output pin

Applications:

• Real-Time Clock in digital clocks, timers, watches, and wall clocks
• Data loggers with time-stamped data (environmental monitoring, event tracking)
• Servers and network equipment for synchronization and logging
• Automotive systems for dashboard clocks and event logging
• GPS devices for maintaining accurate time
• Security systems for event logging and access control
• Home automation for scheduling and device coordination
• Industrial automation for scheduling and event coordination
• IoT devices for synchronization and data recording
• Medical devices for precise timing and monitoring
• Communication equipment for timing and synchronization
• Weather stations and environmental monitoring systems

Circuit Diagram:

Library Installation for Arduino IDE:

1. Download the library from: DS3231 RTC Module Library
2. Open Arduino IDE → Sketch → Include Library → Add .ZIP Library → Select downloaded .zip
3. Verify installation via Sketch → Include Library (look for "DS3231 RTC Module")

Sample Arduino Code:

#include "Wire.h"
#include "ds3231.h"

struct ts t;

void setup() {
  Serial.begin(9600);
  Wire.begin();
  DS3231_init(DS3231_CONTROL_INTCN);

  // Set initial date and time: Year, Month, Day, Hour, Minute, Second
  setInitialDateTime(2020, 11, 14, 3, 0, 0);
}

void loop() {
  // Read current time and date from DS3231
  DS3231_get(&t);

  // Print date and time to Serial Monitor
  printDateTime(t);

  delay(1000);
}

void setInitialDateTime(int year, int month, int day, int hour, int minute, int second) {
  t.year = year;
  t.mon = month;
  t.mday = day;
  t.hour = hour;
  t.min = minute;
  t.sec = second;

  DS3231_set(t);
}

void printDateTime(struct ts t) {
  Serial.print("Date: ");
  Serial.print(t.mday);
  Serial.print("/");
  Serial.print(t.mon);
  Serial.print("/");
  Serial.print(t.year);
  Serial.print("\t Hour: ");
  Serial.print(t.hour);
  Serial.print(":");
  Serial.print(t.min);
  Serial.print(".");
  Serial.println(t.sec);
}

Technical Details:

• Size: 38mm x 22mm x 14mm
• Weight: 8g
• Operating Voltage: 3.3V to 5.5V
• Clock Chip: DS3231, high precision
• Accuracy: ±2 ppm at 0-40°C (~1 min/year)
• Calendar: Two alarms available
• Square-Wave Output: Programmable
• Real-Time Clock Generator: Tracks seconds, minutes, hours, days, dates, months, years with leap-year compensation
• Temperature Sensor: Integrated, ±3°C accuracy
• Memory Chip: AT24C32 EEPROM, 32K storage
• I2C Interface: Supports up to 400 kHz at 5V
• Cascading Capability: Can connect with other I2C devices; address modifiable via A0/A1/A2 pins; default 0x57
