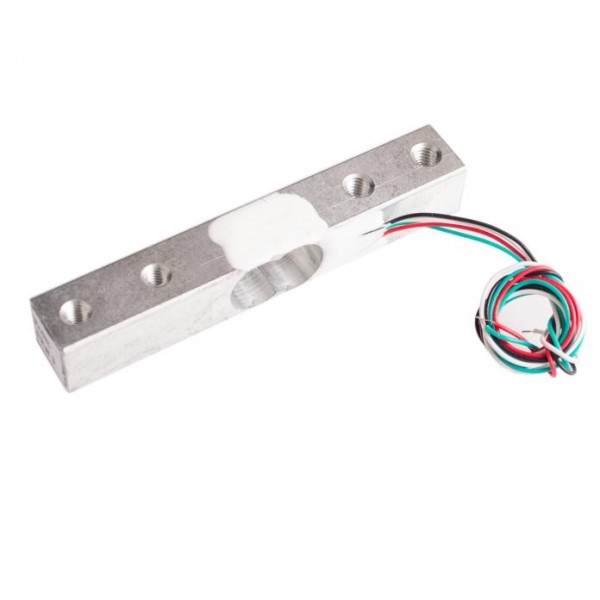

Weight Load Cell Strain Gauge Sensor 5kg
The 5KG Weight Load Cell Strain Gauge Sensor is a precision tool crafted for meticulous weight measurements across diverse applications. This strain gauge sensor adeptly transforms mechanical force into electrical signals, ensuring a steadfast stream of reliable and accurate weight data. Tailored for applications that demand sensitivity to moderately heavier loads, the 5KG capacity renders it an optimal choice for industrial scales, laboratory equipment, and scenarios where precision matters. Whether deployed in bustling industrial environments or research laboratories, the 5KG Weight Load Cell Strain Gauge Sensor stands out as a dependable solution, delivering unwavering accuracy and consistency for a wide spectrum of weight measurement needs.
Package Includes:
- 1 x Weight Load Cell Strain Gauge Sensor 5kg
Features:
- Parallel Beam Type
- IP65 Rating
Specification:
- Capacity: 5kg
- Material: Aluminum-Alloy
- Recommended Excitation Voltage: 5 V DC
- Max Excitation Voltage: 10 V DC
- Rated Output: 1.2 ± 0.1 mV/V
- Overall Precision: 0.02% F.S
- Input Resistance: 1066 ± 20 Ohm
- Output Resistance: 1000 ± 20 Ohm
- Insulation Resistance: 2000 Ohm
- Working Temperature: -20°C ~ +60°C
- Compensated Temperature Range: -10°C ~ +65°C
- Safety Overload: 120%
- Thread Hole: M4 Screw
- Dimension: 55 x 12.7 x 12.7 mm
- Wire Length: 200 mm
- Weight: 27 g
Applications:
- Industrial manufacturing: for measuring the weight of raw materials, parts, or finished products in production lines
- Logistics and shipping: for weighing packages or pallets before they are shipped
- Agriculture: for measuring the weight of feed, fertilizer, or crops
- Research and development: for measuring the force or pressure applied to materials in testing environments
- Robotics: for providing feedback on the weight of objects picked up or moved by robots
Pin Connections:
| Wire Color | Description |
|---|---|
| Red | VCC (E+) |
| Black | GND (E-) |
| White | Output – (A-) |
| Green | Output + (A+) |
