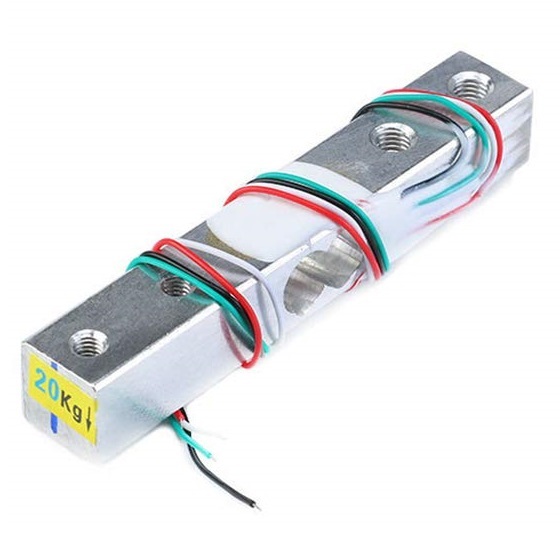

Weight Load Cell Strain Gauge Sensor 20KG
The 20KG Weight Load Cell Strain Gauge Sensor is a precision tool crafted for meticulous weight measurements across diverse applications. This strain gauge sensor adeptly transforms mechanical force into electrical signals, ensuring a steadfast stream of reliable and accurate weight data. The 20KG capacity renders it an optimal choice for DIY scales. Whether deployed in bustling industrial environments or research laboratories, the 20KG Weight Load Cell Strain Gauge Sensor stands out as a dependable solution, delivering unwavering accuracy and consistency for a wide spectrum of weight measurement needs.
Package Includes:
- 1 x Load Cell 20KG
Features:
- Straight bar load cell design
- Made from aluminum-alloy material
- Designed to measure force in one direction
- Can filter out other forces being applied
- Generates a small electrical signal output
- Requires specialized amplification equipment
- Can measure force in other directions, although sensitivity will differ
- Compact and robust design
- Ideal for use in industrial and scientific applications
- Can be used in weighing scales, force testing machines, and robotics systems
- Provides accurate measurement of force
- Easy to install and use
Specification:
- Capacity: 20kg / 44 lbs
- Recommended Excitation Voltage: 5V DC
- Max Excitation Voltage: 10V DC
- Rated Output: 1.2 ± 0.1mV/V
- Overall Precision: 0.02% F.S
- Input Resistance: 1066 ± 20 Ohm
- Output Resistance: 1000 ± 20 Ohm
- Insulation Resistance: 2000 Ohm
- Working Temperature: -20°C ~ +60°C
- Compensated Temperature Range: -10°C ~ +65°C
- Safety Overload: 120%
- Total Size: 80 x 13 x 12 mm (L × W × T)
- Thread Hole: M4 Screw
- Cable Length: 150 mm / 6”
- Material: Aluminium Alloy
- Weight: 27 g
Applications:
- Force testing machines: Measure force to break or deform materials or objects.
- Weighing scales: Integrate into scales for accurate weight measurement.
- Robotics: Provide force feedback for precise manipulation.
- Material testing: Test tensile and compressive strength.
- Industrial automation: Use in assembly lines or manufacturing requiring precise force measurement.
- Medical devices: Measure applied force in prosthetics and other medical tools.
Pin Connections:
| Wire Color | Description |
|---|---|
| Red | E+ |
| Green | O+ |
| Black | E- |
| White | O- |
Features:
- Straight bar load cell design
- Made from aluminum-alloy material
- Designed to measure force in one direction
- Can filter out other forces being applied
- Generates a small electrical signal output
- Requires specialized amplification equipment
- Can measure force in other directions, although sensitivity will differ
- Compact and robust design
- Ideal for use in industrial and scientific applications
- Can be used in weighing scales, force testing machines, and robotics systems
- Provides accurate measurement of force
- Easy to install and use
Specification:
- Capacity: 20kg / 44 lbs
- Recommended Excitation Voltage: 5V DC
- Max Excitation Voltage: 10V DC
- Rated Output: 1.2 ± 0.1mV/V
- Overall Precision: 0.02% F.S
- Input Resistance: 1066 ± 20 Ohm
- Output Resistance: 1000 ± 20 Ohm
- Insulation Resistance: 2000 Ohm
- Working Temperature: -20°C ~ +60°C
- Compensated Temperature Range: -10°C ~ +65°C
- Safety Overload: 120%
- Total Size: 80 x 13 x 12 mm (L × W × T)
- Thread Hole: M4 Screw
- Cable Length: 150 mm / 6”
- Material: Aluminium Alloy
- Weight: 27 g
Applications:
- Force testing machines: Measure force to break or deform materials or objects.
- Weighing scales: Integrate into scales for accurate weight measurement.
- Robotics: Provide force feedback for precise manipulation.
- Material testing: Test tensile and compressive strength.
- Industrial automation: Use in assembly lines or manufacturing requiring precise force measurement.
- Medical devices: Measure applied force in prosthetics and other medical tools.
Pin Connections:
| Wire Color | Description |
|---|---|
| Red | E+ |
| Green | O+ |
| Black | E- |
| White | O- |
