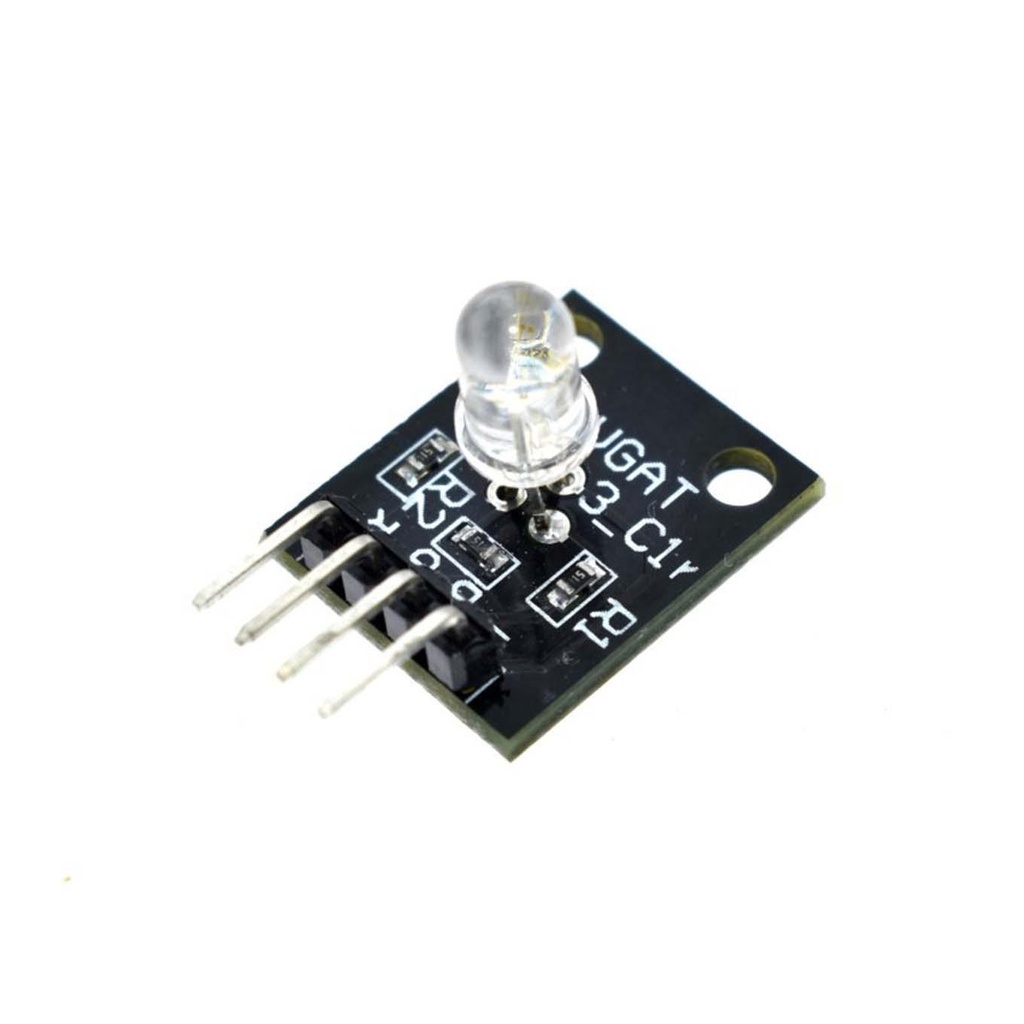

LED RGB Module KY-016

Features

• Utilizes plug-in full-color LEDs, offering vibrant and customizable lighting.
• Designed with multiple single-chip microcontroller interfaces, ensuring broad compatibility with different development boards.
• Includes RGB tricolor current-limiting resistors to effectively prevent LED burnout and ensure longevity.
• Achieves a wide spectrum of colors through PWM (Pulse Width Modulation) adjustment of the three primary colors (Red, Green, Blue).
• Operates efficiently with a working voltage of 5V.

Specifictions

• PCB Size: Compact design with dimensions of 15 mm x 10.6 mm.
• PCB Color: Standard green, commonly used for electronic components.
• LED Type: Employs a 5050 full-color super bright LED, providing excellent illumination.
• Protection: Features built-in resistors to prevent LED burnout, enhancing durability.
• Compatibility: Can be seamlessly integrated with all types of single-chip microcontrollers.
• Luminosity: Equipped with a high-light LED for superior brightness.
• Working Voltage: Supports flexible power input with a working voltage range of 3.3V to 5V.
• Weight: Extremely lightweight at only 4 grams, suitable for small and portable projects.
• Ease of Use: Can be directly plugged into an Arduino motherboard, simplifying setup and prototyping.
