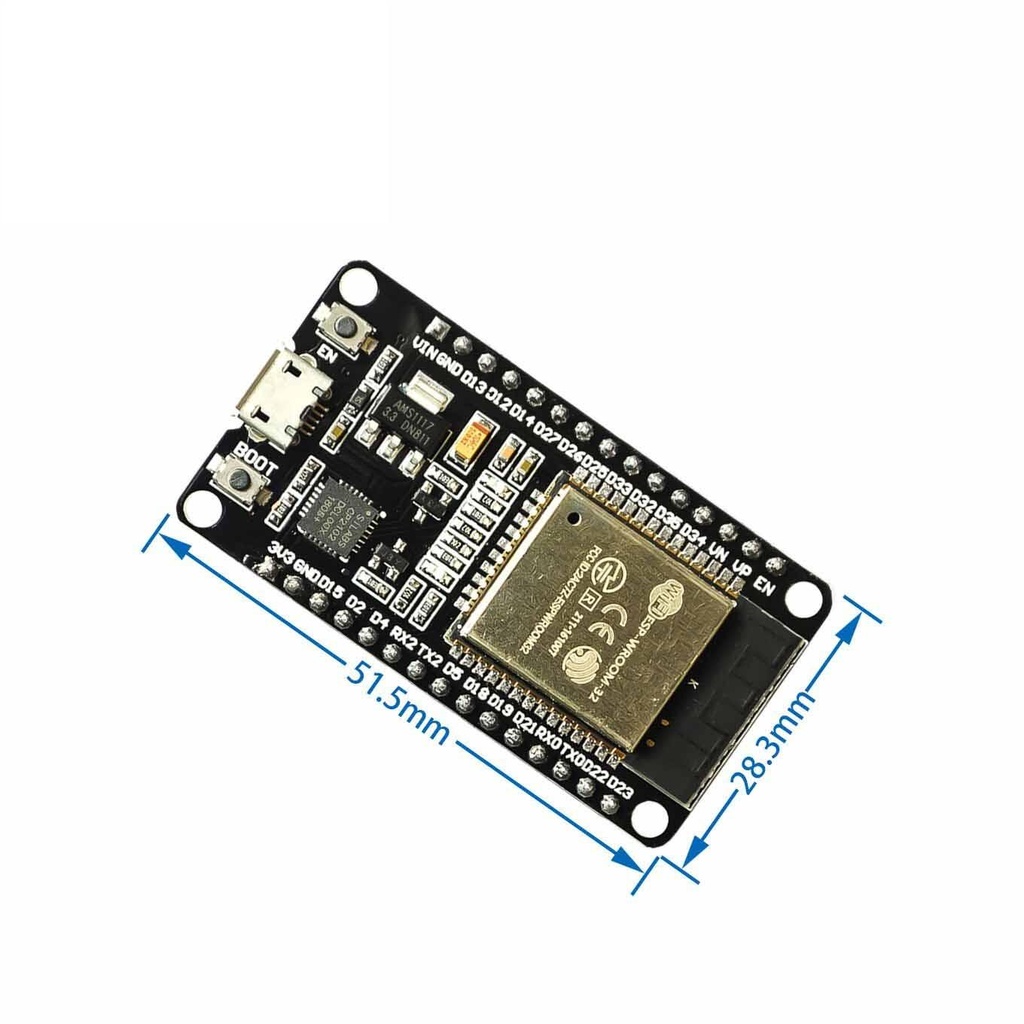

ESP32 Wireless Wifi Bluetooth Development Board unsoldered

ESP32 Wireless Wifi Bluetooth Development Board unsoldered

The ESP32 is an advanced low-power IoT sensor hub, offering superior capabilities compared to the Arduino. With its dual-core 32-bit LX6 microprocessor running at 240MHz, it includes built-in WiFi and Bluetooth and can be programmed via the Arduino IDE. This makes it ideal for a variety of IoT applications that require wireless communication and processing power.

26.00 AED 26.00 AED Tax Included
26.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Features:

  • Processor: 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS.

  • Memory: Integrated 520 KB SRAM and 16 MB flash memory, memory-mapped to the CPU code space.

  • Connectivity:

    • Integrated 802.11 b/g/n HT40 Wi-Fi transceiver (baseband, stack, and LwIP).

    • Dual-mode Bluetooth (classic and BLE).

    • Onboard PCB antenna, with IPEX connector for external antenna.

  • Operating Voltage: 2.3V to 3.6V (recommended 3.3V).

  • Operating Temperature: -40°C to +125°C.

  • Power Supply: 3.3V and VIN power pins for flexible power options.

Sensors:

  • Ultra-low noise analog amplifier.

  • Hall sensor for detecting magnetic fields.

  • 10 capacitive touch interfaces.

  • 32 kHz crystal oscillator.

GPIO Pins (34 in total):

  • Includes 3 UARTs, 3 SPI, 2 I2S, 18 ADC channels, 2 DAC, 2 I2C, infrared remote control, and PWM/timer input/output on every GPIO.

  • Supports external SPI flash up to 16 MB and SD-card interface (50 MHz SDIO master/slave).

  • OpenOCD debug interface with a 32 kB TRAX buffer.

Pinout Overview:

  • Power Pins:

    • VIN Pin: For 5V regulated power supply to ESP32 and peripherals.

    • 3.3V Pin: Output from onboard voltage regulator for external components.

    • GND Pin: Ground pin for the development board.

  • GPIO Pins: 25 digital GPIO pins with configurable input/output modes, including edge-trigger or level-trigger for interrupts.

  • ADC Channels: 12-bit SAR ADCs with 15 analog input channels, supporting programmable gain amplifiers and measurements in sleep mode.

  • DAC Channels: Two 8-bit DAC channels for converting digital signals to analog voltages.

  • TouchPads: 9 capacitive touch GPIOs for proximity sensing.

Communication Interfaces:

  • UART: 2 UART interfaces for asynchronous communication (up to 5 Mbps) with hardware management of CTS/RTS signals and software flow control (XON/XOFF).

  • SPI: 3 SPI interfaces (SPI, HSPI, VSPI) in master and slave modes, supporting up to 80 MHz, with up to 64-byte FIFO.

  • PWM: 25 PWM channels available (nearly all GPIO pins) for controlling digital motors and LEDs with independent timers and PWM operators.

Package Includes:

  • 1 x ESP32 Development Board (unsoldered)
