  3. Ethernet LAN8720 Rmii Module Board Black
Default
Ethernet LAN8720 Rmii Module Board Black

Ethernet LAN8720 Rmii Module Board Black

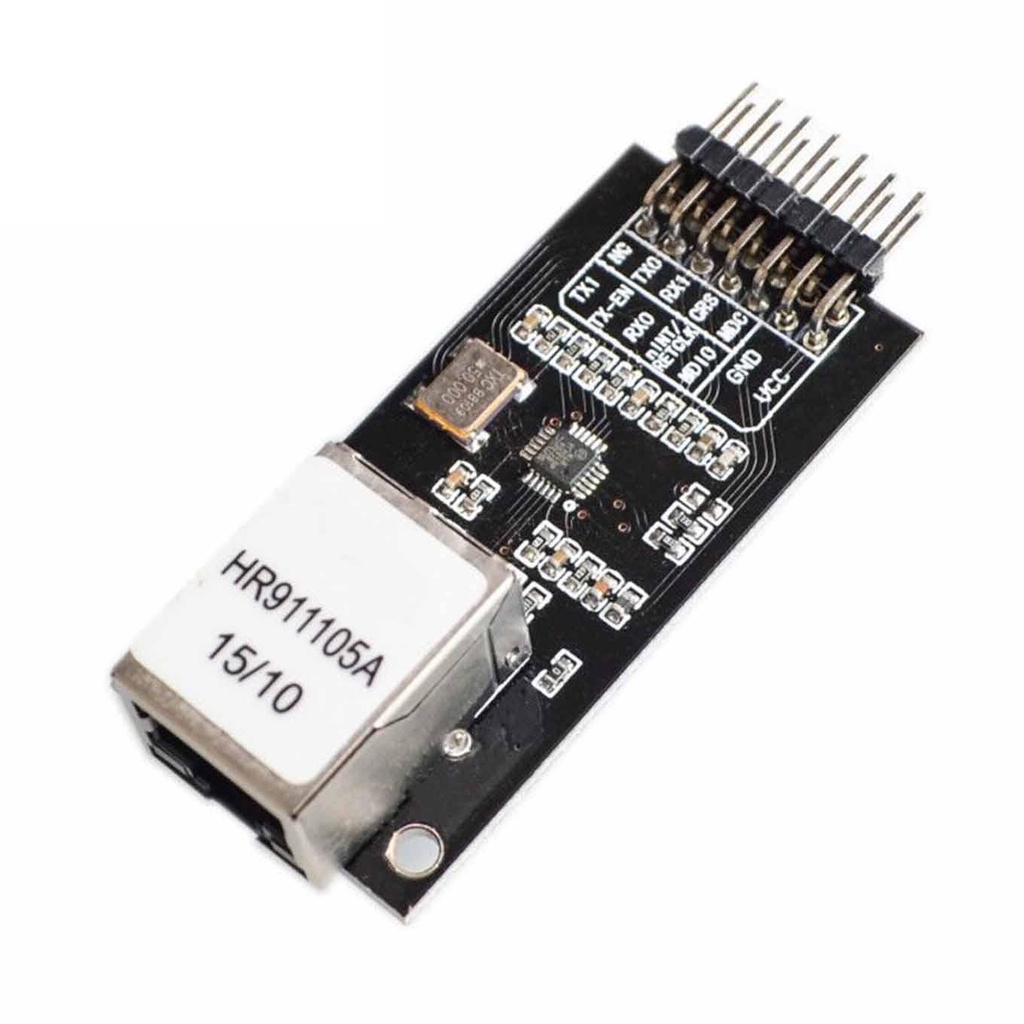

The Ethernet LAN8720 module is based on the high-performance LAN8720 10/100 Mbps Ethernet Physical Layer Transceiver (PHY) from SMSC (now part of Microchip). It is designed for use with microcontrollers supporting the RMII (Reduced Media Independent Interface) for Ethernet connectivity.

Package Includes:

  • 1 x Ethernet LAN8720 RMII Module Board (Black)

57.75 AED 57.75 AED Tax Included
57.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Based on the LAN8720 PHY chip in a compact QFN-24 package (4x4 mm)
  • Compliant with IEEE 802.3/802.3u (10BASE-T / 100BASE-TX standards)
  • Supports RMII interface (Reduced pin count, ideal for microcontrollers)
  • Integrated 1.2V voltage regulator for PHY core supply
  • HP Auto-MDIX support – automatically detects and corrects cable polarity
  • Flexible I/O voltage range: 1.2V to 3.6V
  • Operates on a single 3.3V power supply
  • RoHS compliant and lead-free
  • Suitable for building an embedded web server

Electrical Specifications:

  • Power Supply: 3.3V
  • I/O Voltage Range: 1.2V to 3.6V
  • Core Voltage: 1.2V (via integrated stabilizer)
  • PHY Type: LAN8720A, QFN-24 package

Interface:

  • Supports RMII (Reduced Media Independent Interface)
  • Works with 50 MHz clock input (external crystal or oscillator required)
  • Minimum pin count required for Ethernet PHY integration

Compatibility:

  • Designed for use with STM32 and ESP32 microcontrollers
  • Note: Only STM32 and ESP32 libraries are officially supported

Applications:

  • Embedded Ethernet applications
  • IoT projects
  • Microcontroller-based web servers
  • Smart devices requiring LAN connectivity



Additional Resources:

Datasheet for the LAN8720 chip: Click Here
