7 Segment Display 8 Bit Digital Tube Display Module Max7219

7 Segment Display 8 Bit Digital Tube Display Module Max7219

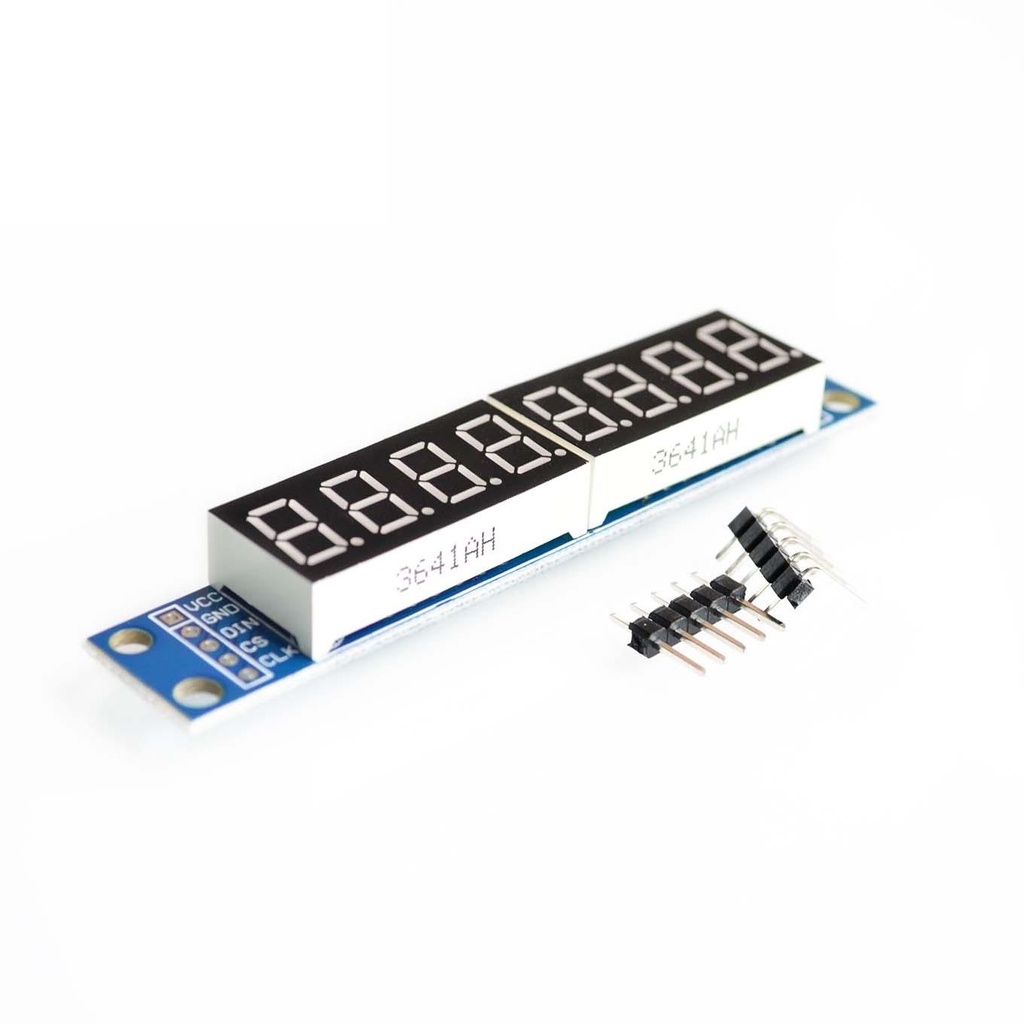

The MAX7219 8-Digit LED Display Control Module is a versatile and efficient solution designed to interface microprocessors with 7-segment LED displays, bar graph displays, or up to 64 independent LEDs. Featuring an integrated serial input/output driver, this module simplifies the control of multiple LEDs with minimal wiring, using only a convenient four-wire serial interface. Equipped with an internal BCD coder, multi-scan circuitry, and an 8x8 static RAM, it allows individual digit control with flicker-free display and supports cascading multiple modules for expanded use. Ideal for Arduino and other microcontrollers, the MAX7219 module reduces pin usage by requiring only three I/O pins to manage eight digits, making it perfect for compact digital display projects.

Package Includes:

  • 1 x Module
  • 2 x Pin Header

16.80 AED 16.80 AED Tax Included
16.80 AED Tax Included

Not Available For Sale

This combination does not exist.

7 segment Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share


Features:

  • MAX7219 is a kind of integrated serial input/output common-cathode display driver. It connects a microprocessor and 8-digit 7-segment LED display, and can also be connected to a bar graph display or 64 independent LEDs.
  • Includes a type B BCD coder, multi-scan circuit, word drive period, and an 8x8 static RAM used to store data.
  • Only one external register is needed to set the current for each LED segment.
  • Convenient four-wire serial interface can connect to most general microprocessors.
  • Each data can be addressed and updated individually without rewriting the whole display.
  • Supports optional code decoding for each digit.
  • Only needs three I/O pins to drive eight digital tubes.
  • Flicker-free digital tube display and supports cascading.

Note:

  • Do not reverse VCC and GND to avoid damaging the chip.
  • 51 SCM P0 port needs pull-up resistance; if your SCM doesn't have one, connect the data line to another port.

Specification

General Details
Type 8-Digit LED Display Digital Tube Control Module
Mainly Compatible with Arduino
Weight and Size Details
Product weight 0.010 kg
Package weight 0.090 kg
Product Size (L x W x H) 8.5 x 1.5 x 0.8 cm / 3.34 x 0.59 x 0.31 inches
Package Size (L x W x H) 10 x 4 x 2 cm / 3.93 x 1.57 x 0.79 inches
