DC-DC Boost Step-up Module With Display 4.5-32V To 5V-52V XL6009

DC-DC Boost Step-up Module With Display 4.5-32V To 5V-52V XL6009

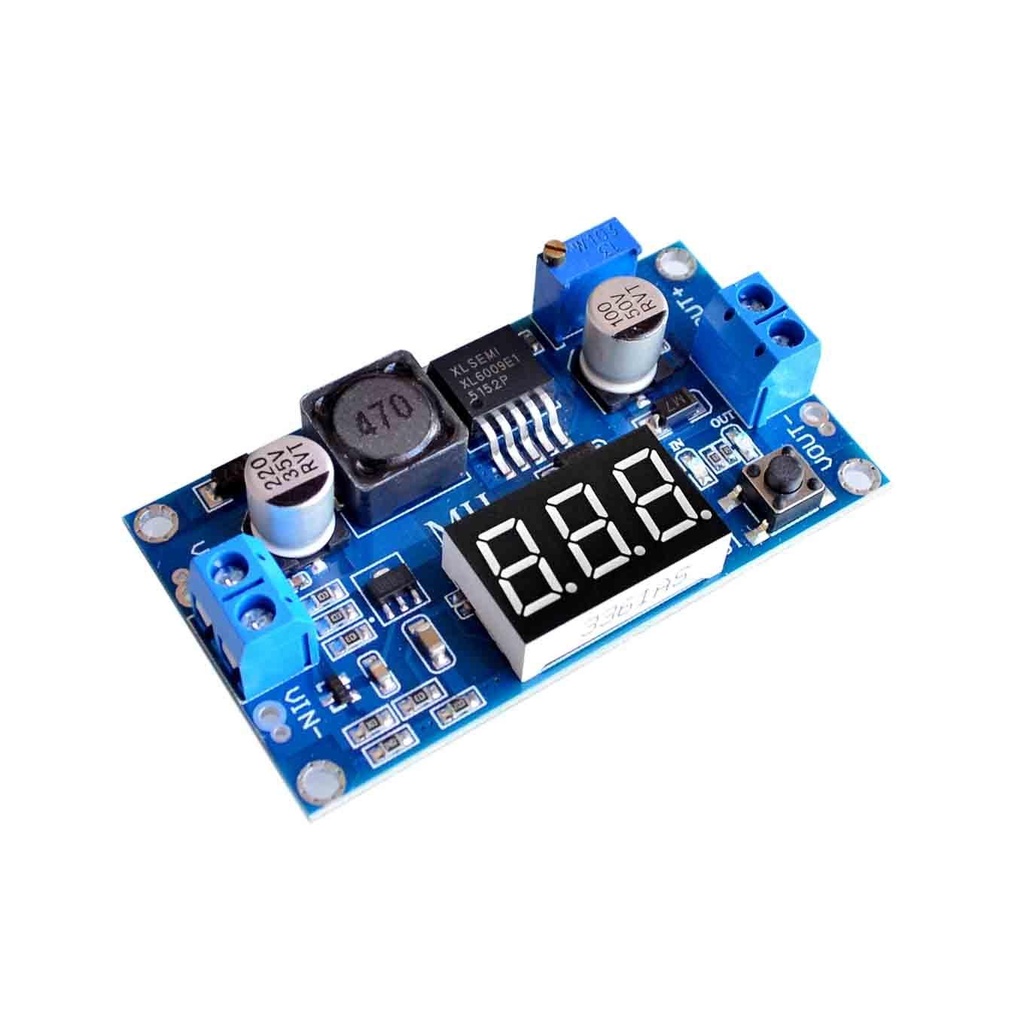

The XL6009 Step-Up Power Module is a high-efficiency DC-DC boost converter designed to step up voltage from 4.5V–32V to 5V–52V. Featuring the second-generation XL6009 chip and a built-in digital display, this module offers cost-effective performance and is suitable for lithium battery charging, power supply development, and DIY electronics projects.

Package Includes:

  • 1 x XL6009 DC-DC Voltage Boosting Module with LED Display

Boost Converter
45.15 AED 45.15 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Adjustable Boost Output: Boosts input from 4.5V–32V to an adjustable 5V–55V.
  • High Efficiency: Conversion efficiency up to 94%.
  • Over-Voltage Protection: Ensures stable and reliable operation.
  • Clear Interface: Input/output indicators and controls are clearly marked for ease of use.
  • Industrial Grade Materials: Built to last with long service life under various conditions.
  • Portable Design: Compact size makes it easy to carry and integrate into various projects.

Specifications:

  • Type: Non-isolated Boost Converter
  • Rectification Mode: Non-synchronous rectifier
  • Input Voltage: 4.3V–32V
  • Output Voltage: 5V–52V (adjustable)
  • Input Current: Up to 4A max
  • Efficiency: Up to 94%, typically 85%
  • Switching Frequency: 400KHz
  • Output Ripple: 50mV
  • Load Regulation: ±0.5%
  • Voltage Regulation: ±0.5%
  • Operating Temperature: -40°C to +85°C
  • Module Size: 69.8mm (L) x 38.0mm (W)

How It Works:

  • Short Press: Switch between input and output voltage display.
  • Moderate Press: Enter fine-tuning mode to adjust voltage display offset. Long press to reset to default.
  • Long Press: Enter low-power mode (display and LEDs off, module still functions). Press again to return to normal mode.
  • Voltage Adjustment: Turn the onboard potentiometer:
    • Clockwise – Increase output voltage
    • Counterclockwise – Decrease output voltage
