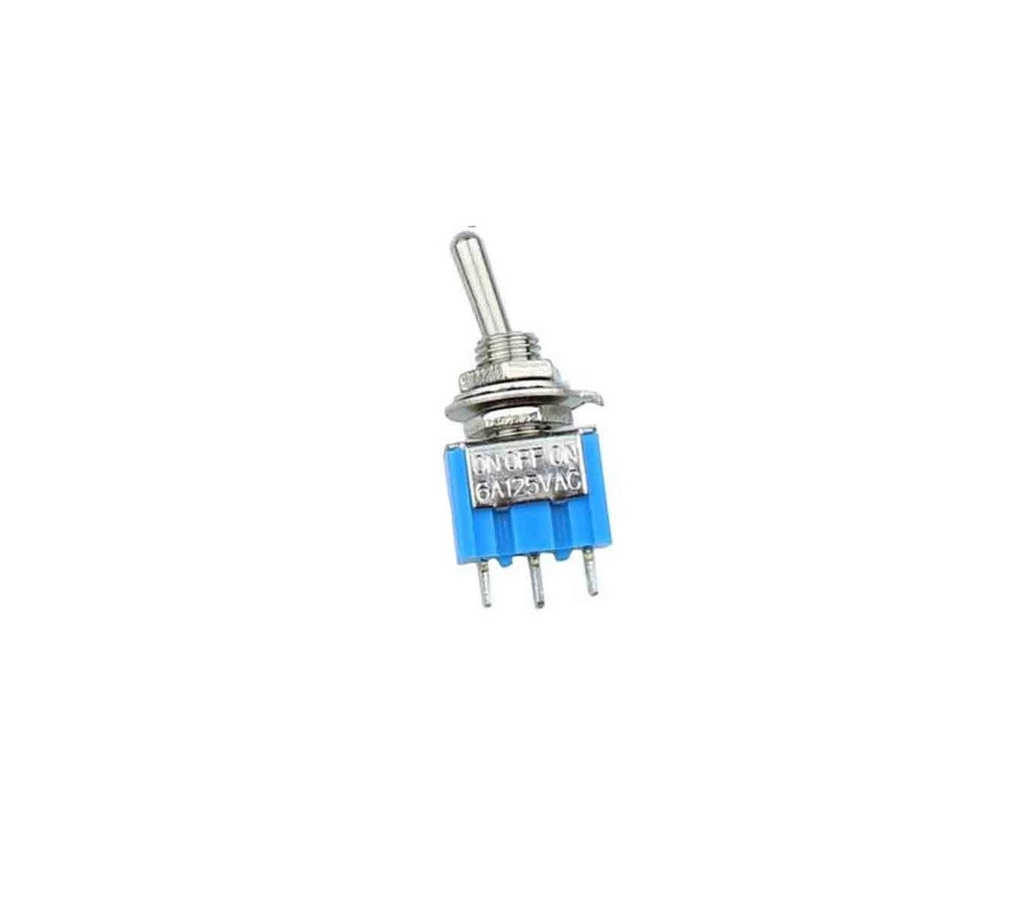

Switch MTS-103 3-Pin On-Off-on 6A 125V 3A 250VAC Mini Blue Toggle Switch
The MTS-103 Mini Blue Toggle Switch is a 3-pin, On-Off-On switch designed for a wide range of electrical and electronic applications. Known for its compact size, high durability, and reliable performance, this switch is ideal for DIY projects, industrial equipment, home appliances, and automotive systems.
Constructed from high-quality materials, it features a flame-retardant shell for enhanced safety and excellent insulation, ensuring stable performance even in demanding environments. Its On-Off-On operation mode allows for 3-position control, making it suitable for circuits requiring two switching positions and an off state.
Package Includes:
- 1 x MTS-103 3-Pin On-Off-On Mini Blue Toggle Switch
Features:
- 3-Pin On-Off-On Design: Offers flexible 3-position control.
- High-Quality Materials: Flame-retardant shell for added safety.
- Excellent Insulation: Ensures stable and secure performance.
- Compact and Durable: Long lifespan of 50,000 cycles.
- Wide Voltage and Current Support: 6A at 125V AC and 3A at 250V AC.
- Versatile Use: Suitable for various electrical, industrial, and DIY applications.
Specifications:
- Model: MTS-103
- Pin Count: 3 pins
- Operation Mode: On-Off-On
- Rated Current: 6A at 125V AC / 3A at 250V AC
- Operating Temperature: -40°C to +85°C
- General Humidity: 85% RH
- Opening Size: 12mm (mounting hole diameter)
- Service Life: 50,000 switching cycles
- Insulation Resistance: >1500MΩ
- Contact Resistance: <0.010Ω
- Withstand Voltage: AC 1000V
- Actuator Color: Blue
Pinout Configuration:
| Pin Number | Function |
|---|---|
| Pin 1 | First Connection Point (On Position 1) |
| Pin 2 | Common (Middle Pin) |
| Pin 3 | Second Connection Point (On Position 2) |
Connection Guide:
- Mount the Switch: Drill a 12mm hole and securely place the switch.
- Connect Wires:
- Pin 1: Connect to the first circuit or load.
- Pin 2: Connect to the power source or common ground.
- Pin 3: Connect to the second circuit or alternate load.
- Test Operation: Toggle the switch to verify correct functionality.
Features:
- 3-Pin On-Off-On Design: Offers flexible 3-position control.
- High-Quality Materials: Flame-retardant shell for added safety.
- Excellent Insulation: Ensures stable and secure performance.
- Compact and Durable: Long lifespan of 50,000 cycles.
- Wide Voltage and Current Support: 6A at 125V AC and 3A at 250V AC.
- Versatile Use: Suitable for various electrical, industrial, and DIY applications.
Specifications:
- Model: MTS-103
- Pin Count: 3 pins
- Operation Mode: On-Off-On
- Rated Current: 6A at 125V AC / 3A at 250V AC
- Operating Temperature: -40°C to +85°C
- General Humidity: 85% RH
- Opening Size: 12mm (mounting hole diameter)
- Service Life: 50,000 switching cycles
- Insulation Resistance: >1500MΩ
- Contact Resistance: <0.010Ω
- Withstand Voltage: AC 1000V
- Actuator Color: Blue
Pinout Configuration:
| Pin Number | Function |
|---|---|
| Pin 1 | First Connection Point (On Position 1) |
| Pin 2 | Common (Middle Pin) |
| Pin 3 | Second Connection Point (On Position 2) |
Connection Guide:
- Mount the Switch: Drill a 12mm hole and securely place the switch.
- Connect Wires:
- Pin 1: Connect to the first circuit or load.
- Pin 2: Connect to the power source or common ground.
- Pin 3: Connect to the second circuit or alternate load.
- Test Operation: Toggle the switch to verify correct functionality.
