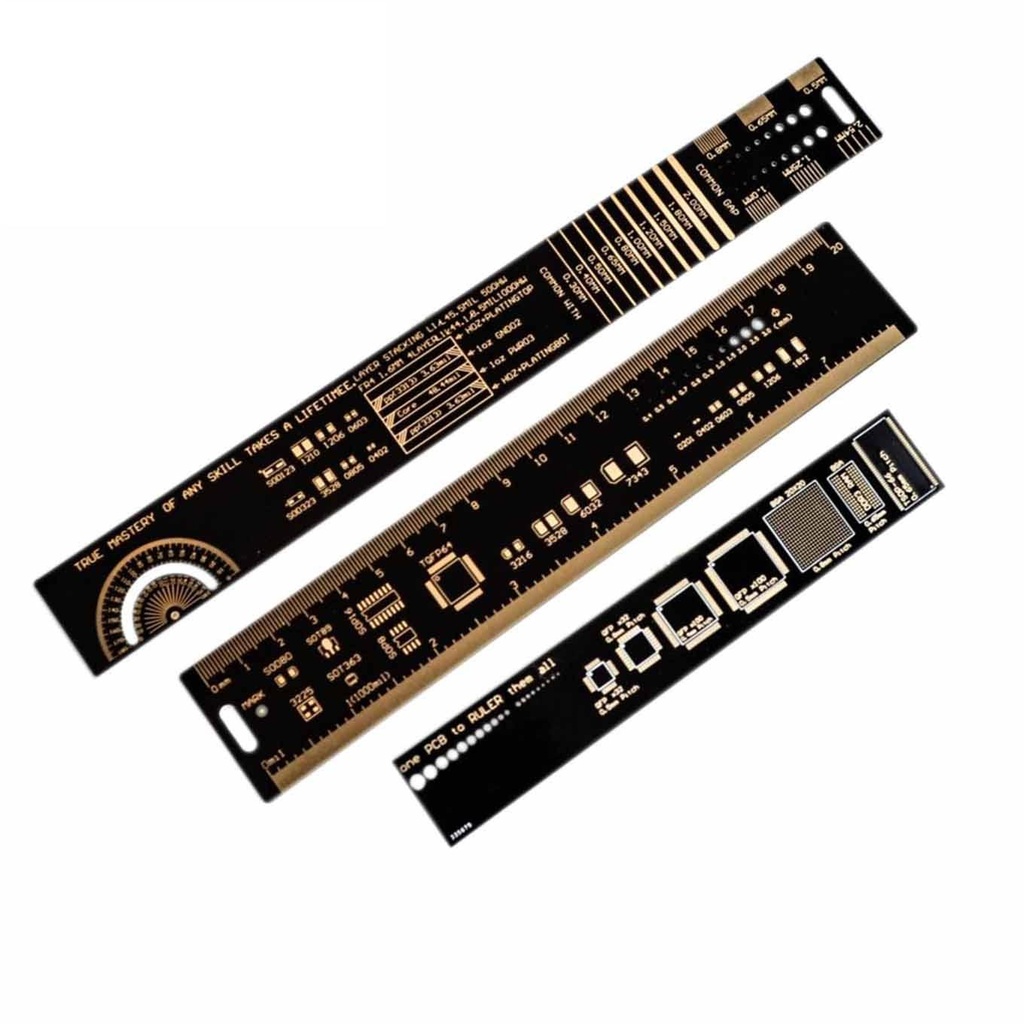

Measuring Tool 15cm Multifunctional PCB Ruler

Measuring Tool 15cm Multifunctional PCB Ruler

This multifunctional PCB ruler is an essential tool for electronic enthusiasts and engineers, especially during the design and prototyping phases. Beyond basic measuring in millimeters and inches, it integrates a variety of key PCB reference information, helping you streamline design decisions and component selection.

Package Includes:

  • 1 × PCB Reference Ruler

10.50 AED 10.50 AED Tax Included
10.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Multifunctional PCB Ruler
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Dual Measurement Units: Supports both millimeter and inch measurements, up to 15cm / 6".
  • Comprehensive Reference: Includes resistor and capacitor SMD package sizes, IC pin spacing tables, drill diameter references, and trace width standards.
  • Durable Material: Made from FR-4 gold-plated PCB material offering high hardness and wear resistance.
  • Compact Design: Combines measurement and reference functions into a single tool, ideal for desktop use or on-the-go troubleshooting.

Specifications:

Front Side:

  • Measuring length: 15 cm / 6"
  • AWG wire size reference: 28 to 8
  • Common SMD resistor & capacitor packages: 0201, 0402, 0603, 0805, 1206, 1812, 3216, 3528, 6032, 7343
  • Common IC packages: SOT23, SOT223, SOT89, SMA, SMB, SMC, HC49, DPAK, D2PAK, SSOP16, QFN24, SOIC8, QFP32

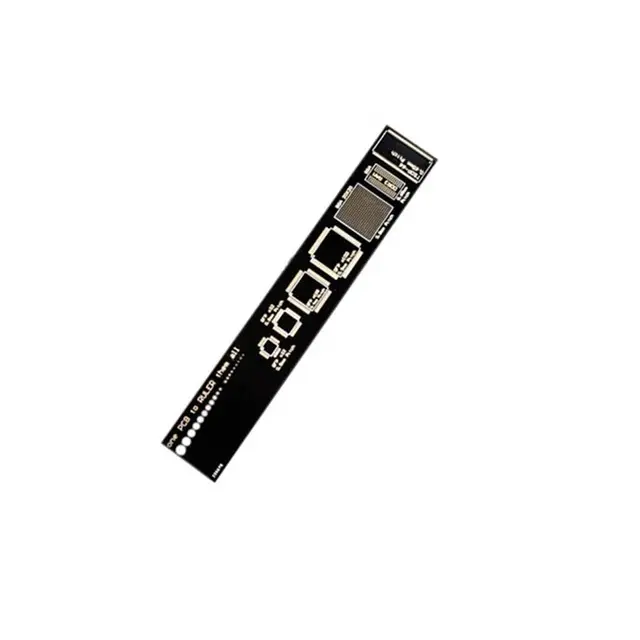

Back Side:

  • QFP x32: 0.5mm / 0.8mm pitch
  • QFP x100: 0.4mm / 0.5mm pitch
  • BGA 20x20: 0.8mm pitch
  • BGA (DDR3 RAM): 0.65mm pitch
  • TSOP-66: 0.65mm pitch





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
