Measuring Tool 20cm Multifunctional PCB Ruler

Measuring Tool 20cm Multifunctional PCB Ruler

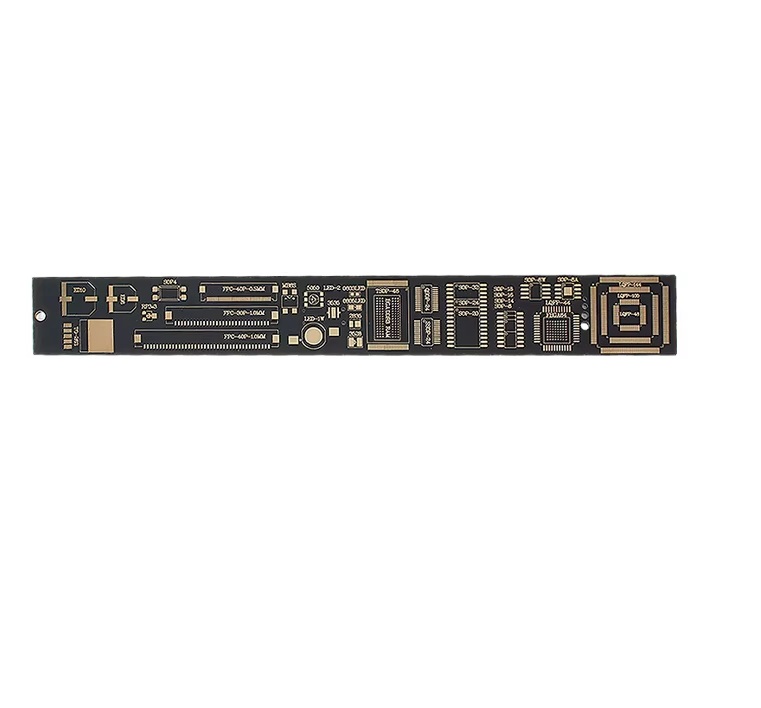

This multifunctional PCB ruler is an essential tool for electronic enthusiasts, especially during the design and prototyping process. It combines measurement functionality with valuable reference information, providing all the necessary tools in a single, compact device. Made from durable PCB material, this ruler is not only accurate but also doubles as a reliable reference guide for chip sizes, IC pin spacing, and common layout standards.

Package Includes:

  • 1 x 20cm Multifunctional PCB Ruler

21.00 AED 21.00 AED Tax Included
21.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Multifunctional PCB Ruler
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Dual measurement system: millimeters and inches.
  • Designed specifically for PCB designers and electronics hobbyists.
  • Integrates references for IC packages, SMD component sizing, angle measurement, and drill diameter sizes.
  • Includes a slot for easy hanging and portability.

Specifications:

Front Side:

  • Measurement Length: 20 cm
  • Inch Measurement: 7.8 inches
  • Commonly Used IC Packages: SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64
  • Resistor & Capacitor SMD Packages: 0201, 0402, 0603, 0805, 1206, 1812, 3216, 3528, 6032, 7343
  • Common Bore Diameter Reference: Multiple drill size references (unit: mm)
  • Slot: Hanging hole for easy storage

Back Side:

  • Line Width Reference: Marked in mil (thousandths of an inch)
  • Angle Measurement: 0–180° angle scale
  • IC Pin Spacing Table: 0.5mm, 0.635mm, 0.65mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
  • Common MOSFET, Diode, and Transistor Packages: SOT23, SOT223, SOT25, TO252, D2PAK, SMA, SMB, SMC
