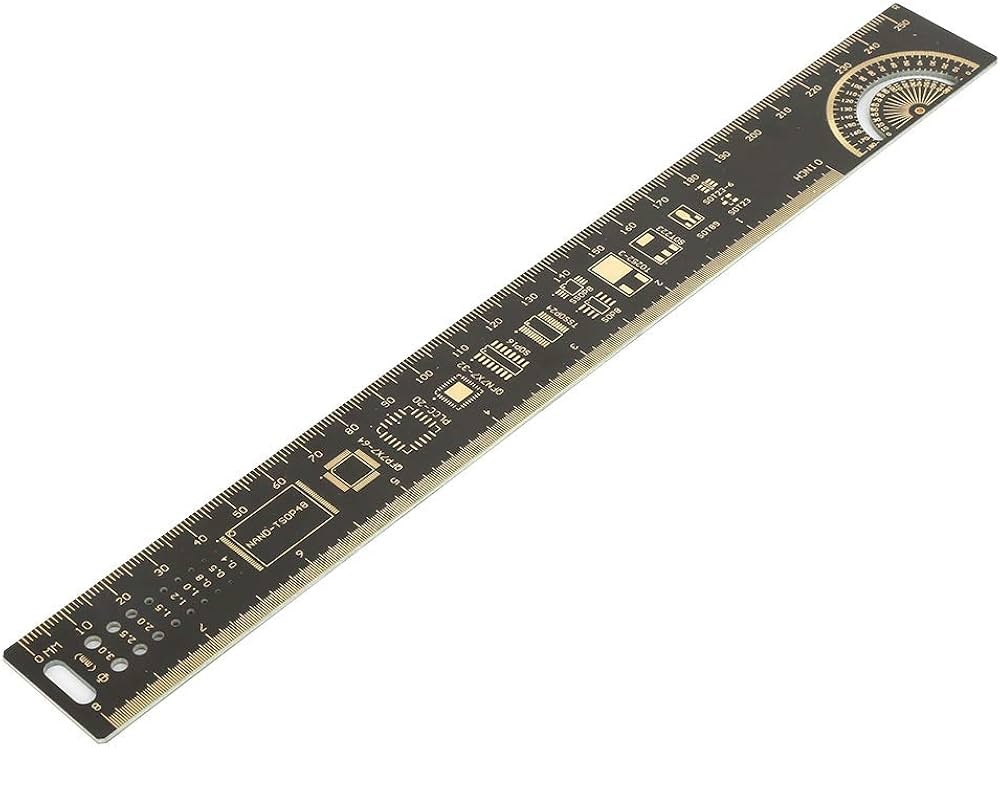

Measuring Tool 25cm Multifunctional PCB Ruler

Measuring Tool 25cm Multifunctional PCB Ruler

This versatile PCB ruler is an essential tool for electronic enthusiasts and PCB designers. Beyond basic measurement, it integrates a wealth of reference information, including angle gauges, component dimensions, IC pin spacing tables, and line width references. Designed from high-quality FR-4 gold-plated PCB material, this ruler combines functionality and durability, making it perfect for prototyping, PCB layout, and everyday use.

Package Includes:

  • 1 x Multifunctional PCB Ruler

21.00 AED 21.00 AED Tax Included
21.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Multifunctional PCB Ruler
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Dual-scale measurement with millimeter and inch units.
  • Integrated angle gauges up to 180 degrees for layout accuracy.
  • Reference tables for IC pin spacings and common chip packages.
  • Displays commonly used drill sizes and line width references.
  • Made from durable, gold-plated FR-4 PCB material.
  • Slot available for easy hanging or carrying.

Specifications:

Front Side:

  • Measurement Length: 25 cm / 20 cm / 15 cm
  • Inch Measurement: 10 in / 7.8 in / 6 in
  • Common IC Packages: NAND_FLASH_TSOP48, QFP7X7-64, PLCC-20, SOP16, TSSOP24, SSOP8, SOP8
  • Common Chip Components: TO252-3, SOT223, SOT89-3, SOT23-6, SOT23-3, SOD123, SOD323, 1210, 3528, 1206, 0805, 0603, 0402, TO92
  • Common Bore Diameter Reference (mm): 3.0, 2.5, 2.0, 1.5, 1.0, 0.8, 0.5, 0.4
  • Includes slot for hanging

Back Side:

  • Line Width Reference (mm): Multiple standard sizes for PCB design
  • Angle Measurement: Full 180° arc reference
  • IC Pin Spacing Table: 0.5 mm, 0.65 mm, 0.8 mm, 1.0 mm, 1.25 mm, 2.54 mm
  • Repeated Bore Diameter References (mm): 3.0, 2.5, 2.0, 1.5, 1.0, 0.8, 0.5, 0.4
