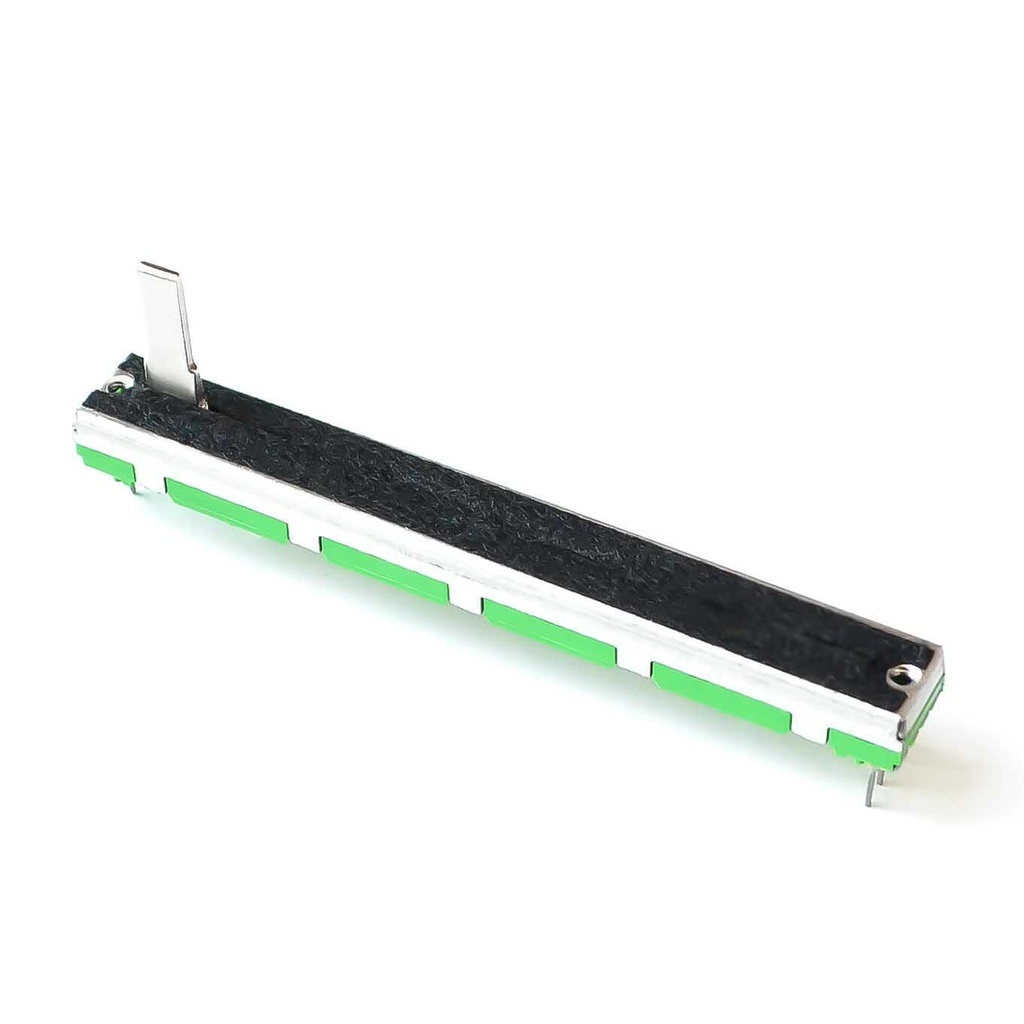

Potentiometer - Analog Slide Position B10k 75mm (Per Piece)

Potentiometer - Analog Slide Position B10k 75mm (Per Piece)

The Sliding Potentiometer is a versatile three-terminal resistor with a sliding contact, designed to function as an adjustable voltage divider. Its linear sliding action provides smooth and precise control, making it ideal for applications such as audio volume controls, lighting adjustments, and various electronic interface inputs.

Package Includes:

  • 1 × B103 10K Ohm Slide Potentiometer

11.55 AED 11.55 AED Tax Included
11.55 AED Tax Included

Not Available For Sale

This combination does not exist.

Slide Variable Resistor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Product Name: Sliding Potentiometer
  • Model: SC6080GH
  • Resistance Value: 10K Ohm (B103)
  • Adjustment Type: Slide adjustment
  • Type: Double linear
  • Material: Carbon Film
  • Body Size: 75 × 9 × 6 mm (2.95 × 0.35 × 0.24 inch) – pins not included
  • Total Height: 27 mm (1.06 inch)

Electrical Parameters:

  • Nominal Resistance: 10K Ohm
  • Rated Power: 0.25W
  • Resistance Tolerance: ±20%
  • Sliding Noise: < 68 mV
  • Resolution: 100%
  • Zero Resistance: 2Ω
  • Contact Resistance: 5Ω
  • Insulation Resistance: 100 MΩ
  • Whole Length: Approx. 75 mm / 3.0 inch

Applications:

  • Volume control in audio systems
  • Lighting dimmers
  • Signal conditioning in analog circuits
  • DIY electronics and user input interfaces
