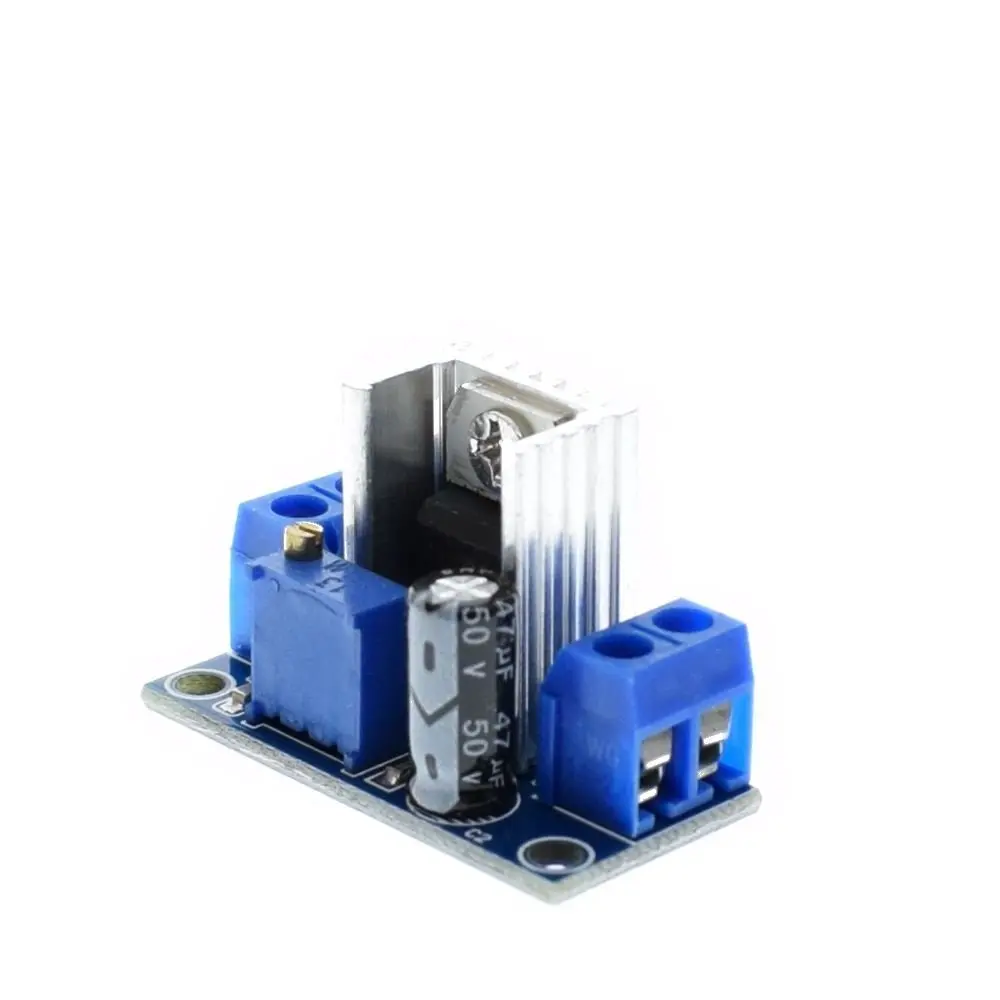

DC-DC Step Down DC Converter Lm317 Regulator Circuit Board Power Supply Module

DC-DC Step Down DC Converter Lm317 Regulator Circuit Board Power Supply Module

The LM317 DC-DC Converter Buck Step Down Circuit Board Module is a linear adjustable voltage regulator designed for various DC power supply applications. Based on the LM317 regulator IC, it offers a wide adjustable output voltage range and stable current supply, making it suitable for powering a range of electronic devices.

This module can handle an output current of up to 1.5A (minimum) with a typical maximum of 2.2A, and can operate over a wide voltage input range of 4.2V to 40V. It's ideal for applications requiring precise voltage control in a compact form.

Package Includes:

  • 1 x LM317 DC-DC Adjustable Buck Converter Module

8.40 AED 8.40 AED Tax Included
8.40 AED Tax Included

Not Available For Sale

This combination does not exist.

Linear Regulator
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Adjustable Voltage Regulator using LM317 IC
  • Linear step-down (buck) regulator design
  • Adjustable Output Voltage Range: 1.2V ~ 37V
  • Wide Input Voltage Range: 4.2V ~ 40V
  • Typical Output Current: 2.2A
  • Minimum Output Current: 1.5A
  • Maximum VI-VO (Input-Output) Voltage Difference: 40V DC
  • Maximum Output Current Formula: 3 / (Input Voltage - Output Voltage)
  • Operating Temperature Range: -55°C to +150°C
  • Frequency Characteristics: 100 MHz

Pinout:

  • VIN: Positive input voltage
  • GND: Ground (common negative)
  • VOUT: Regulated positive output voltage

Applications:

  • Mobile phone charging circuits
  • MP3 / MP4 players
  • PSP and handheld consoles
  • Custom power supply projects
  • DIY electronics requiring adjustable voltage output
