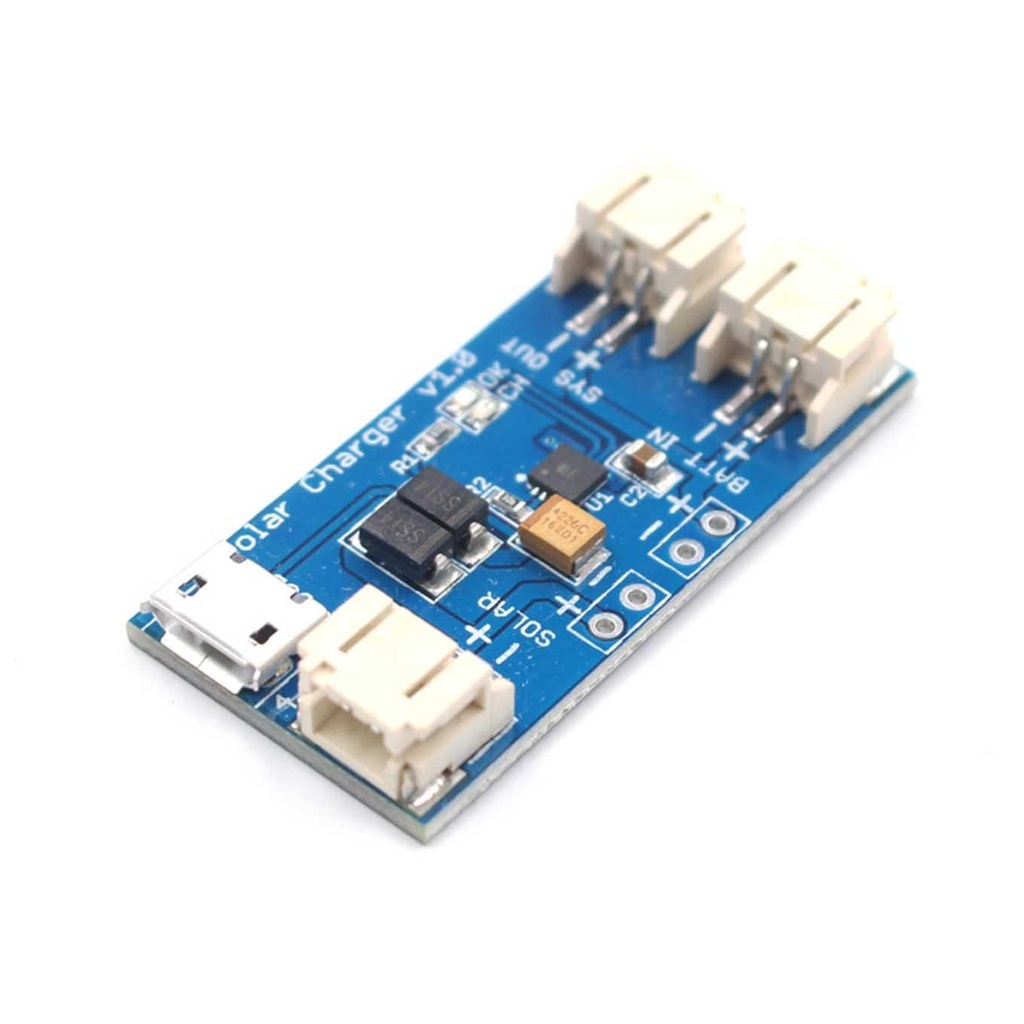

DC-DC Converter Mini USB Solar Lithium Charger Board Module CN3065

DC-DC Converter Mini USB Solar Lithium Charger Board Module CN3065

The Super Mini Solar LiPo Charger is built around the CN3065 single lithium battery charge management chip. It allows you to efficiently harness solar energy to charge your rechargeable LiPo battery. Simply connect your solar panel on one side and your battery on the other to start charging. Designed for a single polymer lithium-ion cell, with the load connected in parallel with the battery. The charger is preset with a maximum charge current of 500mA and supports input voltages between 4.4V and 6V (recommended max input voltage: 6V). Please ensure charging current does not exceed the battery’s rated capacity.

Package List:

  • 1 x Super Mini Solar LiPo Charger v1.0

26.25 AED 26.25 AED Tax Included
26.25 AED Tax Included

Not Available For Sale

This combination does not exist.

Battery Charger Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Solar Panel Input: Accepts 4.4V to 6V input voltage
  • Max Charge Current: Up to 500mA for efficient charging
  • Interface: 2-pin JST connectors (or PH2.0) for easy connection
  • Short Circuit Protection: Built-in for safety
  • Continuous Charge Current: Supports continuous current up to 500mA
  • Battery Status Indication: LED indicators — Red for charging, Green for fully charged
  • USB Charging: Micro-USB connector included for versatile charging
  • Compact Size: 2cm x 4cm, easy to integrate into projects

Specifications:

  • Input Voltage Range: 4.4V - 6V
  • Maximum Charge Current: 500mA
  • Interface: 2-pin JST connectors (or PH2.0)
  • Short Circuit Protection: Yes
  • Continuous Charge Current: Up to 500mA
  • Battery Status Indication: Red (Charging), Green (Charged)
  • USB Charging: Yes, Micro-USB connector
  • Dimensions: 2cm x 4cm
