  3. Current Sensor AC 5A Range Single Phase Active Output Transformer
Default
Current Sensor AC 5A Range Single Phase Active Output Transformer

Current Sensor AC 5A Range Single Phase Active Output Transformer

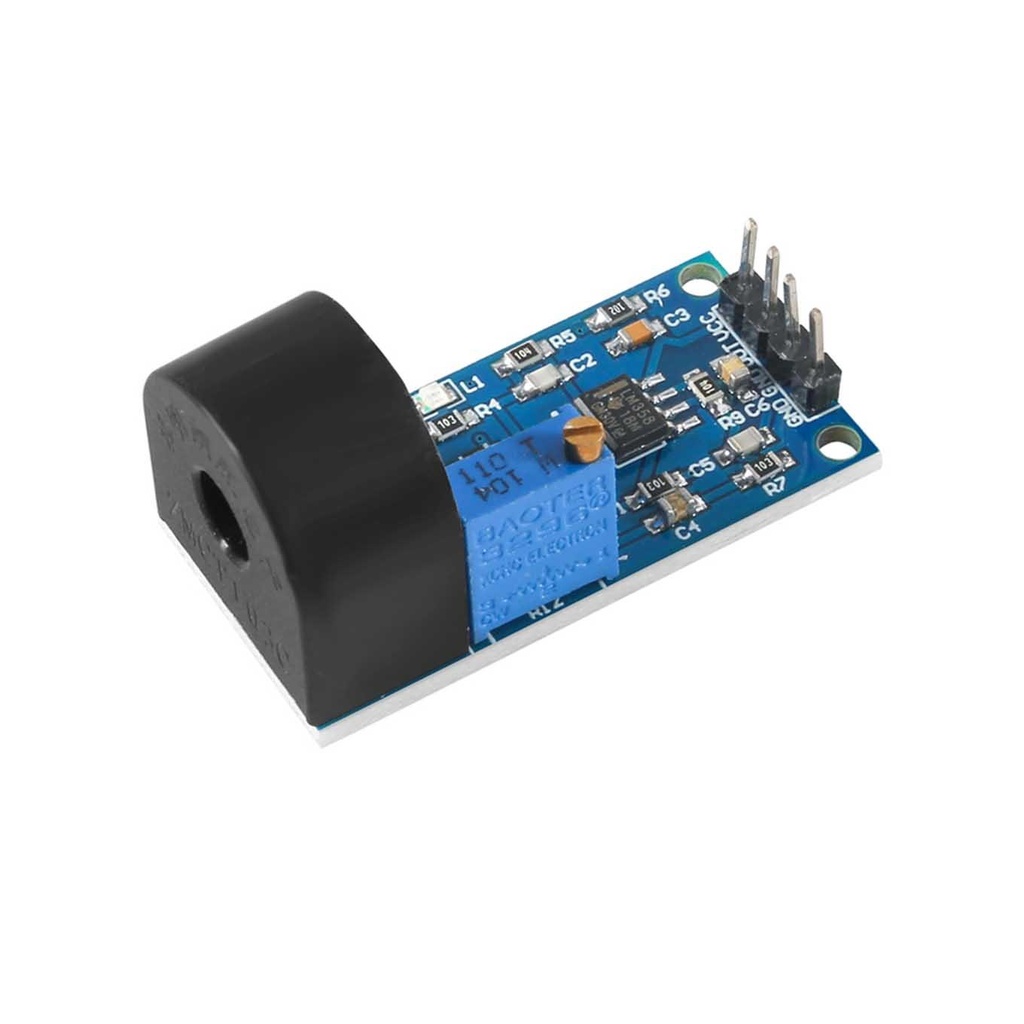

This module features a precision micro current transformer combined with a high-precision op-amp circuit for accurate signal sampling and compensation. It measures AC current up to 5A and outputs an adjustable analog voltage signal. The output voltage can be amplified from 0 to 100 times via an onboard potentiometer, but the output voltage will not exceed half of the supply voltage (VCC). The module operates within a wide supply voltage range of 3 to 35V.

Package Includes

  • 1 x Single-Phase 5A Active Output AC Current Transformer Sensor Module

18.90 AED 18.90 AED Tax Included
18.90 AED Tax Included

Not Available For Sale

This combination does not exist.

Current Sensor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications

  • PCB Size: 38 mm x 18.5 mm
  • Working Voltage: DC 5-30V
  • Rated Input Current: 5A
  • Rated Output Current: 5mA
  • Transformation Ratio: 1000:1
  • Phase Difference (rated input): ≤ 20' (at 100Ω)
  • Linearity Range: 0 ~ 10A (at 100Ω)
  • Linearity: 0.2%
  • Precision Rating: 0.2
  • Isolation Voltage: 3000V measurement
  • Sealing Material: Epoxy Resin
  • Operating Temperature: -40 °C to +70 °C

Pinout

  • VCC: Module power supply – 5V
  • OUT: Module output signal
  • GND: Ground
  • GND: Ground

Application

This module is used for measuring AC current within a 5A range.
