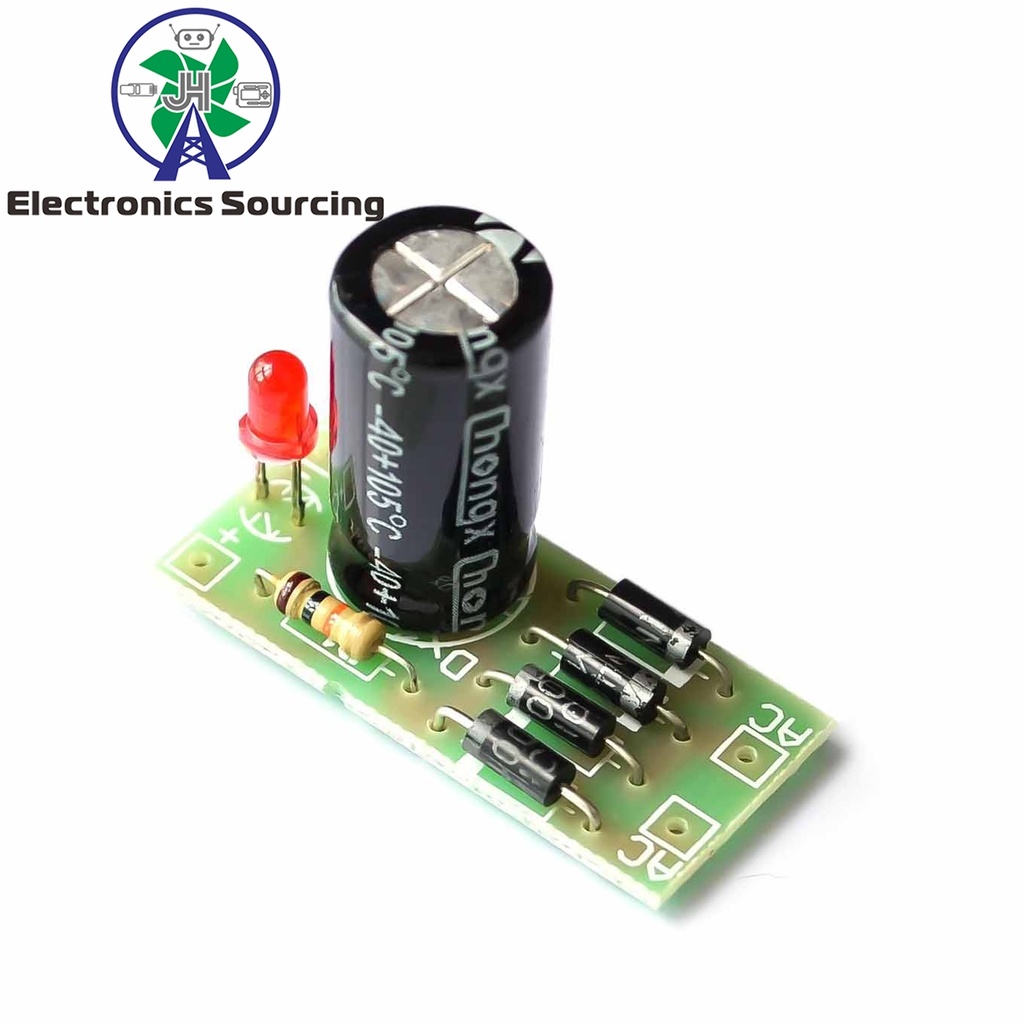

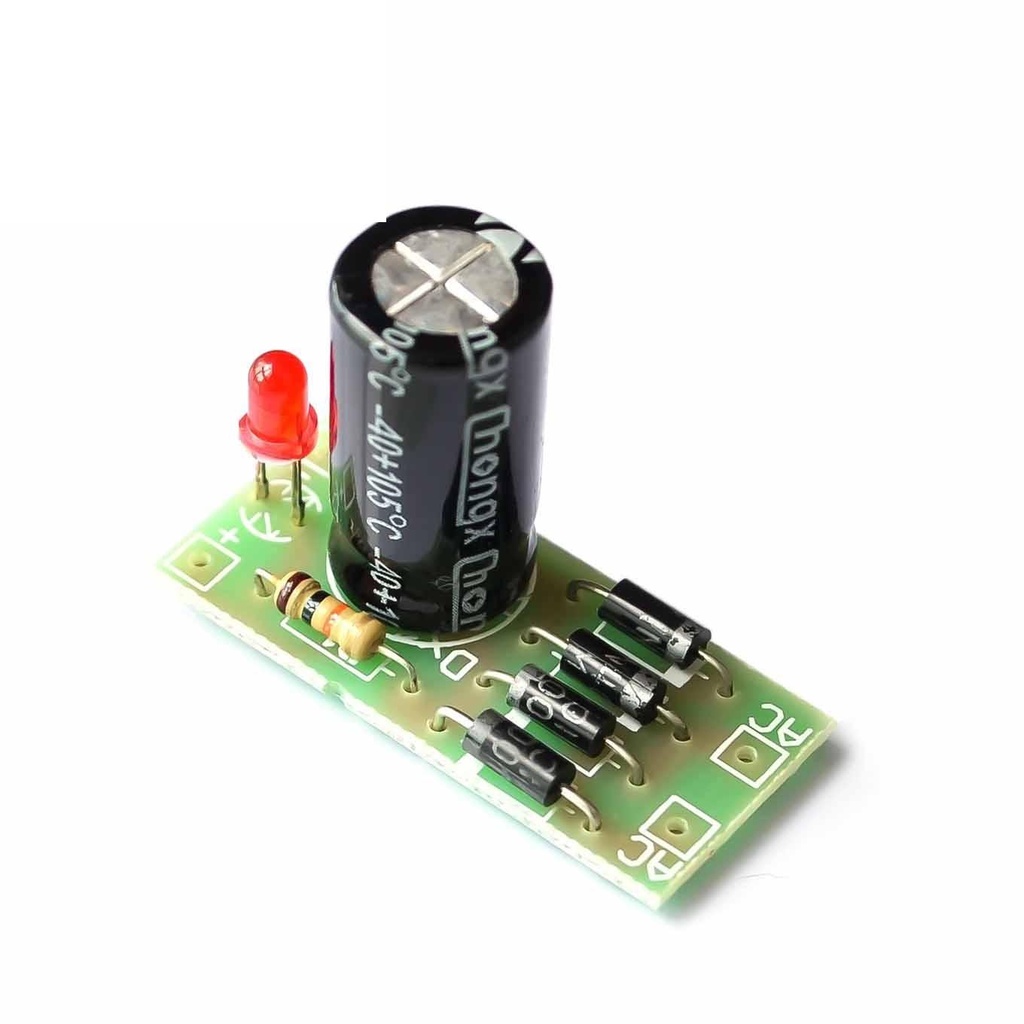

Diode 1n4007 Full Bridge Rectifier Filter Power Conversion Module

Diode 1n4007 Full Bridge Rectifier Filter Power Conversion Module

This streamlined rectifier filter module is designed for small rectifier output filtering applications where power requirements are moderate. Its compact design fits easily into small electrical boxes. The PCB includes a power indicator light to intuitively show power status when the supply is turned on.

Package Included

  • 1 x AC to DC power conversion module

6.30 AED 6.30 AED Tax Included
6.30 AED Tax Included

Not Available For Sale

This combination does not exist.

Fast Recovery Rectifier
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Product Features

  • AC to DC power conversion module
  • 1N4007 bridge rectifier filter
  • AC input voltage range: 6V – 32V (Capacitor: 50V 470µF)
  • Output voltage: 12V DC
  • Maximum input/output current: 1A
  • Frequency range: 50-60Hz
  • Cable length: 90 mm
  • PCB size: 28 x 13 x 1.2 mm

Note: The rectified output voltage can be estimated by output = input × 1.414. For example, with a 12V AC input, the output voltage (no load) would be approximately 16.968V. Actual voltage may vary depending on load and conditions.



Images

Rectifier Filter Module Image 1 Rectifier Filter Module Image 2 Rectifier Filter Module Image 3



Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
