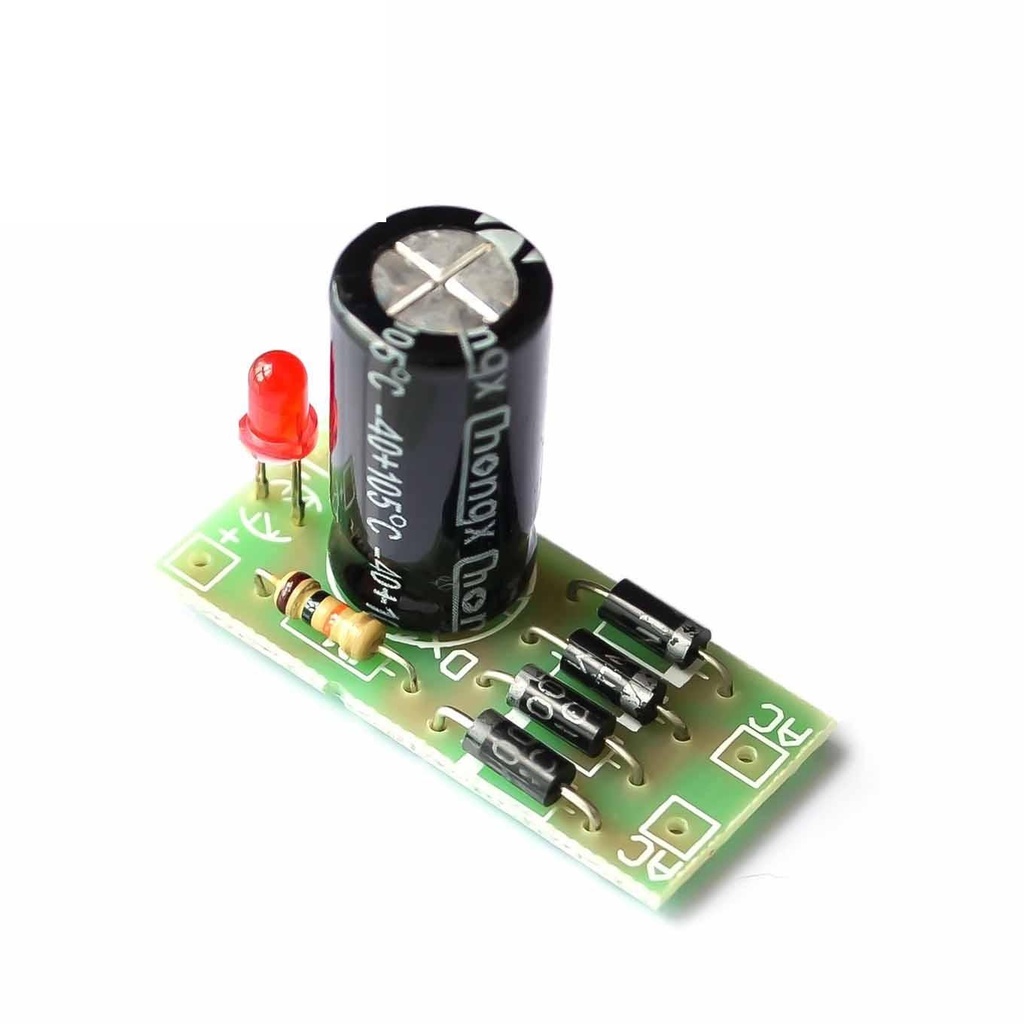

Diode 1n4007 Full Bridge Rectifier Filter Power Conversion Module
This streamlined rectifier filter module is designed for small rectifier output filtering applications where power requirements are moderate. Its compact design fits easily into small electrical boxes. The PCB includes a power indicator light to intuitively show power status when the supply is turned on.
Package Included
- 1 x AC to DC power conversion module
Product Features
- AC to DC power conversion module
- 1N4007 bridge rectifier filter
- AC input voltage range: 6V – 32V (Capacitor: 50V 470µF)
- Output voltage: 12V DC
- Maximum input/output current: 1A
- Frequency range: 50-60Hz
- Cable length: 90 mm
- PCB size: 28 x 13 x 1.2 mm
Note: The rectified output voltage can be estimated by output = input × 1.414. For example, with a 12V AC input, the output voltage (no load) would be approximately 16.968V. Actual voltage may vary depending on load and conditions.
