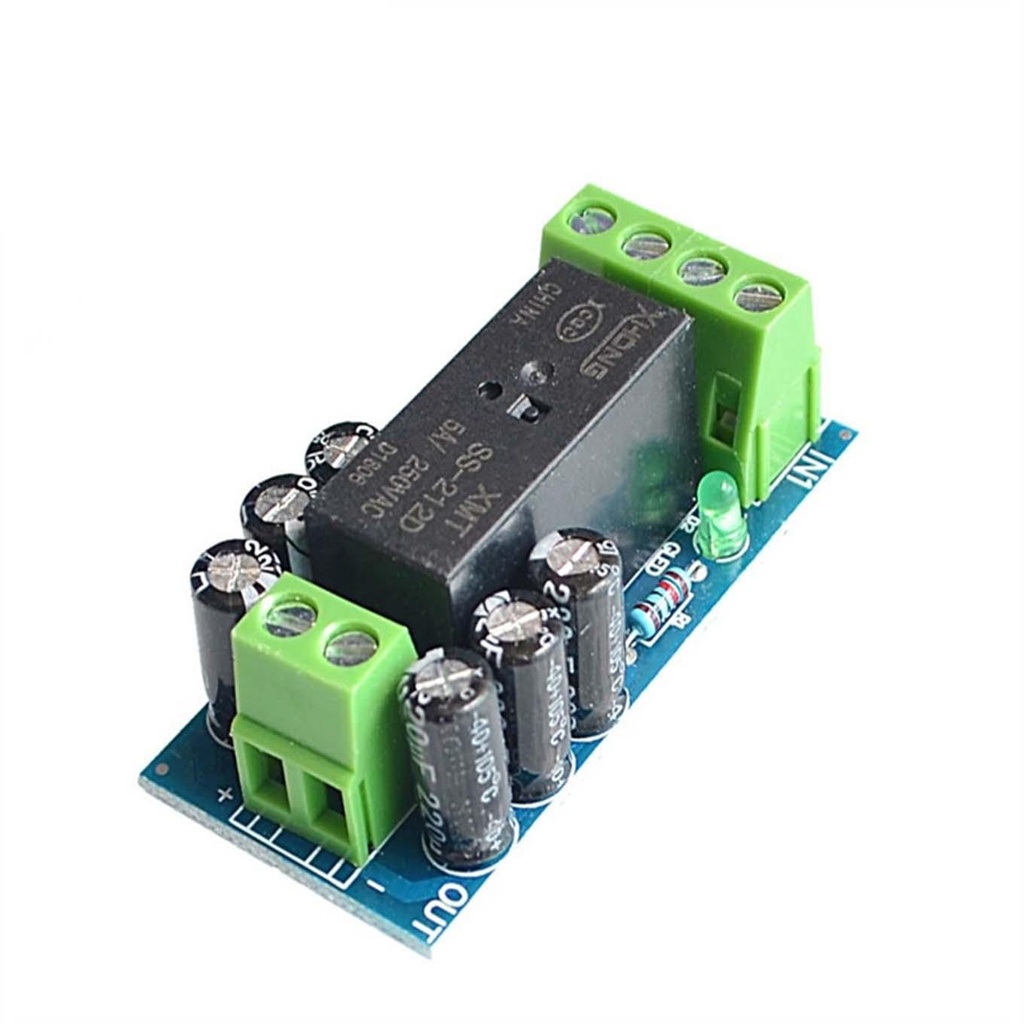

Relay Module Xh-m350 Backup Battery Switching High Power Board Automatic Switching Battery Power Module 12v 150w
The XH-M350 module is designed as an emergency switch for storage batteries. It utilizes a high-quality industrial-grade relay capable of handling up to 12A of control current. When operated at 12V, it can support up to 150W of power. This module is widely used in incubators, computers, network systems, and various automation control setups.
Features
- High-Current Support: Capable of handling up to 12A current, suitable for high-power switching.
- Industrial Relay: Equipped with a durable and reliable relay for long-term use.
- Wide Application: Suitable for emergency control in battery-based systems, incubators, network devices, and more.
- Compact Design: Small form factor ideal for embedded and space-constrained applications.
Specifications
| No. | Parameter | Value |
|---|---|---|
| 1 | Product Name | Storage Battery Emergency Switch Module |
| 2 | Model | XH-M350 |
| 3 | Control Voltage | DC 12V |
| 4 | Control Current | 12A |
| 5 | Support Power | 150W |
| 6 | Size | 54 x 26.6 mm |
Working Principle Diagram
Tested by ICStation's Outstanding Partner Treicer100
