Current To Voltage Converter Module

Current To Voltage Converter Module

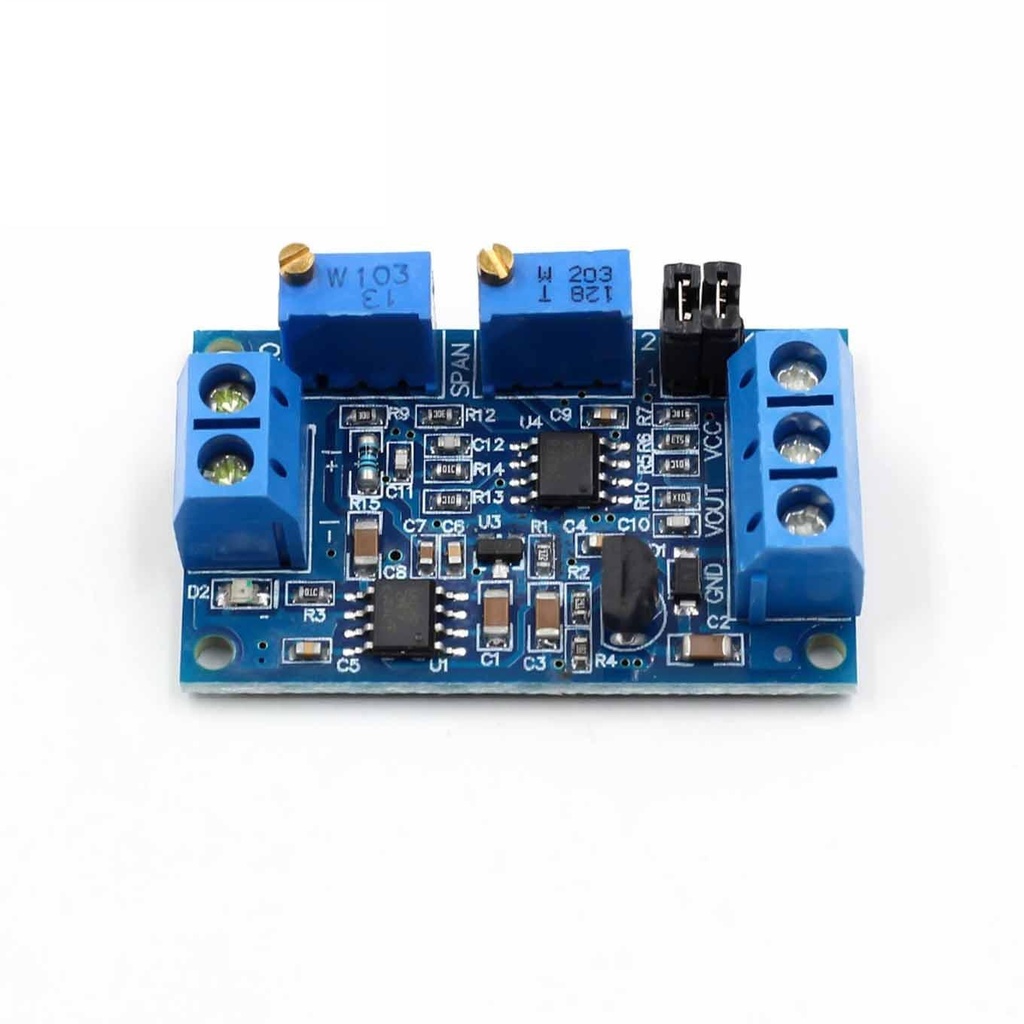

This Current to Voltage Converter Module transforms 0-20mA or 4-20mA current signals into corresponding voltage outputs (0-3.3V, 0-5V, or 0-10V). Ideal for industrial applications, it offers high precision, excellent stability, and adjustable zero/span calibration.

Package Includes

  • 1 x Current to Voltage Converter Module (0/4-20mA to 0-3.3V, 5V, 10V)

36.00 AED 36.00 AED Tax Included
36.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Current Voltage Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Wide Supply Voltage Range: Operates from 7V to 36V, ensuring compatibility with diverse setups.
  • Adjustable Zero and Range: Fine-tune output using built-in potentiometers for zero and span settings.
  • High Stability: Maintains consistent performance under varying conditions.
  • Excellent Linearity: Provides accurate voltage output corresponding to input current.
  • Industrial Grade: Built to withstand harsh industrial environments.
  • High-Precision Sampling: Uses a precision resistor for accurate current signal conversion with minimal temperature drift.

Specifications

  • Current Input: 0-20mA and 4-20mA
  • Voltage Output: 0-3.3V, 0-5V, 0-10V
  • Operating Voltage: 7V–36V DC (≥12V for 10V output)
  • Weight: 50g

Applications

Suitable for analog signal monitoring, automation systems, industrial control, and PLC interfaces requiring accurate current-to-voltage conversion.

Instructions for Use

  1. Connect wiring as per module specifications.
  2. Ensure supply voltage is within 7V to 36V (≥12V for 10V output).
  3. On power-up, D2 indicator LED should light up; if not, check connections.
  4. The module includes reverse polarity protection for safe operation.
  5. Calibrate output voltage:
    • At 0mA or 4mA input: Adjust ZERO potentiometer to set minimum VOUT (e.g., 0.0V).
    • At 20mA input: Adjust SPAN potentiometer to set maximum VOUT (3.3V, 5V, or 10V).

Range Selection (J1 Jumper Settings)

For 4–20mA Input:

  • 0–2.5V: Short J1 pins 1-2 and 3-4
  • 0–3.3V: Leave J1 pins 1-2 and 3-4 open
  • 0–5V: Short J1 pins 1-2 and 3-4
  • 0–10V: Short J1 pins 1-2; leave 3-4 open

For 0–20mA Input:

  • 0–3.3V: Short J1 pins 1-2 and 3-4
  • 0–5V: Short J1 pins 1-2 and 3-4
  • 0–10V: Short J1 pins 1-2; leave 3-4 open
