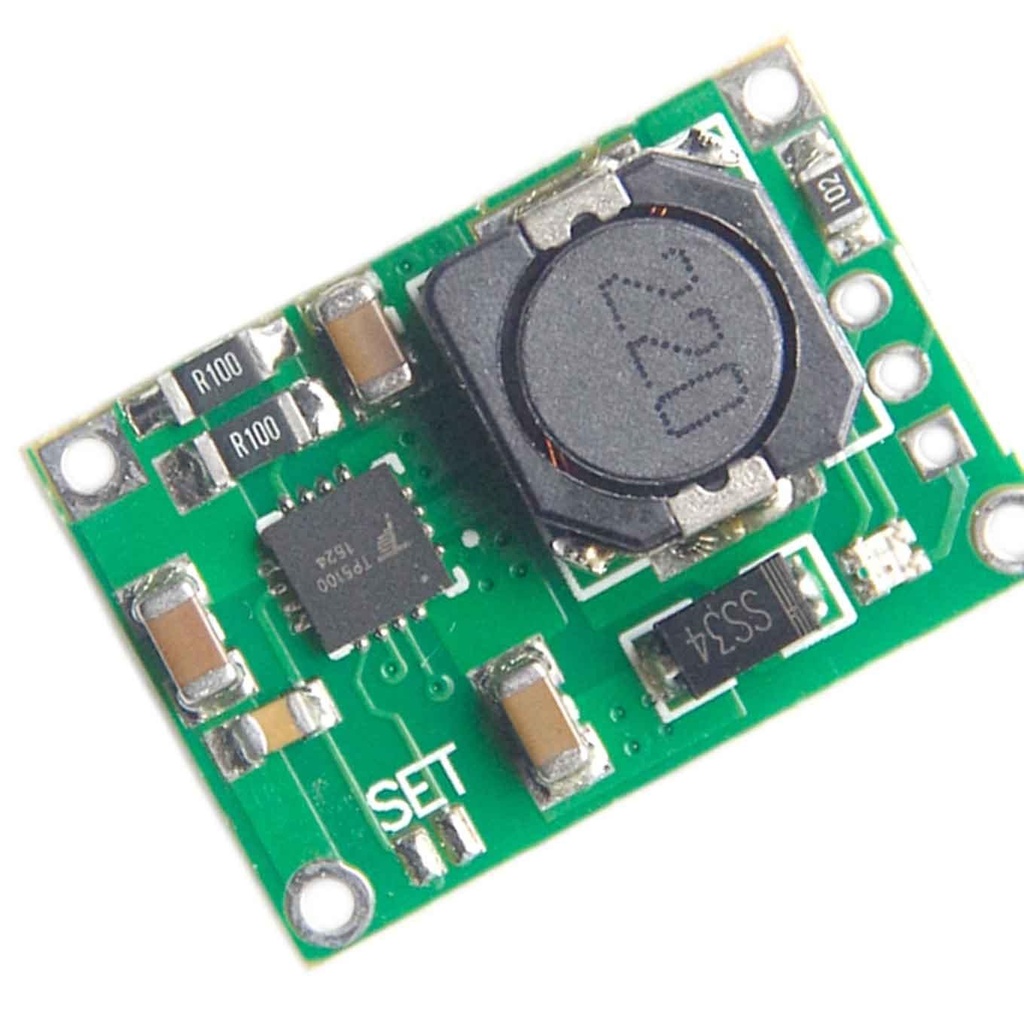

DC-DC Converter Tp5100 Single Lithium Ion Battery charger Management Module

DC-DC Converter Tp5100 Single Lithium Ion Battery charger Management Module

The TP5100 charging module is a high-efficiency power solution for charging one or two lithium batteries. With a compact design and integrated protection features, it's ideal for Arduino projects, battery-powered systems, and portable electronics.

Package Includes:

  • 1 x TP5100 2A Single and Double Lithium Battery Charger Module

Battery Charger Module
11.55 AED 11.55 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Input Voltage: 5V to 15V DC
  • Dual Charging Modes: Supports 4.2V for single-cell and 8.4V for dual-cell lithium batteries
  • Charge Status Indicators: Blue LED (charged or unloaded), Red LED (charging)
  • Programmable Charge Current: 0.1A to 2A for flexible charging options
  • Precharge Current: Adjustable from 10% to 100%
  • Built-in Protections: Overcurrent, undervoltage, overtemperature, reverse battery, short circuit
  • Switching Frequency: 400kHz – suitable for use with inductance ≥ 20uH
  • PWR_ON: Battery power switch control function

Specifications:

  • Input Voltage: 5V to 15V DC
  • Charging Voltage: 4.2V by default, switchable to 8.4V via solder pads ("SET")
  • Maximum Charge Current: 2A
  • Precharge Current: 10%–100%
  • Operating Voltage Range: Up to 18V
  • Switching Frequency: 400kHz
  • Dimensions: 25mm x 17mm x 5mm (L x W x H)
