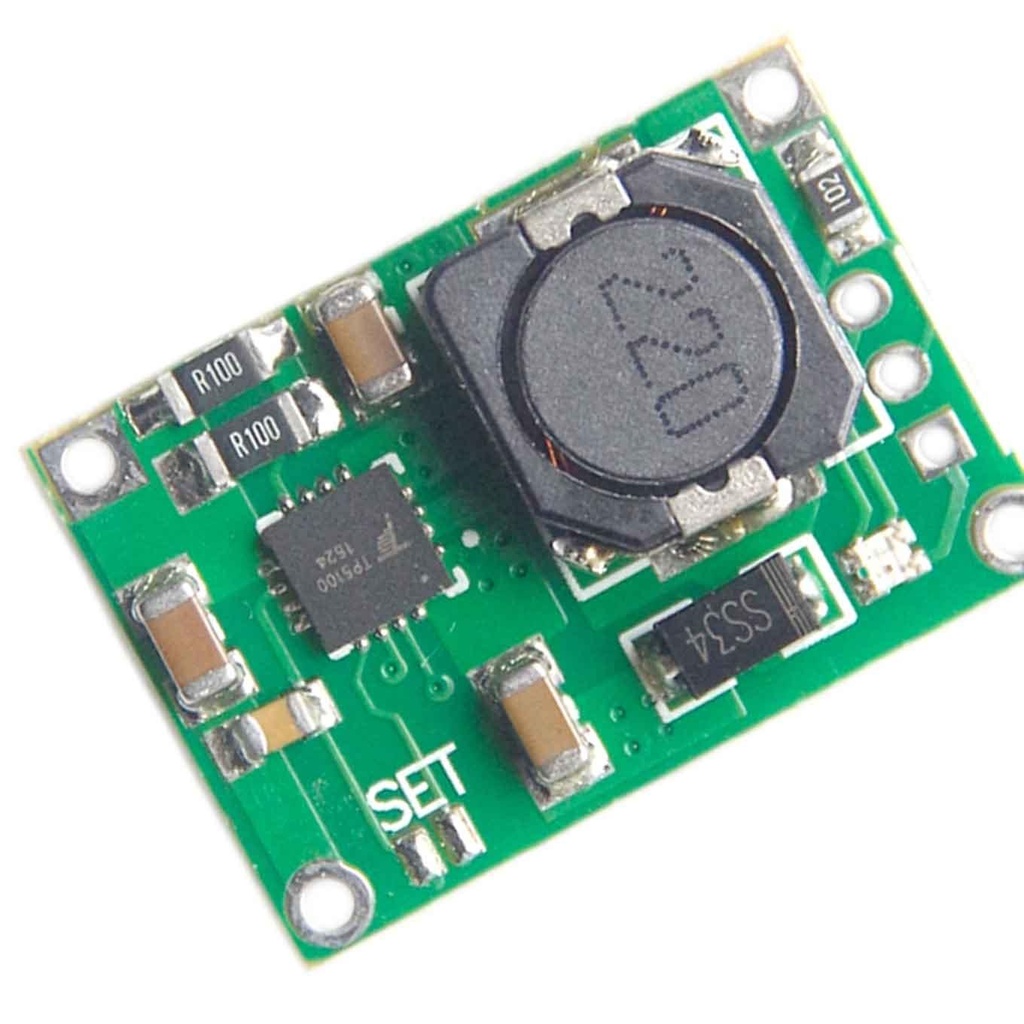

DC-DC Converter Tp5100 Single Lithium Ion Battery charger Management Module

DC-DC Converter Tp5100 Single Lithium Ion Battery charger Management Module

The TP5100 charging module is a high-efficiency power solution for charging one or two lithium batteries. With a compact design and integrated protection features, it's ideal for Arduino projects, battery-powered systems, and portable electronics.

Package Includes:

  • 1 x TP5100 2A Single and Double Lithium Battery Charger Module

11.55 AED 11.55 AED Tax Included
11.55 AED Tax Included

Not Available For Sale

This combination does not exist.

Battery Charger Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Input Voltage: 5V to 15V DC
  • Dual Charging Modes: Supports 4.2V for single-cell and 8.4V for dual-cell lithium batteries
  • Charge Status Indicators: Blue LED (charged or unloaded), Red LED (charging)
  • Programmable Charge Current: 0.1A to 2A for flexible charging options
  • Precharge Current: Adjustable from 10% to 100%
  • Built-in Protections: Overcurrent, undervoltage, overtemperature, reverse battery, short circuit
  • Switching Frequency: 400kHz – suitable for use with inductance ≥ 20uH
  • PWR_ON: Battery power switch control function

Specifications:

  • Input Voltage: 5V to 15V DC
  • Charging Voltage: 4.2V by default, switchable to 8.4V via solder pads ("SET")
  • Maximum Charge Current: 2A
  • Precharge Current: 10%–100%
  • Operating Voltage Range: Up to 18V
  • Switching Frequency: 400kHz
  • Dimensions: 25mm x 17mm x 5mm (L x W x H)
