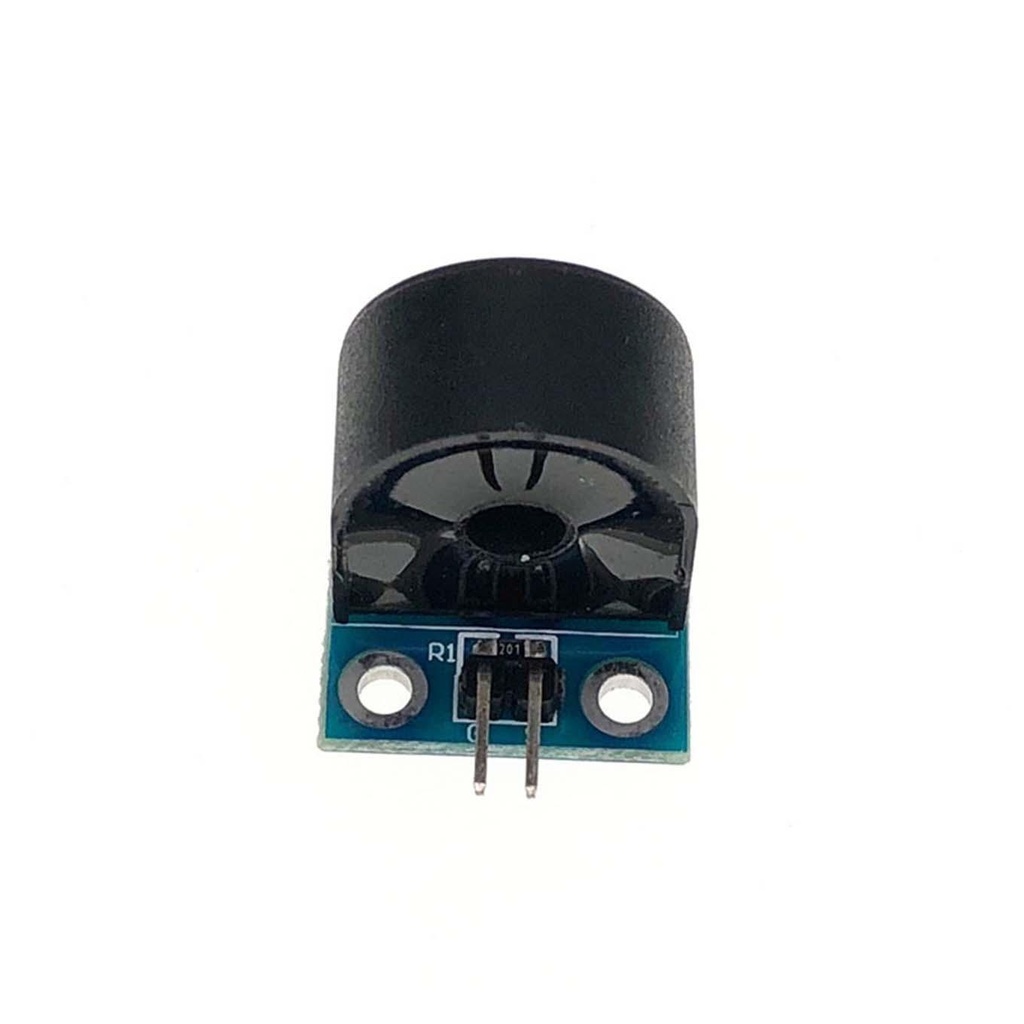

Current AC Single-phase Transformer Module

Current AC Single-phase Transformer Module

Measuring AC current with an Arduino can be a little tricky, but with the TA12-100 current transformer module, it becomes much more manageable. This module features a precision micro current transformer and is ideal for sensing AC current up to 5A. It outputs a small analog signal (5mA) proportional to the current, which can be easily read by an Arduino or similar microcontroller. Ideal for energy monitoring and DIY current-sensing applications.
11.55 AED 11.55 AED Tax Included
11.55 AED Tax Included

Not Available For Sale

This combination does not exist.

Current Sensor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Onboard precision micro current transformer
  • Includes onboard sampling resistor
  • Analog output: 5A input corresponds to 5mA output
  • Compact design, ideal for integration into Arduino projects

Specifications:

  • Primary Current (Rated): 5A at 50/60 Hz
  • Maximum Primary Current: 20A
  • Turns Ratio (Np:Ns): 1:2500
  • Current Ratio: 5A:2mA
  • Output Signal: Analog
  • Winding DC Resistance (at 20°C): 155 Ω
  • Accuracy: ±2% (@RL ≤ 10 Ω)
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -45°C to +90°C
  • Dielectric Withstanding Voltage: 4,000V / 1mA / 1 sec
  • PCB Dimensions: 18.3mm x 17mm

Applications:

  • AC current measurement with Arduino or other microcontrollers
  • Energy monitoring systems
  • Smart home automation and power sensing
  • DIY electrical safety and load detection projects
