Transistor Mos Field-effect Trigger Switch Driver Pwm Regulating Electronic Switch Control Module

Transistor Mos Field-effect Trigger Switch Driver Pwm Regulating Electronic Switch Control Module

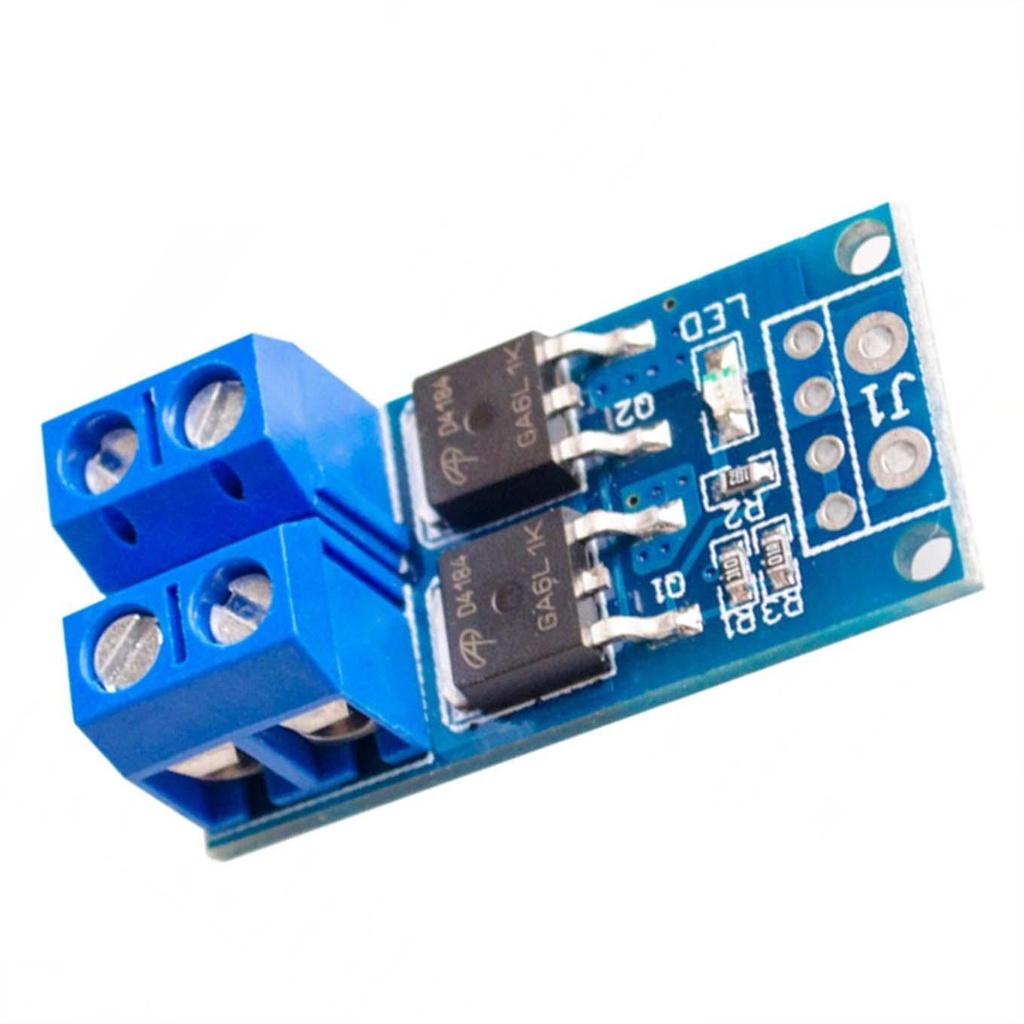

This high-power MOSFET trigger switch driver module is designed for controlling high current and power devices using field-effect transistor (FET) switching. Utilizing imported dual MOSFETs in parallel, it achieves low internal resistance, supports high currents up to 15A at 400W (at room temperature), and ensures stable and reliable performance for demanding applications.

Package Includes

  • 1 × High Power MOSFET Trigger Switch Driver Module

8.40 AED 8.40 AED Tax Included
8.40 AED Tax Included

Not Available For Sale

This combination does not exist.

Mosfet Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Dual MOSFET Output: Uses imported parallel MOSFETs for low resistance and enhanced power handling.
  • High Power Capability: Supports 15A continuous current at 400W without extra cooling, and up to 30A with auxiliary cooling.
  • PWM Control Support: Easily control motor speed or light brightness using PWM input signals (0–20kHz).
  • Wide Voltage Range: Operates from DC 5V to 36V input voltage for broad application support.
  • Microcontroller Compatible: Triggerable via 3.3V–20V digital signals, ideal for Arduino, PLCs, and other microcontrollers.
  • Compact Design: Small and efficient board layout for easy integration into various electronic projects.

Specifications

  • Operating Voltage: DC 5V – 36V
  • Trigger Voltage (Control Signal): DC 3.3V – 20V
  • PWM Signal Frequency Support: 0 – 20kHz
  • Output Power: 400W
  • Continuous Current: 15A (room temperature)
  • Max Current (with cooling): Up to 30A
  • Operating Temperature: -40°C to +85°C
  • Module Dimensions: 34mm × 17mm × 12mm

Applications

  • DC Motor Speed Control
  • LED Lighting Dimming
  • Micro Pumps
  • Solenoid Valve Control
  • High Power Switching Applications
