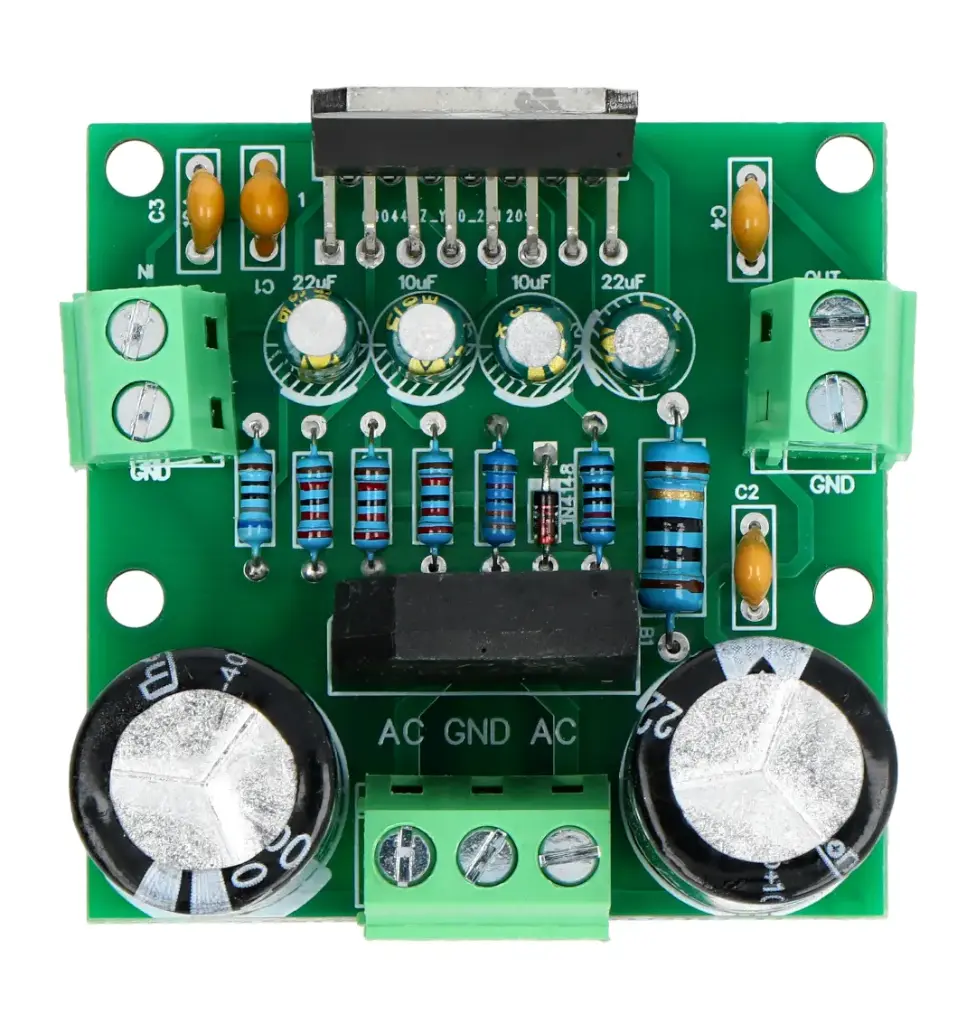

Audio Amplifier Module Board 100W Class AB 32V Mono Power Amplifier TDA7293
This dependable and high-performance amplifier module is built around the TDA7293 chip, a monolithic integrated circuit housed in a Multiwatt15 package, ideal for Hi-Fi audio applications. With excellent output power and wide voltage support, it is suitable for both 4Ω and 8Ω speaker loads. Designed for low-impedance loads and minimal heat dissipation, the amplifier delivers clean and powerful sound while maintaining system stability.
Package Includes
- 1 × 100W Digital Audio Amplifier Board (TDA7293 Chip)
Features
- High Power Output: Delivers up to 100W of audio output for 4Ω–8Ω speaker loads.
- Wide Voltage Support: Operates on a supply voltage range from AC 12V to 32V, making it versatile for different audio setups.
- TDA7293 Chip: High-fidelity Class AB audio amplifier chip with strong output current capability and wide voltage range.
- Built-in Mute with Turn-On Delay: Eliminates pop and click noises during power-on and shutdown for improved audio experience.
- Sturdy Filter Capacitor: Equipped with a 2200μF / 50V electrolytic capacitor for stable power filtering and smooth performance.
- Compact Size: Small footprint for easy integration into audio systems and speaker enclosures.
Specifications
- Chip: TDA7293
- Power Supply: AC 12V – 32V
- Channel Type: Single Channel
- Output Power: 100W
- Load Impedance: 4Ω – 8Ω
- Input Impedance: 100kΩ
- Frequency Range: 20Hz – 20kHz
- Module Size: 60 × 45 × 32 mm
Applications
- DIY Hi-Fi amplifier systems
- Home audio systems
- Speaker projects
- Portable PA systems
