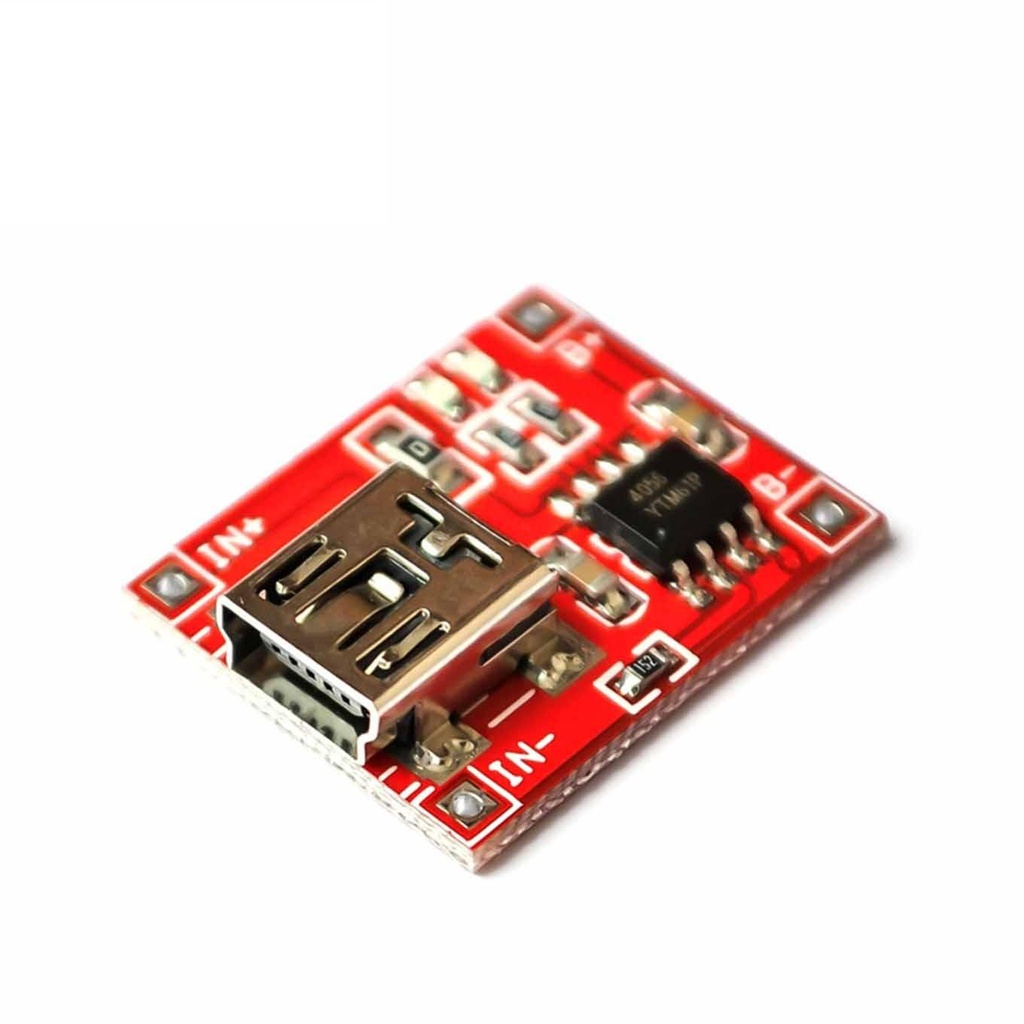

DC-DC Converter Tp4056 1A Lipo Battery charger Module Mini USB Red

DC-DC Converter Tp4056 1A Lipo Battery charger Module Mini USB Red

This module is designed to charge single-cell lithium batteries or multiple parallel-connected lithium batteries using a USB port. It features LED indicators for real-time charging status and supports a maximum charging current of 1A.
8.40 AED 8.40 AED Tax Included
8.40 AED Tax Included

Not Available For Sale

This combination does not exist.

Battery Charger Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Can charge single-cell or multi-parallel lithium batteries via USB
  • MINI USB interface for direct charging, similar to a phone charger
  • Voltage input wiring pads retained for DIY projects
  • LED indicators: Red for charging, Green for fully charged

Specifications

  • Input Voltage: 5V
  • Full Charging Voltage: 4.2V
  • Max Output Current: 1A
  • Charging Precision: ±1.5%
  • Operating Temperature: -10°C ~ +85°C
  • Input Interface: MINI USB
  • Power Indicator: Red (charging), Green (fully charged)
  • Item Size: Approx. 25 x 19 mm
  • Compatible with 3.6V/3.7V 18650, polymer, and other lithium batteries

Current Regulation

RPROG (kΩ) IBAT (mA)
30k 50mA
20k 70mA
10k 130mA
5k 250mA
4k 300mA
3k 400mA
2k 580mA
1.66k 690mA
1.5k 780mA
1.33k 900mA
1.2k 1000mA

Cautions

  1. Ensure the battery is properly connected.
  2. Do not reverse the output connection to avoid burning the chip.
  3. Use adequately thick and short wires for connections.
  4. Only connect the current meter in series with the 5V input.
  5. Recommended charging current is about 37% of battery capacity (e.g., 400mA for 1000mAh battery).
  6. High voltage protection: If input voltage exceeds 5V, charging current is automatically reduced to protect the chip.
