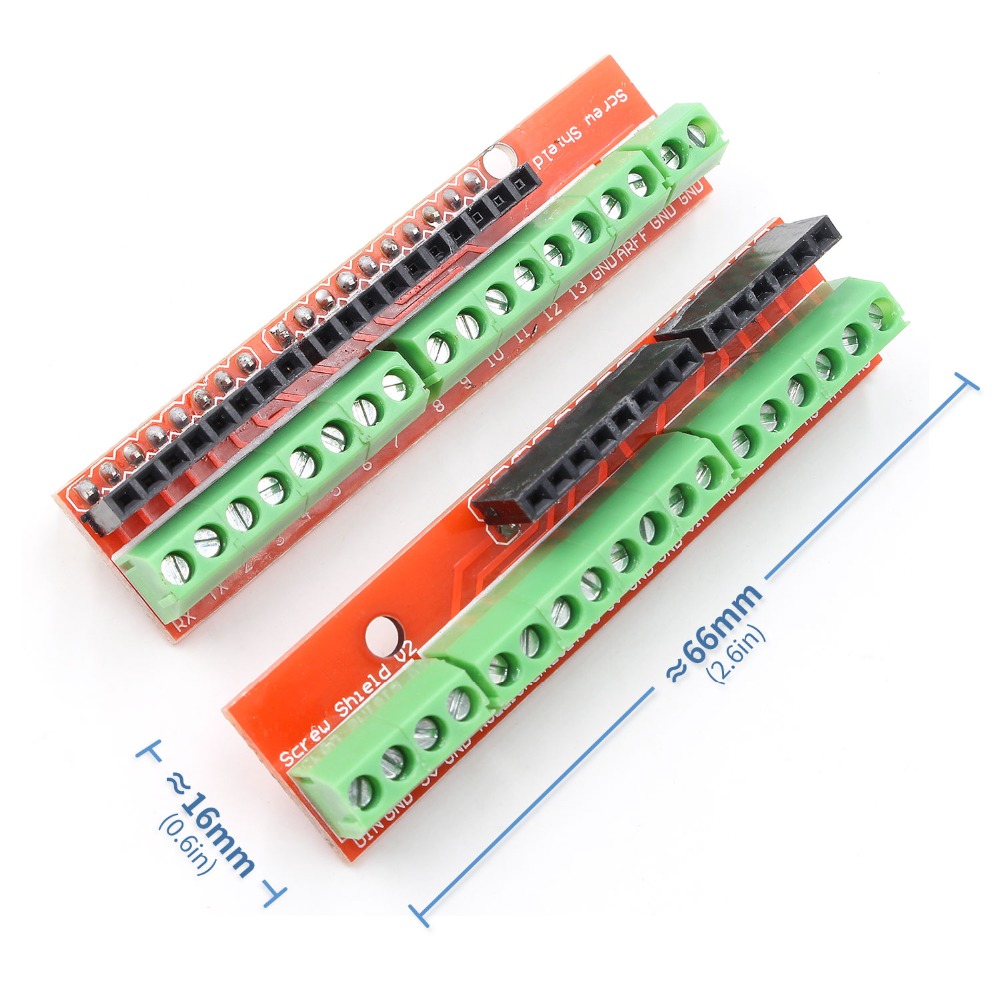

Expansion Board Screw Study Terminal Shield V2

Expansion Board Screw Study Terminal Shield V2

This pair of adapter strips fits directly into the Arduino UNO's sockets, providing durable screw-terminal connections to all pins. The adapter can be sandwiched between the UNO board and another shield using standard stacking headers. It includes duplicate voltage and ground connections, making it a practical and creative solution for various wiring needs.

The shield extends like two wings on either side of the Arduino UNO, offering a simple, versatile, and cost-effective way to connect bare wires without needing special crimp pins or housings. It is primarily designed for the Arduino UNO R3 but also works with Arduino UNO and UNO R2 boards. The two additional pins on the R3 version protrude but remain unconnected on older versions. To prevent accidental shorts or damage when using UNO or UNO R2, it is advised to cover the unused pins with electrical tape or heat-shrink tubing.

Package Includes:

  • 1 x Full Terminal Block Extension Board

34.65 AED 34.65 AED Tax Included
34.65 AED Tax Included

Not Available For Sale

This combination does not exist.

Expansion for Uno
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Color: Red
  • Compatibility: Arduino UNO R3, Arduino UNO, Arduino UNO R2
  • Connection Type: I/O Screw Terminals
  • Plug Type: Direct Plug-in
  • Materials: Metal and Plastic
