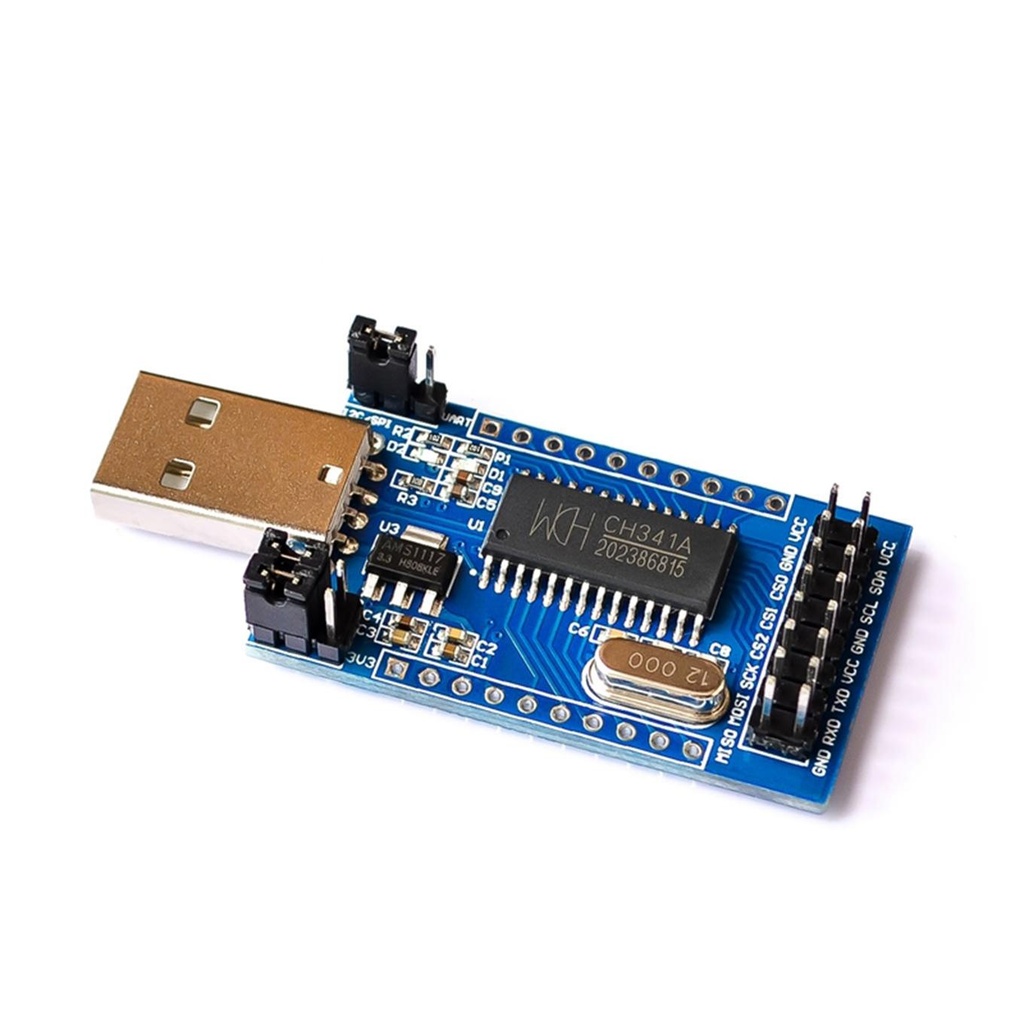

USB To TTL Converter UART IIC SPI ISP EPP/MEM Parallel Port Converter CH341A

USB To TTL Converter UART IIC SPI ISP EPP/MEM Parallel Port Converter CH341A

The CH341A USB conversion module is powered by the CH341A chip, a versatile USB bus adapter chip known for its multi-functional capabilities. This module supports a broad range of applications including serial communication, EEPROM and FLASH programming, STC microcontroller programming, debugging, and data acquisition.
24.95 AED 24.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • USB to Parallel Printer Port: Supports USB to parallel printer conversion, compatible with both EPP and MEM parallel ports.
  • USB to UART, I2C, SPI Interfaces: Enables communication through UART, I2C, and SPI interfaces. Signal level and voltage (3.3V or 5V) are selectable via jumpers.
  • Status Indicator Lights: Features clear status indicator LEDs for UART (D2 - blue) and SPI/I2C (D1 - red) to show active communication modes.
  • Compact Hardware: Small 45 x 27 mm PCB size, making it ideal for embedded and compact applications.

Pinout:

  • UART Interface: VCC, RXD, TXD, GND
  • I2C Interface: VCC, SDA, SCL, GND
  • SPI Interface: MISO, MOSI, SCK, CS2, CS1, CS0, GND, VCC
  • Parallel Printer and EPP/MEM Port: 10P 2.54mm pin header for configurable print or EPP/MEM functionality (refer to datasheet/manual for pin mapping)

Operating Modes:

  • UART Mode: Insert jumper cap to the right of the USB port. The D2 (blue) LED lights up to indicate UART mode.
  • I2C/SPI Mode: Move jumper to the I2C/SPI setting. The D1 (red) LED illuminates to indicate active SPI/I2C communication.
  • EPP/MEM Parallel Mode: Remove jumper caps and use the SDA and SCL pins for parallel communication setup.
  • Voltage Selection: Choose between 3.3V and 5V output levels using the two jumper caps on the left side of the USB connector.
