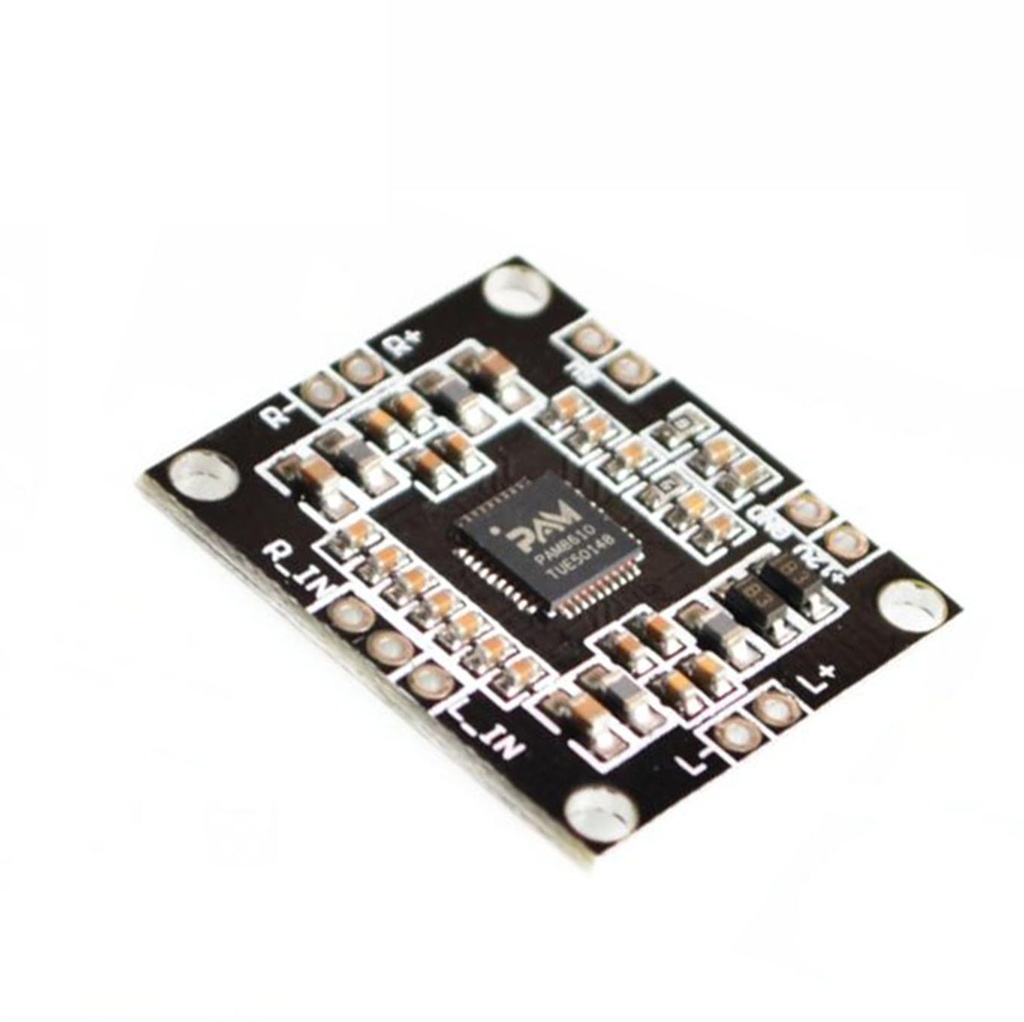

Audio Amplifier Module 2x 15w Dual channel Stereo Mini Class D Power Pam8610
The PAM8610 Digital Power Amplifier Board is a compact and efficient Class D stereo amplifier. It can drive:
- 2 × 15W into 4Ω speakers
- 2 × 10W into 8Ω speakers
It operates with a wide input voltage range from DC 6V to 15V, but the recommended operating voltage is 12V DC (2A max). The module features a built-in self-protection mechanism and is suitable for embedded applications due to its small size of 3cm x 2.5cm. A convenient feature allows muting the amplifier by connecting a switch to the SW short pin.
Specifications:
- Working Mode: Class D (PWM modulation type)
- Chip Type: PAM8610
- Power Range: DC 6V–15V (self-protection)
- Recommended Voltage: DC 12V (2A)
- Output Power: 15W x 2 (4Ω) or 10W x 2 (8Ω)
- Frequency Response: 20Hz–15kHz
- Static Current: 20mA (at 12V)
- Signal-to-Noise Ratio (SNR): 90%
- Recommended Speakers: 10–100W
- Input Impedance: 15KΩ
- Output Impedance: 4–8Ω
- Harmonic Distortion: <0.1%
- Size: Approx. 3cm x 2.5cm (1.19″ x 0.98″)
