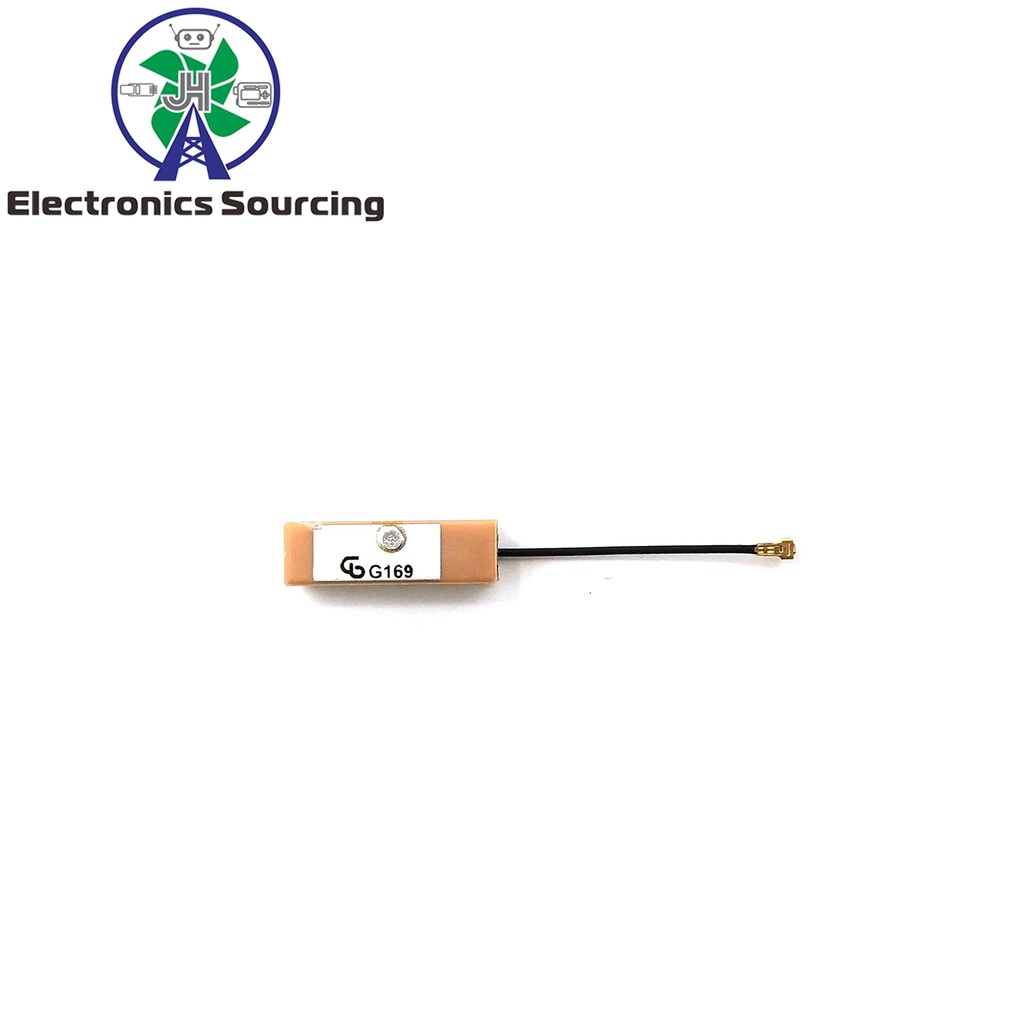

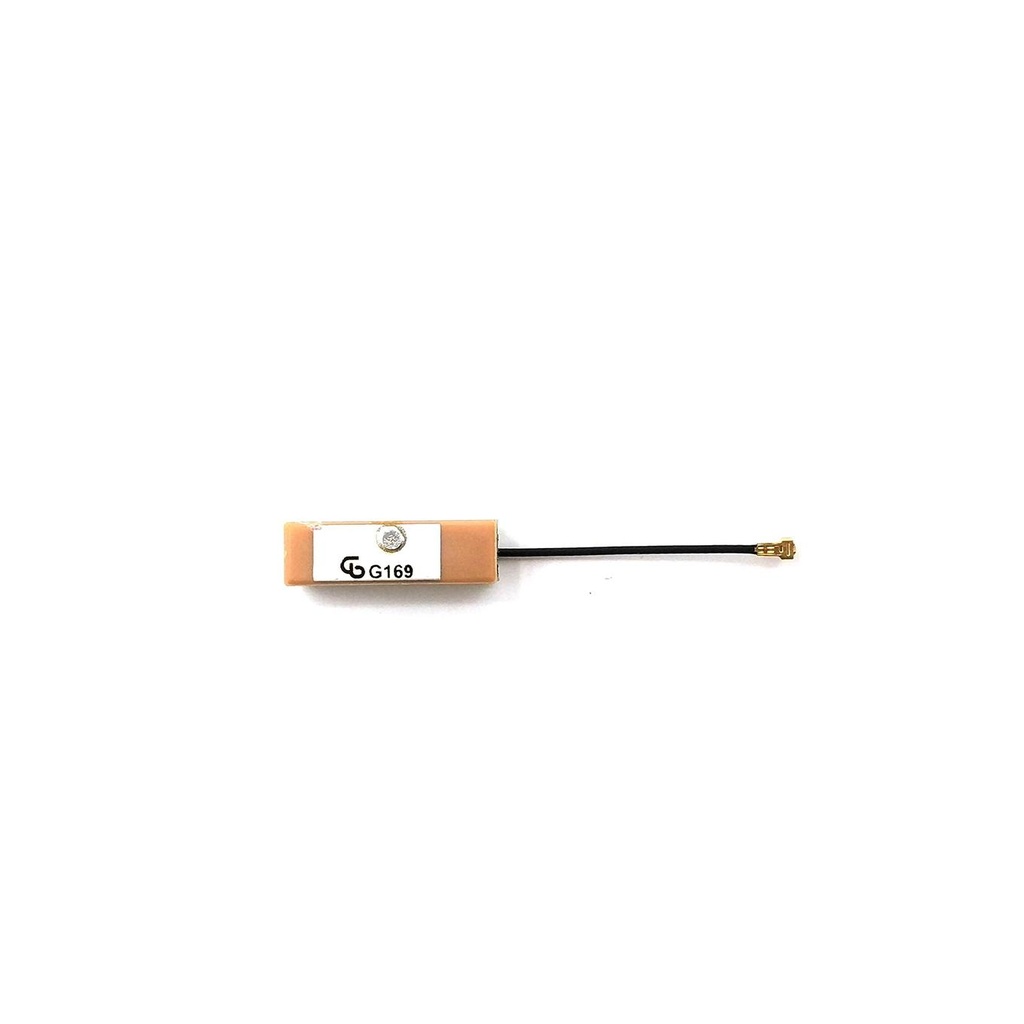

Antenna Active Ceramic IPEX 1575MHz GPS Arial

Features

• Active Antenna Design: Unlike passive antennas, an active antenna includes a Low Noise Amplifier (LNA) to boost the weak GPS signals. This results in improved sensitivity and better performance, especially in challenging environments or with longer cable runs.
• Ceramic Antenna Element: Utilizes a ceramic patch antenna, known for its small size, stable performance, and good efficiency in GPS frequency bands.
• Compact Size: With dimensions of just 20mm x 4mm x 6mm, this antenna is incredibly small, making it suitable for integration into miniature devices where space is a critical constraint.
• IPX/IPEX Interface: The common IPX/IPEX connector ensures easy and secure connection to a wide range of GPS modules, including the popular NEO-6M, which typically features a matching U.FL connector.
• Optimized Frequencies: Designed for the 1561 MHz (L5 band, though less common for consumer GPS) and 1575.42 MHz (L1 band, standard GPS frequency), ensuring compatibility with global positioning systems.
• Low Profile: The compact size and short 2.5cm cable length allow for discreet and integrated placement within your project enclosure.

Specifications

Applications

This GPS active antenna is an excellent choice for projects requiring precise and reliable positioning in a compact form factor. Its typical applications include:

• Air Model Positioning: Ideal for drones, RC planes, and other unmanned aerial vehicles (UAVs) where minimal weight and size are crucial.
• Smart Wearables: Perfect for smartwatches, fitness trackers, and other wearable devices that incorporate GPS functionality for navigation or activity tracking.
• Small-Size Locators: Suited for miniature tracking devices used for assets, pets, or personal safety.
• Compact IoT Devices: Any Internet of Things (IoT) application requiring location awareness in a small enclosure.
• Custom GPS Modules: For hobbyists and developers building their own GPS-enabled projects with boards like the NEO-6M.
