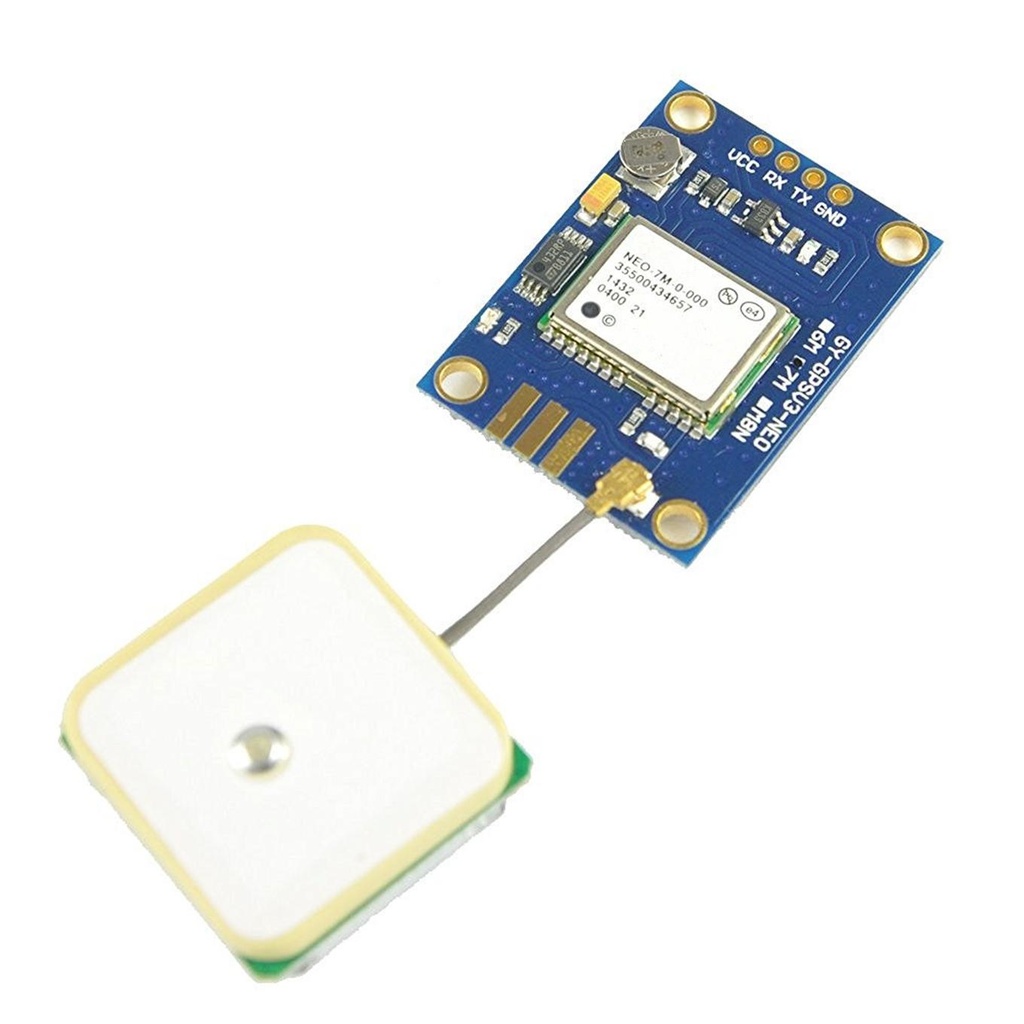

GPS NEO-7M GYGPSV1-7M Module

GPS NEO-7M GYGPSV1-7M Module

The NEO-7M GPS module is a high-precision navigation solution utilizing GNSS-based precise point positioning technology. With exceptional sensitivity and low power consumption, it is ideal for a wide range of GPS-enabled applications. It includes a high-performance ceramic antenna, onboard voltage regulation, and is compatible with both 3V and 5V systems. The module supports multiple satellite systems and is easy to integrate with popular development boards.
64.00 AED 64.00 AED Tax Included
64.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Features

  • GNSS Technology: Provides accurate location data using precise point positioning.
  • Universal Power Supply: Operates with 3V to 5V input, includes onboard voltage regulation.
  • Ceramic Edged Antenna: High-performance ceramic antenna enhances signal reception.
  • Low Power Consumption: Energy-efficient design for extended operation time.
  • Serial Output: Standard UART output with logic-level signals.
  • Data Backup Battery: Retains GPS data for faster startup.
  • LED Signal Indicator: Shows GPS lock and power status.
  • Baud Rate: Default set to 9600 bps for easy communication setup.
  • Installation: Includes 3mm aperture for convenient mounting.
  • Wide Compatibility: Works with Arduino, Raspberry Pi, ESP32, ESP8266, and other microcontrollers.
  • Flight Control Ready: Suitable for use with flight controllers and GPS diagnostic software.

Specifications

  • Model: GYGPSV1-7M
  • Antenna Size: 25×25 mm
  • Operating Voltage: 3V–5V DC (5V recommended for onboard 3.3V regulation)
  • Communication Protocol: UART (Serial)
  • Data Format: NMEA 0183
  • Satellite Systems: GPS, GLONASS, BeiDou, Galileo
  • Update Rate: Up to 10 Hz
  • Position Accuracy: < 2.5 meters (typical)
  • TTFF (Time to First Fix):
    • Cold Start: < 30 seconds
    • Warm Start: < 28 seconds
    • Hot Start: < 1 second
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +105°C
  • Dimensions: Compact and lightweight design
  • Backup Battery: Included for faster satellite acquisition
  • LED Indicator: Status indication for satellite lock and power
  • Mounting: 3mm hole for easy installation
  • Compatibility: Arduino, Raspberry Pi, ESP32, ESP8266, and more

Resources

  • Refer to the U-BLOX setup guide for configuration instructions.
  • See the NEO-7M datasheet for detailed technical information.
