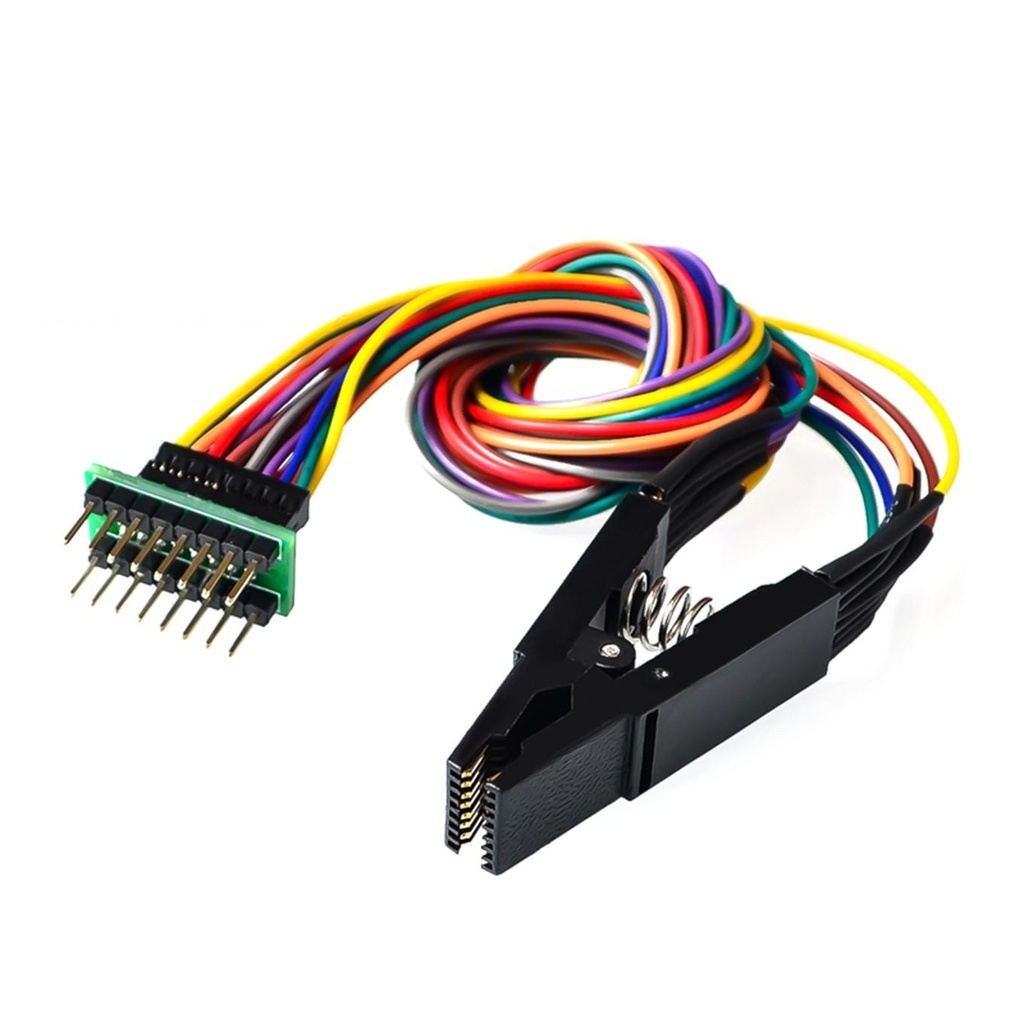

Programmer Testing Clip Welded Wire and Plate SOP16 to DIP8

Programmer Testing Clip Welded Wire and Plate SOP16 to DIP8

The SOP16 IC Test Clip is a reliable and easy-to-use solution designed for testing and programming 25-series SOP16 chips, including both wide and narrow body formats (150MIL to 300MIL). This clip is ideal for test repairs, firmware upgrades, or data extraction, especially in situations where frequent chip removal may cause damage to the motherboard or the chip.

Package Includes

  • 1 x SOP16 IC Test Clip
  • 1 x Cable
  • 1 x Adapter Board

35.00 AED 35.00 AED Tax Included
35.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Easy to Use: Simple and efficient clamp design allows for quick chip access without complex disassembly.
  • EEPROM Support: Compatible with a wide range of 150MIL–300MIL SOP16 EEPROM chips.

Specifications

  • Chip Compatibility: 150MIL–300MIL SOP16
  • Pin Pitch: 1.27mm
  • Operating Voltage: Requires 3.3V for proper operation with protected programmers
  • Connection Method:
    - Clip clamps directly onto the SOP16 chip
    - Apply 3.3V to the pin corresponding to Pin 8 of the chip
    - 3.3V power typically includes two wires: VCC (connected to clip’s Pin 8) and GND

Applications

  • EEPROM Programming: Supports many EEPROMs in the 24/25/93 series
  • Universal Adapter: Works as a SOIC8/16, SOP8/16 universal adapter for flash ICs
  • In-Circuit Programming: Especially suited for in-circuit access to 25CXX series chips
  • Programmer Compatibility: Compatible with RT809F, TL866Cs, TL866A, and many other common programmers
